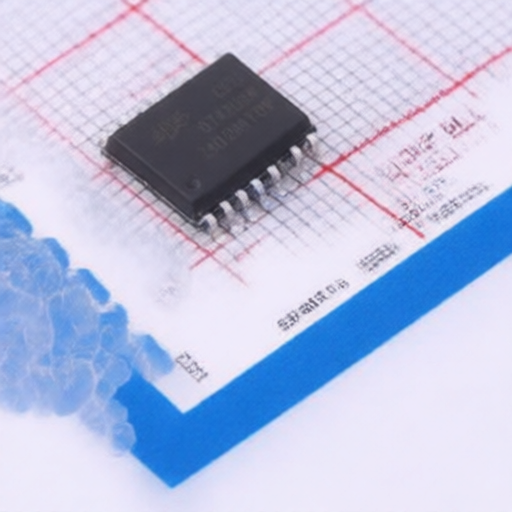

Four channel universal digital isolator coileasy CEU8742U0W with chip level micro transformer signal transmission
Four channel universal digital isolator coileasy CEU8742U0W with chip level micro transformer signal transmission
Specifications
CMTI(kV/us) :
200kV/us
Propagation Delay(tpd) :
13.5ns
Voltage - Supply :
3V~5.5V;3V~5.5V
Default Output :
Low Level
Number of Forward Channels :
2
Number of Reverse Channels :
2
Operating Temperature :
-40℃~+125℃
Description :
Digital Isolator 5700Vrms Forward 2 Channel Reverse 2 Channel 100Mbps 200kV/us CMTI SOP-16-300mil
Mfr. Part # :
CEU8742U0W
Model Number :
CEU8742U0W
Package :
SOP-16-300mil
Description

Product Description

The CEU8742U1W/CEU8742U0W are high-speed, high-reliability, four-channel, magnetically isolated universal digital isolators. They meet a 5.7 kVrms isolation withstand voltage rating under UL-1577 standard and utilize a wide-body SOW-16 package. These isolators transmit signals using chip-level micro-transformers and proprietary AdaptivePulse modulation/demodulation technology, balancing the timing accuracy of edge modulation with the robustness of On-Off Keying (OOK) modulation. They offer a typical signal transmission delay of less than 10 ns and a common-mode transient immunity of 200 kV/s. The devices include 2 forward and 2 reverse signal channels. The CEU8742U1W/CEU8742U0W provide power-down protection; when the input is powered down or floating, the CEU8742U1W defaults to a high output level, while the CEU8742U0W defaults to a low output level. Applications include smart meters, industrial automation, home appliances, and isolated data buses.

Product Attributes

  • Brand: (Xianyi Technology)
  • Certifications: UL-1577 (5.7 kVRMS withstand), CQC GB4943.1-2011, GB/T 17626.3-2006, IEC61000-4-3, GB/T17626.8, IEC61000-4-8, EIA/JESD78

Technical Specifications

ParameterCEU8742U1WCEU8742U0WUnit
Data Rate0-1000-100Mbps
Isolation Withstand Voltage5.7 kVRMS5.7 kVRMS
Typical Transmission Delay<10<10ns
Common-mode Transient Immunity200200kV/s
Supply Voltage (VCC1, VCC2)3.0 to 5.53.0 to 5.5V
Operating Temperature Range-40 to +125-40 to +125C
PackageSOW-16 (Wide Body)SOW-16 (Wide Body)
Default Output Level (Power Down/Floating Input)HighLow
Typical Power Consumption (per channel @ 1Mbps)1.9 mA1.9 mA
Package Dimensions (Nominal)10.3 x 7.510.3 x 7.5mm
ESD Rating (HBM, across isolation barrier)>6000>6000V

2408061021_coileasy-CEU8742U0W_C37648301.pdf
