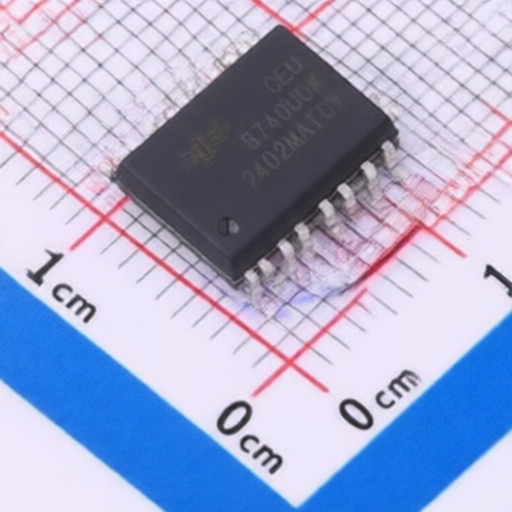

Digital isolators coileasy CEU8740U0W with chip level micro transformers and 5.7 kVrms isolation voltage rating
Digital isolators coileasy CEU8740U0W with chip level micro transformers and 5.7 kVrms isolation voltage rating
Specifications
CMTI(kV/us) :
200kV/us
Voltage - Supply :
3V~5.5V;3V~5.5V
Default Output :
Low Level
Number of Forward Channels :
4
Operating Temperature :
-40℃~+125℃
Description :
Digital Isolator 5700Vrms Forward 4 Channel 100Mbps 200kV/us CMTI SOP-16-300mil
Mfr. Part # :
CEU8740U0W
Model Number :
CEU8740U0W
Package :
SOP-16-300mil
Description

Product Description

The CEU8740U1W/CEU8740U0W are high-speed, high-reliability, four-channel, magnetically isolated universal digital isolators. They meet the 5.7 kVrms isolation withstand voltage rating under UL-1577 standard and utilize a wide-body SOW-16 package. These isolators employ chip-level micro-transformers and proprietary AdaptivePulse modulation/demodulation technology for signal transmission, balancing the timing precision of edge modulation with the robustness of On-Off Keying (OOK) modulation. They offer a typical signal transmission delay of less than 10 ns and a common-mode transient immunity of 200 kV/s. The CEU8740U1W/CEU8740U0W include 4 forward signal channels and 0 reverse signal channels. They provide power-down protection: CEU8740U1W defaults to a high output level, and CEU8740U0W defaults to a low output level when the input is powered down or floating. Applications include smart meters, industrial automation, home appliances, and isolated data buses.

Product Attributes

  • Brand: LineEase Technology
  • Certifications: UL-1577 (5.7 kVRMS), CQC (GB4943.1-2011), Radiated Immunity (GB/T 17626.3-2006, IEC61000-4-3), Power Frequency Magnetic Field Immunity (GB/T17626.8, IEC61000-4-8), Latch-up Test (EIA/JESD78)

Technical Specifications

ParameterCEU8740U1WCEU8740U0WUnit
Data Rate0-100Mbps
Supply Voltage3.0 to 5.5V
Typical Transmission Delay< 10ns
Isolation Withstand Voltage5.7kVrms
Common-Mode Transient Immunity200kV/s
PackageSOW-16 (Wide Body)
Default Output LevelHighLow
Typical Quiescent Current per Channel (@1Mbps)1.9mA
Operating Temperature Range -40 to +125C
Package Dimensions (Nominal)10.3 x 7.5mm
Pin Count16

2408061022_coileasy-CEU8740U0W_C37648297.pdf
