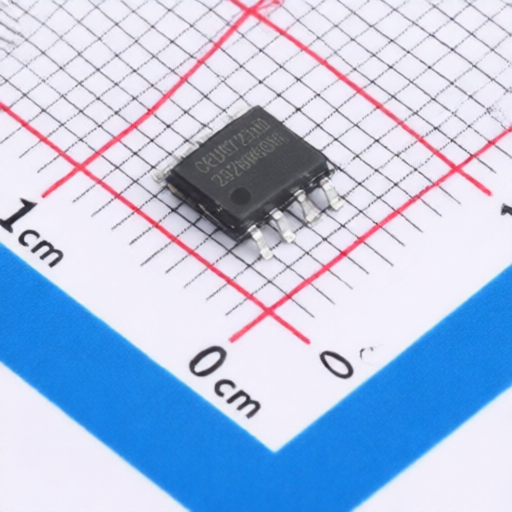

High speed dual channel digital isolator coileasy CEU8722N0 with 3 kilovolt rms isolation and consumption
High speed dual channel digital isolator coileasy CEU8722N0 with 3 kilovolt rms isolation and consumption
Specifications
CMTI(kV/us) :
200kV/us
Propagation Delay(tpd) :
11.9ns
Voltage - Supply :
3V~5.5V;3V~5.5V
Default Output :
Low Level
Number of Forward Channels :
1
Number of Reverse Channels :
1
Operating Temperature :
-40℃~+125℃
Description :
Digital Isolator 3000Vrms Forward 1 Channel Reverse 1 Channel 100Mbps 200kV/us CMTI SOP-8L
Mfr. Part # :
CEU8722N0
Model Number :
CEU8722N0
Package :
SOP-8L
Description

Product Overview

The CEU8722N1/CEU8722N0 series are high-speed, high-reliability dual-channel magnetically isolated universal digital isolators, meeting UL-1577 standard with 3.0 kVRMS isolation withstand voltage. Utilizing chip-scale micro-transformers and proprietary AdaptivePulse modulation/demodulation technology for signal transmission, they balance edge modulation's timing accuracy with OOK modulation's robustness. These devices feature one forward and one reverse signal channel, with a typical signal transmission delay of less than 9 ns. The series offers power-down protection: CEU8722N1 defaults to a high output level, and CEU8722N0 defaults to a low output level when input power is lost or floating.

Product Attributes

  • Brand: LineEase Technology
  • Certifications: UL-1577 (3.0 kVRMS), CQC (GB4943.1-2011), Radiated Immunity (GB/T 17626.3-2006, IEC61000-4-3), Power Frequency Magnetic Field Immunity (GB/T17626.8, IEC61000-4-8), Latch-up Test (EIA/JESD78)

Product Features

  • Data Rate: 0-100Mbps
  • Ultra-low Power Consumption: Typically 1.7 mA per channel @ 1Mbps
  • Typical Transmission Delay: < 9 ns
  • Input Voltage Range: 3.0 V to 5.5 V
  • Operating Temperature Range: -40 C to +125 C
  • Isolation Withstand Voltage: 3.0 kVrms
  • Common-Mode Transient Immunity: 200 kV/s
  • Package: SOP-8L (150 mil)
  • Selectable Default Output Level

Product Applications

  • Smart Meters
  • Industrial Automation
  • Home Appliances
  • Isolated Data Buses

Technical Specifications

ParameterCEU8722N1/CEU8722N0Unit
Absolute Maximum Ratings
VCC1, VCC2 Supply Voltage-0.5 to 5.5V
I/O Pin (INx, OUTx) Voltage-0.5 to VCC + 0.5V
Output Current-15 to 15mA
ESD Ratings
Human Body Model (HBM) - Single Side 8000V
Human Body Model (HBM) - Across Isolation Barrier> 6000V
Recommended Operating Conditions
VCC1, VCC2 Supply Voltage3.0 to 5.5V
High-Level Input Voltage (VIH)0.7VCCI to VCCIV
Low-Level Input Voltage (VIL)0 to 0.3VCCIV
Data Rate0 to 100Mbps
Ambient Temperature (TA)-40 to 125C
Common-Mode Transient Immunity (CMTI)0 to 200kV/s
Electrical Characteristics at 3.3 V (10%)
High-Level Output Voltage (VOH), IOH = -4mA3.2 (typ.)V
Low-Level Output Voltage (VOL), IOL = 4mA0.1 (typ.)V
High-Level Input Current (IIH), VIH=VCCI at INx0 (CEU8722N1), 6.6 (CEU8722N0) (typ.)A
Low-Level Input Current (IIL), VIL=0 at INx-6.6 (CEU8722N1), 0 (CEU8722N0) (typ.)A
Supply Current (ICC1/ICC2) @ 1Mbps, CL=15pF1.4 (typ.)mA
Supply Current (ICC1/ICC2) @ 1Mbps, CL=0pF1.3/1.4 (typ.)mA
Supply Current (ICC1/ICC2) @ 10Mbps, CL=15pF3.0/2.9 (typ.)mA
Supply Current (ICC1/ICC2) @ 10Mbps, CL=0pF2.7 (typ.)mA
Supply Current (ICC1/ICC2) @ 100Mbps, CL=15pF24 (typ.)mA
Supply Current (ICC1/ICC2) @ 100Mbps, CL=0pF22/20.6 (typ.)mA
Electrical Characteristics at 5.0 V (10%)
High-Level Output Voltage (VOH), IOH = -4mA4.9 (typ.)V
Low-Level Output Voltage (VOL), IOL = 4mA0.1 (typ.)V
High-Level Input Current (IIH), VIH=VCCI at INx0 (CEU8722N1), 10 (CEU8722N0) (typ.)A
Low-Level Input Current (IIL), VIL=0 at INx-10 (CEU8722N1), 0 (CEU8722N0) (typ.)A
Supply Current (ICC1/ICC2) @ 1Mbps, CL=15pF1.6/1.7 (typ.)mA
Supply Current (ICC1/ICC2) @ 1Mbps, CL=0pF1.6 (typ.)mA
Supply Current (ICC1/ICC2) @ 10Mbps, CL=15pF4.7/4.6 (typ.)mA
Supply Current (ICC1/ICC2) @ 10Mbps, CL=0pF4.3/4.2 (typ.)mA
Supply Current (ICC1/ICC2) @ 100Mbps, CL=15pF38 (typ.)mA
Supply Current (ICC1/ICC2) @ 100Mbps, CL=0pF34/33 (typ.)mA
Switching Characteristics at 3.3 V Supply
Propagation Delay (tPLH)11.9 (typ.)ns
Propagation Delay (tPHL)12.0 (typ.)ns
Jitter (p-p)0.9 (typ.)ns
Output Rise Time (tr)2.7 (typ.)ns
Output Fall Time (tf)2.8 (typ.)ns
Switching Characteristics at 5.0 V Supply
Propagation Delay (tPLH)8.3 (typ.)ns
Propagation Delay (tPHL)8.5 (typ.)ns
Jitter (p-p)0.9 (typ.)ns
Output Rise Time (tr)2.2 (typ.)ns
Output Fall Time (tf)2.4 (typ.)ns
Package Information
Package TypeSOP-8L (150 mil)
Package Dimensions (Nominal)4.9 x 3.9mm
Pins per Reel2500

2408061023_coileasy-CEU8722N0_C37648288.pdf
