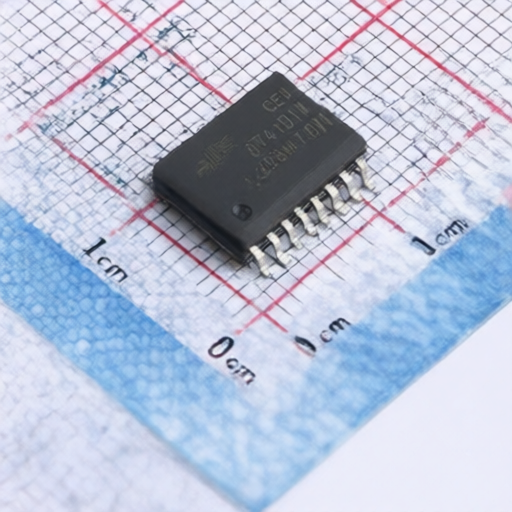

High speed four channel digital isolators coileasy CEU8741U1W with adaptive pulse modulation and wide body SOW 16 package
High speed four channel digital isolators coileasy CEU8741U1W with adaptive pulse modulation and wide body SOW 16 package
Specifications
CMTI(kV/us) :
200kV/us
Voltage - Supply :
3V~5.5V;3V~5.5V
Default Output :
High Level
Number of Forward Channels :
3
Number of Reverse Channels :
1
Operating Temperature :
-40℃~+125℃
Description :
Digital Isolator 5700Vrms Forward 3 Channel Reverse 1 Channel 100Mbps 200kV/us CMTI SOP-16-300mil
Mfr. Part # :
CEU8741U1W
Model Number :
CEU8741U1W
Package :
SOP-16-300mil
Description

Product Description

The CEU8741U1W/CEU8741U0W are high-speed, high-reliability, four-channel, magnetically isolated universal digital isolators. They meet the 5.7 kVrms isolation withstand voltage requirement under UL-1577 standard and utilize a wide-body SOW-16 package. These isolators employ chip-level microtransformers and proprietary AdaptivePulse modulation/demodulation technology for signal transmission, balancing the timing accuracy of edge modulation with the robustness of On-Off Keying (OOK) modulation. They offer a typical signal transmission delay of less than 10 ns and a common-mode transient immunity of 200 kV/s. The CEU8741U1W/CEU8741U0W include 3 forward signal channels and 1 reverse signal channel. They provide a power-down protection function: when the input is powered down or floating, the CEU8741U1W defaults to a high output level, and the CEU8741U0W defaults to a low output level.

Product Features

  • Data Rate: 0-100Mbps
  • Ultra-low Power Consumption: 1.9 mA typical per channel @ 1Mbps
  • Typical Transmission Delay: Less than 10 ns
  • Input Voltage Range: 3.0 V to 5.5 V
  • Operating Temperature Range: -40 C to +125 C
  • Isolation Withstand Voltage: 5.7 kVrms
  • Common-Mode Transient Immunity: 200 kV/s
  • SOW-16 Package (Wide Body)
  • Selectable Default Output Level

Product Applications

  • Smart Meters
  • Industrial Automation
  • Home Appliances
  • Isolated Data Buses

Product Attributes

  • Brand: LineEasy Technology
  • Certifications: UL-1577 (5.7 kVRMS withstand voltage for 1 minute), CQC (GB4943.1-2011), Radiated Immunity (GB/T 17626.3-2006 and IEC61000-4-3, >10V/m), Power Frequency Magnetic Field Immunity (GB/T17626.8, IEC61000-4-8, better than Grade 5), Latch-up Test (EIA/JESD78)

Technical Specifications

ParameterModelMinTypicalMaxUnitConditions
Supply Voltage (VCC1, VCC2)CEU8741U1W/U0W-0.55.5VAbsolute Rating
Supply Voltage (VCC1, VCC2)CEU8741U1W/U0W3.05.5VRecommended Operating Condition
High-Level Input Voltage (VIH)CEU8741U1W/U0W0.7VCCIVCCIVRecommended Operating Condition
Low-Level Input Voltage (VIL)CEU8741U1W/U0W00.3VCCIVRecommended Operating Condition
Data RateCEU8741U1W/U0W0100MbpsRecommended Operating Condition
Operating TemperatureCEU8741U1W/U0W-4025125CRecommended Operating Condition
Common-Mode Transient Immunity (CMTI)CEU8741U1W/U0W150200kV/sRecommended Operating Condition
High-Level Output Voltage (VOH)CEU8741U1W/U0W3.2 (at 3.3V) / 4.9 (at 5.0V)VIOH = -4mA
Low-Level Output Voltage (VOL)CEU8741U1W/U0W0.1VIOL = 4mA
Supply Current (ICC1)CEU8741U1W4.7 (1Mbps, 15pF) / 9.6 (10Mbps, 15pF) / 84 (100Mbps, 15pF)mA3.3V Supply
Supply Current (ICC2)CEU8741U0W2.3 (1Mbps, 15pF) / 5.4 (10Mbps, 15pF) / 46 (100Mbps, 15pF)mA3.3V Supply
Supply Current (ICC1)CEU8741U1W5.2 (1Mbps, 15pF) / 16.6 (10Mbps, 15pF) / 132 (100Mbps, 15pF)mA5.0V Supply
Supply Current (ICC2)CEU8741U0W2.6 (1Mbps, 15pF) / 8.7 (10Mbps, 15pF) / 70 (100Mbps, 15pF)mA5.0V Supply
Propagation Delay (tPLH)CEU8741U1W/U0W12.012.830.6ns3.3V Supply
Propagation Delay (tPHL)CEU8741U1W/U0W11.712.715.5ns3.3V Supply
Propagation Delay (tPLH)CEU8741U1W/U0W8.59.29.8ns5.0V Supply
Propagation Delay (tPHL)CEU8741U1W/U0W8.99.410.0ns5.0V Supply
Signal Jitter (p-p)CEU8741U1W/U0W1.0 (at 3.3V) / 0.5 (at 5.0V)ns
Output Rise Time (tr)CEU8741U1W/U0W2.12.73.5ns3.3V Supply
Output Fall Time (tf)CEU8741U1W/U0W2.02.65.5ns3.3V Supply
Output Rise Time (tr)CEU8741U1W/U0W1.92.53.4ns5.0V Supply
Output Fall Time (tf)CEU8741U1W/U0W1.72.53.7ns5.0V Supply
PackageCEU8741U1W/U0WSOW-16
Package DimensionsCEU8741U1W/U0W10.37.5mmNominal

2408061021_coileasy-CEU8741U1W_C37648300.pdf
