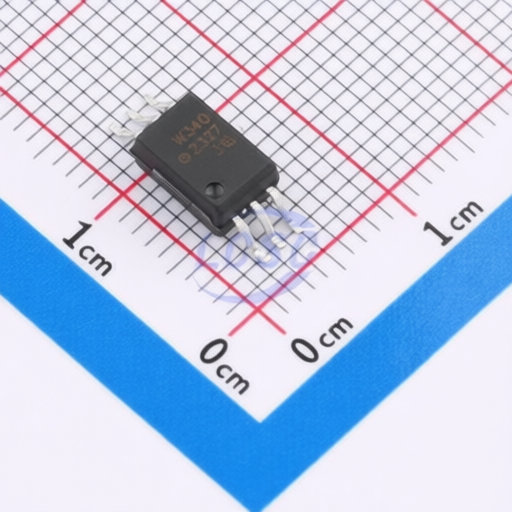

Compact Stretched SO6 Package Broadcom ACPL-W340-500E Optically Isolated Power Output Stage for IGBTs
Compact Stretched SO6 Package Broadcom ACPL-W340-500E Optically Isolated Power Output Stage for IGBTs
Specifications
Power Dissipation :
745mW
Output Current :
1A
Operating Temperature :
-40℃~+105℃
Isolation voltage(Vrms) :
5kV
Propagation Delay(tpd) :
200ns;200ns
Load Type :
MOSFET;IGBT
Voltage - Supply :
15V~30V
CMTI(kV/us) :
35kV/us
Number of Channels :
1
Description :
1A 15V~30V SO-6-6.8mm Isolators - Gate Drivers RoHS
Mfr. Part # :
ACPL-W340-500E
Model Number :
ACPL-W340-500E
Package :
SO-6-6.8mm
Description

Product Overview

The ACPL-P340/W340 is an optically isolated power output stage designed for driving power IGBTs and MOSFETs in motor control inverter applications. It features a high operating voltage range, providing the necessary drive voltages for gate-controlled devices. This optocoupler delivers high peak output current and rail-to-rail output voltage, making it suitable for directly driving IGBTs up to 1200V/50A or for driving discrete power stages for higher-rated IGBTs. Key advantages include a fast switching speed for reduced dead time and improved system efficiency, robust common-mode rejection (CMR) for noisy industrial environments, and integrated Under Voltage Lock-Out (UVLO) protection. The compact Stretched SO6 package facilitates smaller, more efficient designs.

Product Attributes

  • Brand: Broadcom
  • Package Type: Stretched SO6
  • Technology: BCDMOS
  • Certifications: UL Recognized, CSA, IEC/EN/DIN EN 60747-5-5
  • RoHS Compliant: Available

Technical Specifications

Feature ACPL-P340 ACPL-W340 Unit Notes
Maximum Peak Output Current 1.0 A Peak
Minimum Peak Output Current 0.8 A Peak
Maximum Propagation Delay (tPLH/tPHL) 200 ns Max
Maximum Propagation Delay Difference (PDD) 100 ns Max
Minimum Common Mode Rejection (CMR) at VCM = 1500V 35 kV/s Min
Maximum Supply Current (ICC) 3.0 mA Max
Wide Operating VCC Range 15 to 30 V
Industrial Temperature Range 40 to +105 C
UL Recognized Insulation Voltage 3750 VRMS 5000 VRMS V/min for 1 min.
IEC/EN/DIN EN 60747-5-5 VIORM 891 Peak 1140 Peak V
Minimum External Air Gap (Clearance) 7.0 8.0 mm
Minimum External Tracking (Creepage) 8.0 mm
Output Supply Voltage (VCC VEE) 15 to 30 V Recommended Operating Conditions
Input Current (ON) 7 to 16 mA Recommended Operating Conditions
Input Voltage (OFF) 3.6 to +0.8 V Recommended Operating Conditions

2410311230_Broadcom-ACPL-W340-500E_C60056.pdf
