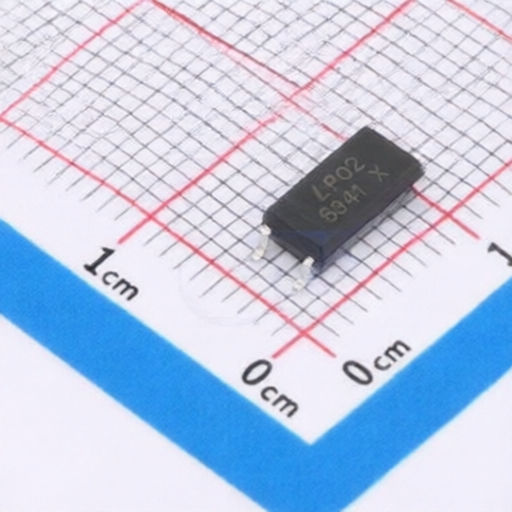

Power supply system photocoupler LITEON LTV-5314-TP1 offering wide temperature range and inverter control
Power supply system photocoupler LITEON LTV-5314-TP1 offering wide temperature range and inverter control
Specifications
Power Dissipation :
-
Output Current :
1.5A
Operating Temperature :
-40℃~+110℃
Isolation voltage(Vrms) :
5kV
Propagation Delay(tpd) :
150ns;150ns
Reverse Voltage :
5V
Load Type :
MOSFET;IGBT
Rise Time :
20ns
Voltage - Supply :
10V~30V
Fall Time :
25ns
Voltage - Forward(Vf) :
1.6V
CMTI(kV/us) :
35kV/us
Number of Channels :
1
Description :
1.5A 5V 20ns 10V~30V 25ns 1.6V SMD-5P Isolators - Gate Drivers RoHS
Mfr. Part # :
LTV-5314-TP1
Model Number :
LTV-5314-TP1
Package :
SMD-5P
Description

Product Description

The LTV-5314 series Photocoupler is designed for driving power IGBTs and MOSFETs in motor control inverter applications and inverters in power supply systems. It features an AlGaAs LED coupled to an integrated circuit with a power output stage, offering rail-to-rail output voltage and guaranteed performance over a wide temperature range (-40C to +110C).

Product Attributes

  • Brand: LITE-ON Technology Corp.
  • Product Line: LTV-5314 series
  • Origin: Taiwan, R.O.C.
  • Certifications: UL1577, IEC/EN/DIN EN 60747-5-5, HALOGEN FREE

Technical Specifications

ParameterSymbolLTV-5314UnitTest ConditionMin.Typ.Max.Note
Absolute Maximum Ratings
Storage TemperatureTstgC-55+125
Operating TemperatureToprC-40+110
Total Output Supply Voltage(VCC VEE)V035
Average Forward Input CurrentIFmA20
Peak Transient Input CurrentIF(TRAN)A1.0Note 1
Reverse Input VoltageVRV5
"High" Peak Output CurrentIOH(PEAK)A1.5Note 2
"Low" Peak Output CurrentIOL(PEAK)A1.5Note 2
Input Power DissipationPImW40
Output IC Power DissipationPOmW450
Recommended Operating Conditions
Supply VoltageVCCV1030
Input Current (ON)IFL(ON)mA310Note 1
Input Voltage (OFF)VF(OFF)V00.8
Operating FrequencyfkHz50
Electrical Optical Characteristics
Input Forward VoltageVFVIF = 10mA1.451.61.8
Input Threshold Current (Low to High)IFLHmAVCC = 10-30 V, VO > 1V154,18
Input Reverse CurrentIRuAVR = 5V10
Input Threshold Voltage (High to Low)VFHLVVCC = 10-30 V, VO < 1V0.8
Input CapacitanceCINpFf = 1 MHz, VF = 0 V33
Output High Level Supply CurrentICCHmAIF = 10 mA, VCC = 30V, VO = Open1.735,6
Low Level Supply CurrentICCLmAIF = 0 mA, VCC = 30V, VO = Open2.03
High level output currentIOHAVO = (VCC 1.5 V)-0.410,16
Low level output currentIOLAVO = (VEE + 1.5 V)1.59,17
High level output voltageVOHVIF = 10mA, IO = -100mAVCC - 0.3VCC - 0.18,14
Low level output voltageVOLVIF = 0mA, IO = 100mAVEE + 0.25VEE + 0.47,15
UVLO ThresholdVUVLO+VVO > 5V, IF = 10 mA6.97.88.719
UVLO ThresholdVUVLO-VVO < 5V, IF = 10 mA5.96.77.5
UVLO HysteresisUVLOHYSV1.1
Switching Specification
Propagation Delay Time to High Output LeveltPLHnsRg = 10, Cg = 25nF, f = 25 kHz, Duty Cycle = 50% IF = 3 to 10 mA, VCC = 10 to 30V VEE = ground509015011,12,13,20
Propagation Delay Time to Low Output LeveltPHLns50110150
Pulse Width DistortionPWDns50
Propagation delay differencePDDns-1001003
Output Rise Time (10 to 90%)Trns2020
Output Fall Time (90 to 10%)Tfns25
Common mode transient immunity at high level output|CMH|kV/sTA = 25C, IF = 5 mA, VCM = 1000 V, VCC = 30 V3021, 1
Common mode transient immunity at low level output|CML|kV/sTA = 25C, VF = 0 V, VCM = 1000 V, VCC = 30 V30

2410121536_LITEON-LTV-5314-TP1_C2944034.pdf
