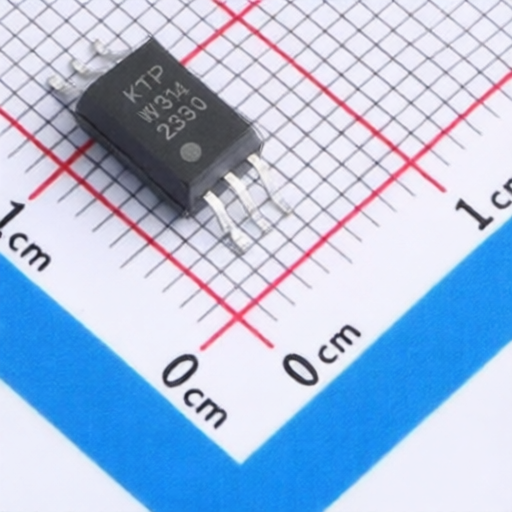

Gate Drive Optocoupler KTP ACPL-W314-C5L0 with Fast Propagation Delay and High Common Mode Rejection
Gate Drive Optocoupler KTP ACPL-W314-C5L0 with Fast Propagation Delay and High Common Mode Rejection
Specifications
Power Dissipation :
-
Output Current :
600mA
Operating Temperature :
-40℃~+100℃
Propagation Delay(tpd) :
700ns;700ns
Isolation voltage(Vrms) :
5kV
Reverse Voltage :
5V
Load Type :
MOSFET;IGBT
Rise Time :
50ns
Voltage - Supply :
10V~30V
Fall Time :
50ns
Voltage - Forward(Vf) :
1.5V
CMTI(kV/us) :
25kV/us
Number of Channels :
1
Description :
600mA 5V 50ns 10V~30V 50ns 1.5V SSOP-6 Isolators - Gate Drivers RoHS
Mfr. Part # :
ACPL-W314-C5L0
Model Number :
ACPL-W314-C5L0
Package :
SSOP-6
Description

ACPL-P314/ACPL-W314 0.6A Output Current Gate Drive Optocoupler

The ACPL-P314/ACPL-W314 are gate drive optocouplers featuring a GaAsP LED coupled to a power output stage IC. They are ideal for driving power IGBTs and MOSFETs in motor control inverter applications, offering high operating voltage for gate control and sufficient output voltage and current for direct drive of medium to small power IGBTs. Key advantages include high-speed response, high common-mode rejection, and a wide operating voltage and temperature range.

Product Attributes

  • Brand: KTP Semiconductor
  • Product Series: ACPL-P314/ACPL-W314
  • Origin: Derived from product marking (YYWW for year and week)

Technical Specifications

Parameter Symbol Min Typical Max Unit Conditions
Output Current (Peak) IOH(PEAK)/IOL(PEAK) 0.4 (Min) 0.6 A Max pulse width=10ms, max duty cycle=0.2%
Propagation Delay (Max) tPLH/tPHL 0.1-0.3 0.7 us Temperature range, 0.7us max transmission delay, Load approx. 1200V/25A IGBT gate
Supply Current (Max) ICC(max) 3 mA
Common Mode Rejection (Min) CMR 25 kV/us VCM=1500V
VCC Operating Range VCC-VEE 10 30 V Entire temperature range
Operating Temperature TA -40 100
Isolation Voltage (RMS) VISO 3750 (ACPL-P314) / 5000 (ACPL-W314) V TA=25, RH<50% for 1 min
High Level Output Voltage VOH VCC-0.2 VCC-0.1 V IO=-100mA, Max pulse width=1ms, max duty cycle=20%
Low Level Output Voltage VOL 0.06 0.2 V IO=100mA
Input Current (ON) IF(ON) 8 12 mA
Input Voltage (OFF) VF(OFF) -3.6 0.8 V
Input Forward Voltage VF 1.2 1.5 1.8 V IF=10mA
Low Voltage Lockout Threshold (Low to High) VUVLO+ 7.9 V IF=10mA, VO>5V
Low Voltage Lockout Threshold (High to Low) VUVLO 7 V IF=10mA, VO<5V
Output Rise Time tR 50 ns Rg=47, Cg=3nF, f=10kHz, Duty Cycle=50%, IF=8mA, VCC=30V
Output Fall Time tF 50 ns Rg=47, Cg=3nF, f=10kHz, Duty Cycle=50%, IF=8mA, VCC=30V

Applications

  • Isolated IGBT/Power MOSFET Gate Drive
  • AC and Brushless DC Motor Drives
  • Industrial Inverters
  • Appliance Inverters
  • Induction Cookers
  • Switch Mode Power Supplies (SPS)
