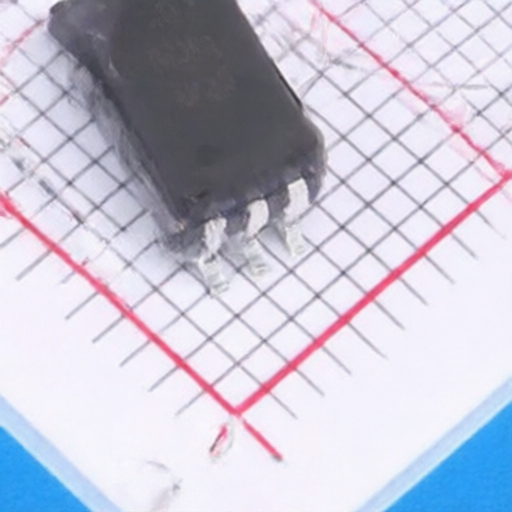

High output current gate drive optocoupler KTP ACPL-P314-C5L0 for motor control inverter applications
High output current gate drive optocoupler KTP ACPL-P314-C5L0 for motor control inverter applications
Specifications
Power Dissipation :
-
Output Current :
600mA
Operating Temperature :
-40℃~+100℃
Isolation voltage(Vrms) :
3.75kV
Propagation Delay(tpd) :
700ns;700ns
Reverse Voltage :
5V
Load Type :
MOSFET;IGBT
Rise Time :
50ns
Voltage - Supply :
10V~30V
Fall Time :
50ns
Voltage - Forward(Vf) :
1.5V
CMTI(kV/us) :
25kV/us
Number of Channels :
1
Description :
600mA 5V 50ns 10V~30V 50ns 1.5V SOP-6 Isolators - Gate Drivers RoHS
Mfr. Part # :
ACPL-P314-C5L0
Model Number :
ACPL-P314-C5L0
Package :
SOP-6
Description

Product Overview

The ACPL-P314/ACPL-W314 are high-output current gate drive optocouplers designed for driving power IGBTs and MOSFETs in motor control inverter applications. They feature an integrated GaAsP LED and a power output stage, offering high operating voltage and current for direct driving of medium to small power IGBTs. These optocouplers are ideal for applications requiring isolation in IGBT/Power MOSFET gate drives, AC and brushless DC motor drives, industrial and appliance inverters, induction cookers, and switch mode power supplies.

Product Attributes

  • Brand: KTP Semiconductor
  • Model Numbers: ACPL-P314, ACPL-W314
  • Package Type: Stretched SO6

Technical Specifications

ParameterSymbolMinTypMaxUnitConditions
Output CurrentIOH(PEAK) / IOL(PEAK)0.40.6A
Propagation DelaytPLH / tPHL0.10.2 / 0.30.7us
Power Supply VoltageVCC-VEE1030V
Operating TemperatureTA-40100
Isolation VoltageVISO3750 (ACPL-P314) / 5000 (ACPL-W314)VRMSTA=25, RH<50% for 1 min
Common Mode RejectionCMR25kV/usVCM=1500V
Power DissipationPO250mW
Input Current (ON)IF(ON)812mA
Low Voltage Lockout ThresholdVUVLO / VUVLO+7 / 7.9V

2402231626_KTP-ACPL-P314-C5L0_C20612453.pdf
