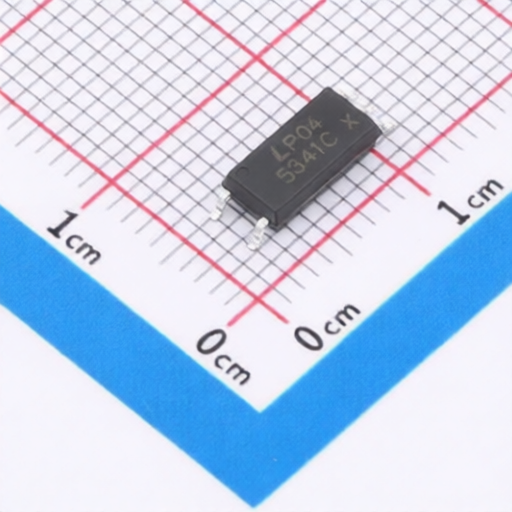

Power IGBT and MOSFET driver LITEON LTV-5341C-TP1 photocoupler with wide temperature operation range
Power IGBT and MOSFET driver LITEON LTV-5341C-TP1 photocoupler with wide temperature operation range
Specifications
Power Dissipation :
450mW
Output Current :
3A
Operating Temperature :
-40℃~+110℃
Isolation voltage(Vrms) :
6kV
Propagation Delay(tpd) :
150ns;150ns
Load Type :
IGBT;MOSFET
Voltage - Supply :
15V~30V
Rise Time :
10ns
Fall Time :
10ns
Voltage - Forward(Vf) :
1.6V
CMTI(kV/us) :
30kV/us
Description :
3A 15V~30V 10ns 10ns 1.6V SOP-5-300mil Isolators - Gate Drivers RoHS
Mfr. Part # :
LTV-5341C-TP1
Model Number :
LTV-5341C-TP1
Package :
SOP-5-300mil
Description

Product Overview

The LTV-5341 series Photocoupler is designed for driving power IGBTs and MOSFETs in motor control inverters and power supply systems. It features an AlGaAs LED coupled to an integrated circuit with a power output stage, offering rail-to-rail output voltage and Under Voltage Lock-Out (UVLO) protection. Its operational parameters are guaranteed across a wide temperature range of -40C to +110C.

Product Attributes

  • Brand: LITE-ON
  • Certifications: UL1577, IEC/EN/DIN EN 60747-5-5

Technical Specifications

ParameterSymbolMin.Typ.Max.UnitTest ConditionFigureNote
Absolute Maximum Ratings
Storage TemperatureTstg-55+125C
Operating TemperatureTopr-40+110C
Total Output Supply Voltage (VCC VEE)035V
Average Forward Input CurrentIF20mA
Peak Transient Input CurrentIF(TRAN)1.0APulse width (PW) 1 s, 300 pps1
High Peak Output CurrentIOH(PEAK)3.0A2
Low Peak Output CurrentIOL(PEAK)3.0AExponential waveform. Pulse width 0.3 s, f 15 kHz2
Output Voltage (PEAK)VO(PEAK)VCCV
Input Power DissipationPI40mW
Output IC Power DissipationPO450mW
Lead Solder TemperatureTsol260C
Recommended Operating Conditions
Supply VoltageVCC1530V
Input Current (ON)IFL(ON)310mAThe rise and fall times of the input on-current should be less than 0.5 s1
Input Voltage (OFF)VF(OFF)00.8V
Peak Low-Level Output CurrentIOPH-2.5A
Peak Low-Level Output CurrentIOPL2.5A
Operating Frequencyf50kHz
Electrical Optical Characteristics
Input Forward VoltageVF1.41.61.8VIF = 10mA1
Input Forward Voltage Temperature CoefficientVF/ T-2.0mV/OCIF = 10mA
Input Threshold Current (Low to High)IFLH0.82.5mAVCC = 15-30 V, VO > 1V4,16
Input Threshold Voltage (High to Low)VFHL0.8VVCC = 15-30 V, VO < 1V
Input CapacitanceCIN33pFf = 1 MHz, VF = 0 V
Output High Level Supply CurrentICCH1.63mAIF = 10 mA, VCC = 30V, VO = Open5,6
Low Level Supply CurrentICCL2.03mAIF = 0 mA, VCC = 30V, VO = Open
High level output currentIOH-1.0AVO = (VCC 1.5 V)8,141
-2.5AVO = (VCC 4 V)2
Low level output currentIOL1.0AVO = (VEE + 1.5 V)7,151
2.5AVO = (VEE + 4 V)2
High level output voltageVOHVCC - 0.3VCC - 0.1VIF = 10mA, IO = -100mA6,12
Low level output voltageVOLVEE + 0.25VEE + 0.4VIF = 0mA, IO = 100mA5,13
UVLO ThresholdVUVLO+11.012.513.5VVO > 5V, IF = 10 mA17
VUVLO-9.511.112.0VVO < 5V, IF = 10 mA
UVLO HysteresisUVLOHYS1.5V
Switching Specification
Propagation Delay Time to High Output LeveltPLH90150nsRg = 20, Cg = 10nF, f = 25 kHz, Duty Cycle = 50% IF = 3 to 10 mA, VCC = 15 to 30V VEE = ground9,10,11, 18
Propagation Delay Time to Low Output LeveltPHL110150
Pulse Width DistortionPWD50
Propagation delay skewtPSK-1001003The difference between tPHL and tPLH between any two parts series parts under same test conditions.3
Output Rise Time (10 to 90%)Tr1018
Output Fall Time (90 to 10%)Tf10
Common mode transient immunity at high level output|CMH|30kV/sTA = 25C, IF = 5 mA, VCM = 1000 V, VCC = 30 V191
Common mode transient immunity at low level output|CML|30kV/sTA = 25C, VF = 0 V, VCM = 1000 V, VCC = 30 V2

2504231158_LITEON-LTV-5341C-TP1_C48542909.pdf
