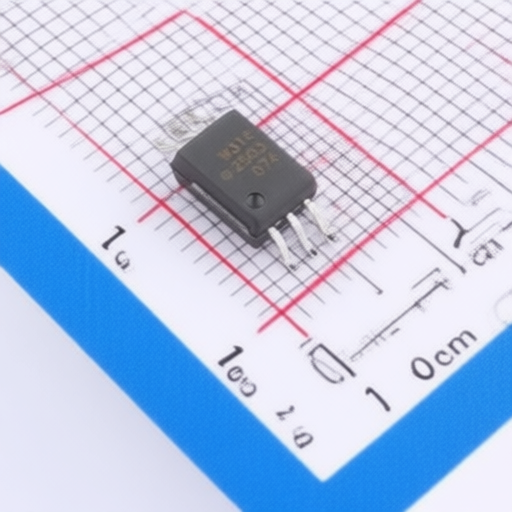

High speed optocoupler Broadcom ACPL W314 500E for isolated IGBT and MOSFET gate drive applications
High speed optocoupler Broadcom ACPL W314 500E for isolated IGBT and MOSFET gate drive applications
Specifications
Description :
SO-6 Isolators - Gate Drivers RoHS
Mfr. Part # :
ACPL-W314-500E
Model Number :
ACPL-W314-500E
Package :
SO-6
Description

Product Overview

The Broadcom ACPL-P314/W314 are high-speed optocouplers designed for driving power IGBTs and MOSFETs in motor control inverter applications. Featuring an integrated circuit with a power output stage, these optocouplers provide the necessary drive voltages for gate-controlled devices. Their wide operating voltage and current range make them suitable for directly driving small to medium power IGBTs. Key applications include isolated IGBT/Power MOSFET gate drive, AC and brushless DC motor drives, industrial inverters, home appliance inverters, induction cookers, and switching power supplies.

Product Attributes

  • Brand: Broadcom
  • Certifications: UL1577 recognized, CSA Approved, IEC/EN/DIN EN 60747-5-5 Approved
  • Package Type: Stretched SO-6
  • Material Group: IIIa (DIN VDE 0110, 1/89, Table 1)
  • RoHS Compliant: Available (indicated by -XXXE option)

Technical Specifications

Model Description Specification Value Unit Conditions
ACPL-P314/W314 Maximum Peak Output Current IOH(PEAK) 0.6 A Maximum pulse width = 10 ms, max duty cycle = 0.2%
Minimum Peak Output Current IOL(PEAK) 0.4 A Maximum pulse width = 10 ms, max duty cycle = 0.2%
Maximum Propagation Delay tPLH / tPHL 0.7 s Rg = 47, Cg = 3 nF, f = 10 kHz, Duty Cycle = 50%, IF = 8 mA, VCC = 30V
Maximum Supply Current ICC(max) 3 mA
Minimum Common Mode Rejection (CMR) |CMH| / |CML| 25 kV/s TA = 25C, VCM = 1500V
Wide VCC Operating Range VCC VEE 10 30 V
Wide Operating Temperature Range TA 40 100 C
Input-Output Momentary Withstand Voltage (UL1577) VISO 3750 (ACPL-P314) / 5000 (ACPL-W314) Vrms TA = 25C, RH < 50% for 1 min.
Package Clearance/Creepage (ACPL-W314) 8 mm
Maximum Working Insulation Voltage (IEC/EN/DIN EN 60747-5-5) VIORM 891 (ACPL-P314) / 1140 (ACPL-W314) Vpeak
ACPL-P314 UL Recognized Withstand Voltage VISO 3750 Vrms for 1 minute per UL1577
ACPL-W314 UL Recognized Withstand Voltage VISO 5000 Vrms for 1 minute per UL1577
ACPL-P314 (Option 060) Maximum Working Insulation Voltage VIORM 891 Vpeak
ACPL-W314 (Option 060) Maximum Working Insulation Voltage VIORM 1140 Vpeak

2410311308_Broadcom-ACPL-W314-500E_C194137.pdf
