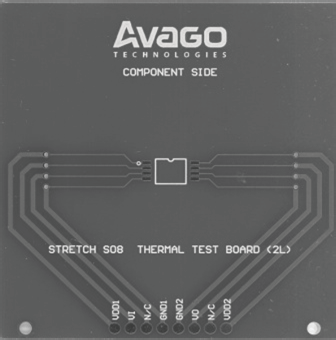

Automotive grade gate drive optocoupler Broadcom ACPL-K33T-500E with AEC Q100 Grade 1 certification
Automotive grade gate drive optocoupler Broadcom ACPL-K33T-500E with AEC Q100 Grade 1 certification
Specifications
Operating Temperature :
-40℃~+125℃
Isolation voltage(Vrms) :
5kV
Voltage - Supply :
1.5V
Number of Channels :
1
Description :
1.5V SOIC-8-6.8mm Isolators - Gate Drivers RoHS
Mfr. Part # :
ACPL-K33T-500E
Model Number :
ACPL-K33T-500E
Package :
SOIC-8-6.8mm
Description

Product Overview

The Avago Technologies ACPL-K33T is a 2.5 Amp Automotive R2Coupler Gate Drive Optocoupler designed for driving SiC MOSFET and IGBTs in AC-DC and DC-DC converters. It features an AlGaAs LED optically coupled to an integrated circuit with a power output stage, offering fast propagation delay and tight timing skew. The high operating voltage range of the output stage provides the necessary drive voltages for gate-controlled devices. This optocoupler is ideal for high-frequency, high-efficiency conversion applications requiring reinforced insulation and reliability, such as automotive and high-temperature industrial environments. It is qualified to AEC-Q100 Grade 1 test guidelines and operates within an automotive temperature range of -40 C to +125 C.

Product Attributes

  • Brand: Avago Technologies
  • Product Line: R2Coupler
  • Qualification: AEC-Q100 Grade 1
  • Certifications: UL Recognized (5000 VRMS for 1 min), CSA, IEC/EN/DIN EN 60747-5-5
  • Package Type: Stretched SO-8

Technical Specifications

Specification Symbol Conditions Min. Typ. Max. Units
Peak Output Current IOH(PEAK) 2.5 A
Peak Output Current IOH VCC VO = 15 V -3.5 -2.0 A
Peak Output Current IOL VO VEE = 15 V 2.0 4 A
Propagation Delay Time to High Output Level tPLH VCC = 15 V, RG = 7.5 , CL = 10 nF 65 120 ns
Propagation Delay Time to Low Output Level tPHL VCC = 15 V, RG = 7.5 , CL = 10 nF 65 120 ns
Pulse Width Distortion PWD -40 0 40 ns
Dead Time Distortion DTD -40 50 ns
Common Mode Rejection (CMR) |CMH| VCM = 1500 V 50 >75 kV/s
Common Mode Rejection (CMR) |CML| VCM = 1500 V 50 >75 kV/s
Low Supply Current ICCL VF = 0 V 2.55 4.2 mA
High Level Supply Current ICCH IF = 10 mA 2.65 4.2 mA
Under Voltage Lock-Out Threshold (High) VUVLO+ 12.1 13 13.9 V
Under Voltage Lock-Out Threshold (Low) VUVLO- 11.1 12 12.9 V
UVLO Hysteresis UVLOHYS 0.5 1.0 V
Wide Operating VCC Range VCC VEE 15 30 V
Automotive Temperature Range TA -40 125 C
Input-Output Momentary Withstand Voltage VISO RH < 50%, t = 1 min, TA = 25 C 5000 VRMS
Maximum Working Insulation Voltage VIORM 1140 Vpeak

Applications

  • Hybrid Power Train DC/DC Converter
  • EV/PHEV Charger
  • Automotive Isolated IGBT Gate Drive
  • AC and Brushless DC Motor Drives
