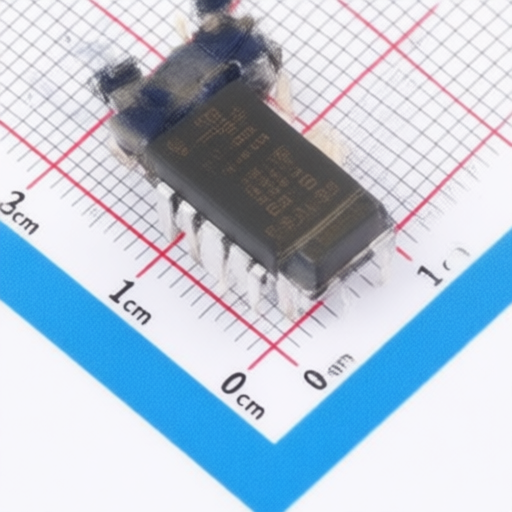

Optocoupler Broadcom HCPL-T250-000E for Direct Drive of IGBTs and Discrete Power Stages in Inverters
Optocoupler Broadcom HCPL-T250-000E for Direct Drive of IGBTs and Discrete Power Stages in Inverters
Specifications
Operating Temperature :
-20℃~+85℃
Isolation voltage(Vrms) :
3.75kV
Voltage - Supply :
1.6V
Number of Channels :
1
Description :
1.6V DIP-8 Isolators - Gate Drivers RoHS
Mfr. Part # :
HCPL-T250-000E
Model Number :
HCPL-T250-000E
Package :
DIP-8
Description

Product Overview

The HCPL-T250 is an optocoupler designed for driving power IGBTs and MOSFETs in motor control inverter applications. It features a GaAs LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideal for directly driving IGBTs up to 1200 V/25 A, or for driving discrete power stages for higher-rated IGBTs. It offers a high operating voltage range, suitable for the drive voltages required by gate-controlled devices. The device requires a 0.1 F bypass capacitor between pins 5 and 8.

Product Attributes

  • Brand: Avago Technologies
  • Certifications: UL 1577 recognized (File No. E55361), CSA approved, IEC/EN/DIN EN 60747-5-2 approved (VIORM = 630 Vpeak)
  • Compliance: RoHS 6 fully compliant options available
  • Material: GaAs LED

Technical Specifications

Parameter Symbol Units Min. Typ. Max. Conditions
Input Threshold Current (Low to High) IFLH mA 1.2 5 IO = 0 mA, VO > 5 V
Supply Current ICC mA 7.5 11 Output Open
Supply Voltage VCC V 15 35
Output Current IO A 0.5 1.5 VO = VCC - 4 V
Switching Time (tPLH/tPHL) s 0.3 0.5
Isolation Voltage VISO Vrms 3750 min. for 1 minute per UL1577
Minimum Common Mode Rejection (CMR) kV/s 5 at Vcm = 1500 V
Creepage distance L(102) mm 7.4
Clearance L(101) mm 7.1
Operating Temperature TA C -20 85
Storage Temperature TS C -55 125
Lead Solder Temperature C 260 for 10 sec., 1.6 mm below seating plane

Applications

  • IGBT/MOSFET gate drive
  • AC/brushless DC motor drives
  • Industrial inverters
  • Switch mode power supplies
