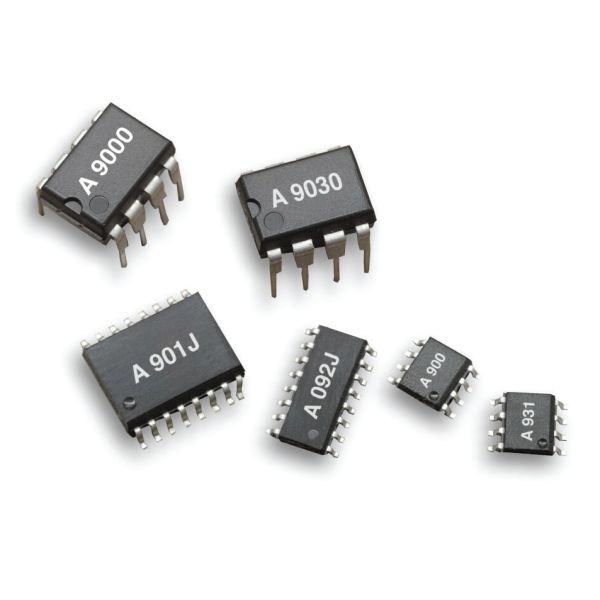

High speed digital isolator Broadcom HCPL 090J 500E with 2500 VRMS isolation and 100 Mbaud data rate
High speed digital isolator Broadcom HCPL 090J 500E with 2500 VRMS isolation and 100 Mbaud data rate
Specifications
Description :
Digital Isolators RoHS
Mfr. Part # :
HCPL-090J-500E
Model Number :
HCPL-090J-500E
Description

Broadcom HCPL-90xx and HCPL-09xx High-Speed Digital Isolators

Product Overview

The Broadcom HCPL-90xx and HCPL-09xx series are advanced CMOS digital isolators engineered for high-speed performance and exceptional transient immunity. Featuring a symmetric magnetic coupling barrier, these devices achieve industry-leading speeds with a typical pulse width distortion of 2 ns, a typical propagation delay skew of 4 ns, and a 100 Mbaud data rate. Available in single-channel, dual-channel (unidirectional and bidirectional), and quad-channel configurations, they offer high channel density ideal for isolating data conversion devices, parallel buses, and peripheral interfaces. These isolators are suitable for applications requiring robust digital fieldbus isolation, multiplexed data transmission, computer peripheral interfaces, high-speed digital systems, isolated data interfaces, and logic level shifting. They operate across a wide temperature range of 40C to +100C and are UL1577 approved for 2500 VRMS isolation.

Product Attributes

  • Brand: Broadcom
  • Technology: CMOS Digital Isolators
  • Certifications: UL1577 approved (2500 VRMS isolation)
  • ESD Sensitivity: Handle with normal static precautions.
  • Application Restriction: Not for use in or aerospace applications or environments.

Technical Specifications

Model Series Channel Configuration Package Type Data Rate Pulse Width Distortion (Typ.) Propagation Delay Skew (Typ.) Isolation Voltage Operating Temperature Supply Voltage
HCPL-90xx / HCPL-09xx Single 8-pin PDIP (300 Mil) / 8-pin SOIC 100 MBd 2 ns 4 ns 2500 VRMS 40C to +100C +3.3V and +5V
HCPL-90xx / HCPL-09xx Dual (Unidirectional) 8-pin PDIP (300 Mil) / 8-pin SOIC 100 MBd 2 ns 4 ns 2500 VRMS 40C to +100C +3.3V and +5V
HCPL-90xx / HCPL-09xx Dual (Bidirectional) 8-pin PDIP (300 Mil) / 8-pin SOIC 100 MBd 2 ns 4 ns 2500 VRMS 40C to +100C +3.3V and +5V
HCPL-90xx / HCPL-09xx Quad (Unidirectional) 16-pin SOIC (Wide Body) / 16-pin SOIC (Narrow Body) 100 MBd 2 ns 4 ns 2500 VRMS 40C to +100C +3.3V and +5V
HCPL-90xx / HCPL-09xx Quad (2 channels one direction, 2 opposite) 16-pin SOIC (Wide Body) / 16-pin SOIC (Narrow Body) 100 MBd 2 ns 4 ns 2500 VRMS 40C to +100C +3.3V and +5V
HCPL-90xx / HCPL-09xx Quad (1 channel one direction, 3 opposite) 16-pin SOIC (Wide Body) / 16-pin SOIC (Narrow Body) 100 MBd 2 ns 4 ns 2500 VRMS 40C to +100C +3.3V and +5V
Key Electrical Specifications (Typical at +25C, 3.3V operation):
Parameter Symbol Min. Typ. Max. Unit Test Conditions
Propagation Delay (Low to High) tPLH 12 18 ns CL = 15 pF
Propagation Delay (High to Low) tPHL 12 18 ns CL = 15 pF
Pulse Width Distortion PWD 2 3 ns |tPHL tPLH|
Propagation Delay Skew tPSK 4 6 ns Between units at 25C
Channel-to-Channel Skew tCSK 2 3 ns Within a single device
Common Mode Transient Immunity |CMH|, |CML| 15 18 kV/s Vcm = 1000V
Key Electrical Specifications (Typical at +25C, 5V operation):
Parameter Symbol Min. Typ. Max. Unit Test Conditions
Propagation Delay (Low to High) tPLH 10 15 ns CL = 15 pF
Propagation Delay (High to Low) tPHL 10 15 ns CL = 15 pF
Pulse Width Distortion PWD 2 3 ns |tPHL tPLH|
Propagation Delay Skew tPSK 4 6 ns Between units at 25C
Channel-to-Channel Skew tCSK 2 3 ns Within a single device
Common Mode Transient Immunity |CMH|, |CML| 15 18 kV/s Vcm = 1000V

2511031035_Broadcom-HCPL-090J-500E_C49275051.pdf
