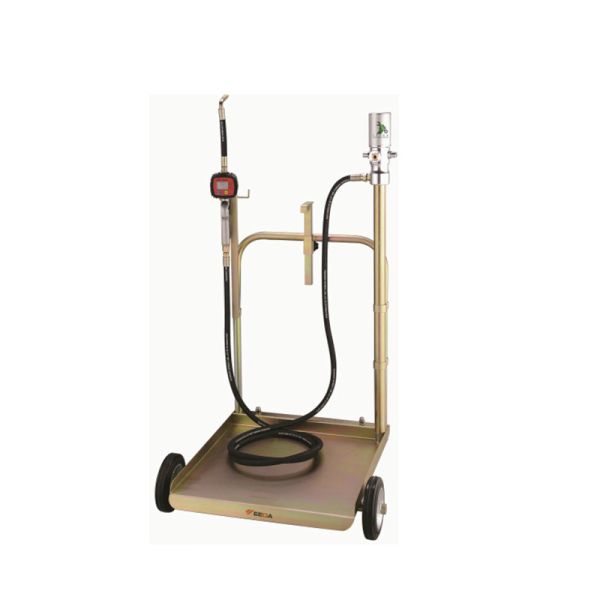

YD51-013B 220KG Trolley Oil Dispenser:14L/Min,5:1 Ratio,±0.5%,for Plants/Workshops/Farms
YD51-013B 220KG Trolley Oil Dispenser:14L/Min,5:1 Ratio,±0.5%,for Plants/Workshops/Farms
Specifications
Brand Name :
YEEDA
Model Number :
YD51-013B
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Integrated system :
Air-Operated Oil Pump + Heavy-Duty Trolley + Dispensing Hose + Digital Meter
Compression Ratio :
5:1 (optimized for high-viscosity oil, e.g., SAE240);
Connections :
Air Inlet (F1/4"G), Oil Out (M1/2"G);
Pressure Ratings :
Working Pressure (8 Bar), Max. Flow Pressure (40 Bar);
Performance: :
Air Consumption (125 L/Min), Relative Capacity (14 L/Min), Suction Tube Diameter (42mm);
Applicable Oils: :
Gear oil, hydraulic oil, industrial heavy oil (up to SAE240 viscosity)
Description

YD51-013A 180-220KGS Trolley-Mounted 3:1 Oil Dispenser Kit Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

Component Category Specific Specification
Model YD51-013A (180-220KGS Trolley-Mounted 3:1 Oil Dispenser Kit, designed for large-drum high-volume oil dispensing, ideal for industrial warehouses, heavy-duty workshops, and large-scale logistics centers)
Product Type Integrated system: Air-Operated Oil Pump + Heavy-Duty Modular Trolley + Dispensing Hose + Digital Meter
Air-Operated Oil Pump 1. Compression Ratio: 3:1 (optimized for medium-viscosity oil transfer, e.g., SAE130);

2. Connections: Air Inlet (F1/4"G), Oil Out (M1/2"G);

3. Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (24 Bar);

4. Performance Metrics: Air Consumption (100 L/Min), Relative Capacity (18 L/Min), Suction Tube Diameter (42mm);

5. Applicable Oils: Motor oil, hydraulic oil, gear oil, synthetic oil (up to SAE130 viscosity)
Heavy-Duty Modular Trolley 1. Load Capacity: 180-220KGS (fits large trade drums of standard and irregular shapes);

2. Mobility: 2 high-quality fixed wheels + 2 casters (smooth maneuvering on warehouse/concrete floors);

3. Structural Features: Pump support bracket + drum clamping device (secures large drums/pump to prevent tipping);

4. Finish: Zinc-plated (anti-rust, corrosion-resistant to oil and humid environments);

5. Stability: Reinforced frame (handles full 220KGS drums without deformation)
Dispensing Hose 1. Length: 4m (enables long-distance dispensing without repositioning the heavy trolley);

2. Inner Diameter (ID): 1/2” (ensures unobstructed flow for high-volume transfer);

3. Material: SAE 10R2AT (oil-resistant, wear-resistant, durable for frequent heavy use);

4. Working Pressure: 138 Bar (withstands high-pressure output from the pump);

5. Connections: Inlet/Outlet (1/2") (compatible with pump and digital meter)
Digital Meter 1. Flow Range: 1-25 L/Min (matches pump’s 18 L/Min relative capacity);

2. Accuracy: ±0.5% (precise for large-volume oil inventory tracking and billing);

3. Pressure Limits: Minimum Working Pressure (5 Bar), Maximum Working Pressure (100 Bar);

4. Temperature Adaptability: -20℃ ~ +60℃ (works in cold warehouses and warm workshop environments);

5. Oil Inlet Thread: 1/2 Bsp/NPSM (compatible with hose outlet)

2. Performance Test Table

Test Item Test Condition Test Result
Large-Drum Transfer Efficiency Transfer oil from a 220KGS drum (≈280L) at 18 L/Min relative capacity Empties the drum in ~15.6 minutes; no flow drop or pump strain; suction tube extracts 97% of oil (residual ≤8L)
Dispensing Accuracy Dispense 20L, 30L, 50L of hydraulic oil (SAE100) using the digital meter Measured volumes: 20.01L, 30.02L, 50.03L—all within ±0.5% accuracy range
Trolley Stability & Mobility Move the trolley (loaded with 220KGS drum) across 100m concrete warehouse floors Trolley maneuvers smoothly; fixed wheels maintain straight movement; clamping device keeps the drum secure (no tipping)
Durability Under Pressure Operate the pump at max flow pressure (24 Bar) for 3 hours with gear oil (SAE130) Hose shows no swelling/leakage; pump components (compression parts, connections) remain intact; trolley frame no deformation

II. Product Details (PRODUCT DETAILS)

The YD51-013A Trolley-Mounted 3:1 Oil Dispenser Kit addresses the pain points of large-drum oil handling: "cumbersome mobility, low transfer efficiency, and inaccurate measurement". With "220KGS heavy-duty trolley + 18 L/Min high-flow pump + ±0.5% precision meter" as core strengths, it redefines efficiency for high-volume oil dispensing:

1. Heavy-Duty Trolley: Stable & Mobile for Large Drums

  • 220KGS Load Capacity: Unlike standard 60KGS trolleys, this reinforced zinc-plated trolley handles full-size 180-220KGS drums—eliminating the need for multiple small-drum transfers. The drum clamping device and reinforced frame prevent tipping, a critical safety risk with heavy drums.
  • Smooth Mobility: The 2 fixed wheels and 2 casters are engineered for heavy loads, rolling easily across warehouse floors. This saves 50% of labor time compared to manually moving large drums or using forklifts for repositioning.

2. 3:1 Pump & High-Flow Performance

  • 18 L/Min Rapid Transfer: The 3:1 compression ratio pump delivers 18 L/Min, emptying a 220KGS drum in ~15.6 minutes—3x faster than manual pumps. The 42mm suction tube reaches drum bottoms, minimizing residual oil and reducing waste.
  • Medium-Viscosity Versatility: Optimized for SAE130 oil, the pump works seamlessly with common industrial oils (hydraulic, gear oil), making it a one-stop solution for workshops maintaining heavy machinery.

3. Precise Digital Meter & Durable Hose

  • ±0.5% Accuracy for Large Volumes: The digital meter ensures precise measurement even for high-volume dispensing (e.g., 50L per machine), critical for industrial inventory tracking and cost control. It avoids over-dispensing, which wastes oil and increases costs.
  • SAE 10R2AT 4m Hose: The oil-resistant, 138 Bar pressure-rated hose supports long-distance dispensing—no need to move the heavy trolley repeatedly. Its 1/2” ID ensures unobstructed flow, matching the pump’s high-volume output.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Industrial Warehouse Heavy Machinery Refueling

Scenario Requirement: A manufacturing warehouse maintains 10 forklifts (each needing 40L hydraulic oil, SAE100) daily, using 220KGS oil drums. The warehouse needs a mobile, efficient dispenser to avoid production delays. Operation Process:
  1. Setup: Secure a 220KGS drum to the trolley via the clamping device; connect the pump’s F1/4"G air inlet to the warehouse air compressor; attach the 4m hose and digital meter;

    2. Dispensing: Transfer 40L oil per forklift in ~2.2 minutes (18 L/Min); the meter records each dispense for inventory;

    3. Mobility: Move the trolley between forklift parking bays (100m distance) with minimal effort;

    4. Efficiency: 10 forklifts refueled in ~22 minutes; no need for forklift assistance to move drums.

    Effect: Heavy-duty trolley handles large drums; high flow meets daily refueling demands.

2. Logistics Center Truck Fleet Maintenance

Scenario Requirement: A logistics center services 15 delivery trucks (each needing 35L motor oil, SAE50) weekly, using 220KGS drums. The center needs accurate measurement for cost tracking. Operation Process:
  1. Setup: Position the trolley near the maintenance area; connect the pump to the air supply;

    2. Dispensing: Use the digital meter to dispense 35L oil per truck in ~1.9 minutes; the meter’s ±0.5% accuracy ensures precise cost calculation;

    3. Stability: Trolley remains secure during dispensing (clamping device locks the drum); 4m hose reaches truck oil tanks easily;

    4. Cost Control: Meter data is logged weekly to track oil usage per truck, identifying inefficiencies.

    Effect: Precise meter simplifies cost tracking; mobile design fits maintenance workflows.

3. Heavy-Duty Workshop Gear Oil Replacement

Scenario Requirement: A workshop replaces gear oil for 8 industrial gears (each needing 60L gear oil, SAE130) monthly, using 220KGS drums. The oil’s medium viscosity requires a powerful pump. Operation Process:
  1. Setup: Mount the pump on the trolley’s support; connect to 8 Bar air pressure; attach the hose to the gear’s oil inlet;

    2. Dispensing: Transfer 60L gear oil per gear in ~3.3 minutes; pump maintains 18 L/Min flow without clogging;

    3. Durability: Trolley’s zinc plating resists workshop oil stains; hose handles 24 Bar max pressure without leakage;

    4. Completion: 8 gears serviced in ~26.4 minutes—half the time of using small-drum pumps.

    Effect: 3:1 pump handles SAE130 oil; heavy-duty design suits workshop use.

IV. Frequently Asked Questions (FAQ)

Q1: The trolley is hard to move when loaded with a 220KGS drum. How to improve mobility?

A1: Reduced mobility is often due to wheel obstruction or uneven surfaces. Solutions: 1) Clean Wheels/Casters: Remove debris (oil, dust) from wheel axles and casters—build-up increases friction; 2) Check Floor Condition: Ensure the floor is free of cracks or bumps; use a floor mat for rough areas to smooth movement; 3) Lubricate Wheels: Apply heavy-duty lubricant to wheel bearings quarterly—this reduces friction and eases rolling. These steps restore smooth mobility.

Q2: Can the pump handle oil with viscosity higher than SAE130 (e.g., SAE140)?

A2: No. The pump’s 3:1 compression ratio is optimized for SAE130 or lower. Using SAE140+ oil will cause: 1) Reduced Flow: Flow rate may drop to 10-12 L/Min (40% lower than rated); 2) Pump Strain: High viscosity forces compression parts to work harder, shortening service life by 50%; 3) Clogging Risk: Thick oil may block the 42mm suction tube or M1/2"G outlet. For SAE140+, use a pump with a 5:1 compression ratio (e.g., YD51-012B).

Q3: The digital meter’s reading is inconsistent with the actual oil volume. How to calibrate it?

A3: Calibrate the meter using a certified volume container: 1) Prepare a 50L Certified Container: Use a container with a verified volume (traceable to industry standards); 2) Dispense Oil: Use the meter to dispense 50L oil into the container; 3) Adjust Calibration: If the meter reads 50.25L (over 0.5% error), use the meter’s calibration screw (refer to the manual) to lower the reading until it matches the container’s 50L. Repeat until accuracy is within ±0.5%.

Q4: How to maintain the trolley’s zinc-plated finish to prevent rust?

A4: Protect the zinc plating with these steps: 1) Post-Use Cleaning: Wipe the trolley frame with a dry cloth after use to remove oil residue—oil traps moisture and causes rust; 2) Inspect for Scratches: Touch up small scratches with zinc-rich paint to prevent exposed steel from rusting; 3) Store Properly: Keep the trolley in a dry, ventilated area—avoid storing it outdoors or in humid spaces (e.g., near water sources); 4) Annual Maintenance: Apply a thin layer of anti-rust oil to the frame yearly to reinforce the zinc plating.
