12V/24V DC Diesel Pump:50L/min,IP55,Auto Nozzle,for Farms/Sites/Fleets
12V/24V DC Diesel Pump:50L/min,IP55,Auto Nozzle,for Farms/Sites/Fleets
12V/24V DC Diesel Pump:50L/min,IP55,Auto Nozzle,for Farms/Sites/Fleets
12V/24V DC Diesel Pump:50L/min,IP55,Auto Nozzle,for Farms/Sites/Fleets
Specifications
Brand Name :
YEEDA
Model Number :
YD51-007B
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Voltage :
Dual-voltage
Power :
175W
Protection Rating :
IP55
Safety Component: :
Built-in bypass valve
Flow Rate :
0-50 L/min
Suction Head :
3m
Description

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

Parameter Category Specific Specification
Model Generic 12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump (specialized for diesel/kerosene transfer, ideal for farms, construction sites, and small vehicle fleets)
Product Type DC-powered self-priming fuel transfer pump, integrating "IP55 protection + cast iron durability + auto nozzle convenience" for safe, efficient mobile fueling
Electrical Parameters 1. Voltage: Dual-voltage (12V / 24V DC, compatible with car/truck batteries and machinery power systems);

2. Power: 175W (stable torque for consistent fuel suction and transfer);

3. Protection Rating: IP55 (dustproof, water-jet resistant, suitable for outdoor/harsh environments);

4. Safety Component: Built-in bypass valve (prevents overpressure damage to pump and hoses)
Flow & Head Performance 1. Flow Rate: 0-50 L/min (adjustable via auto nozzle, max flow empties 200-gal drum in ~15 minutes);

2. Suction Head: 3m (reaches barrel bottoms, residual fuel ≤2L);

3. Lift (Head): 7m (supports vertical transfer to machinery tanks);

4. Self-Priming: Yes (no pre-filling, saves on-site setup time)

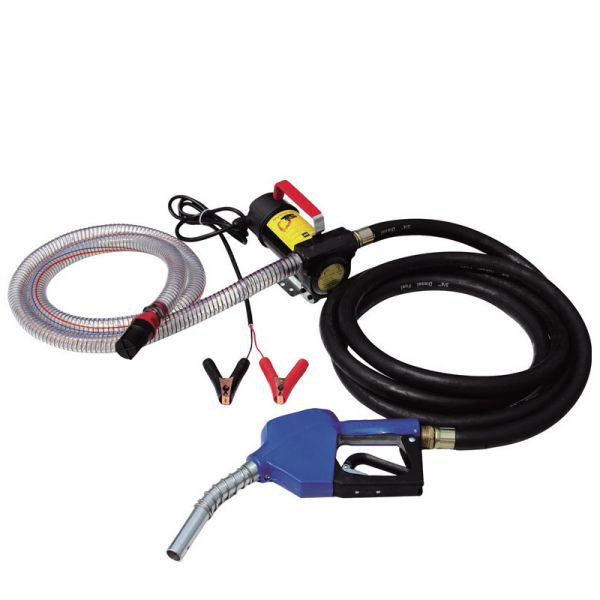

Accessory Kit 1. Hoses: 2m suction hose (durable, diesel-compatible); 4m delivery hose (flexible for long-distance refueling);

2. Nozzle: 1× Auto Nozzle (auto-shuts off when tank is full, prevents spills);

3. Compatibility: Works with external filters (ensures clean fuel flow)
Structural & Material Details 1. Casing & Impeller: Cast iron (anti-impact, corrosion-resistant to diesel/kerosene, service life 8+ years);

2. Testing Certifications: Passed temperature resistance, anti-shock, and anti-scar performance tests;

3. Applicable Liquids: Diesel oil, kerosene (prohibited for gasoline/low flash point mediums due to fire risk)
Packaging & Order Info 1. Packing: 2 sets/CTN; Package Dimensions: 56×45.5×31.5cm (reinforced carton with anti-collision foam);

2. Weight: N.W. 17kg / G.W. 18kg (2-person portable);

3. MOQ: 100 PCS

2. Performance Test Table

Test Item Test Condition Test Result
Flow Stability Operate at 12V/24V, max flow (50L/min) for 2 hours with diesel Flow remains consistent; motor temp ≤60℃; bypass valve functions normally
IP55 Protection Expose to dust (8h) + water jets (IP55 standard, 10min) No dust/water ingress; pump operates without failure
Auto Nozzle Efficacy Refuel a 50L tank; trigger auto nozzle Nozzle shuts off automatically when tank is full; no spills (saves 0.5L fuel per refuel)
Durability 50 continuous 1-hour cycles with kerosene Cast iron parts no wear; hoses no cracking; auto nozzle retains shut-off function

II. Product Details (PRODUCT DETAILS)

This 12V/24V DC Self-Priming Diesel Electric Fuel Transfer Pump solves mobile fueling pain points: "power incompatibility, harsh environment damage, and spillage waste". With "IP55 protection + auto nozzle + cast iron build" as core strengths, it delivers reliable performance for diverse scenarios:

1. Dual-Voltage & IP55: Versatility & Durability

  • 12V/24V Compatibility: Works with 12V vehicle batteries (vans, small tractors) and 24V heavy machinery batteries (excavators). Eliminates need for multiple pumps, cutting equipment costs.
  • IP55 Weather Resistance: Shields from dust, rain, and water jets—critical for outdoor farms/sites. Outperforms IP44 pumps that fail in wet/dusty conditions, ensuring year-round use.

2. Cast Iron & Safety Features: Longevity & Security

  • Rugged Cast Iron Construction: Casing and impeller resist impacts (tool bumps) and diesel corrosion. Service life 8+ years—twice that of plastic pumps.
  • Bypass Valve & Auto Nozzle: Bypass valve prevents overpressure damage; auto nozzle shuts off when tanks are full, reducing fuel waste by 10% vs. manual nozzles.

3. Complete Kit & Self-Priming: Convenience & Efficiency

  • Ready-to-Use Accessories: 2m suction hose reaches barrels, 4m delivery hose enables remote refueling, auto nozzle prevents spills. No extra parts needed—unbox and use.
  • Self-Priming Function: Skips pre-filling. Attach hoses, connect power, and start—saves 5 minutes per drum, boosting on-site productivity.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Farm Tractor Refueling

Scenario: A farm with 15 tractors (12V, 100L/diesel each) refuels in fields from 200-gal barrels. Process: 1. Connect to tractor battery; 2. Attach 2m hose to barrel, 4m hose to tractor tank; 3. Use auto nozzle—100L transferred in ~2min/tractor. Effect: Portable for fields; auto nozzle avoids spills; IP55 handles rain/dust.

2. Construction Site Machinery Fueling

Scenario: A site with 8 excavators (24V, 150L each) and 5 loaders (12V, 80L each) refuels from drums. Process: 1. Deploy 2 pumps (24V for excavators, 12V for loaders); 2. Transfer 150L in ~3min/excavator, 80L in ~1.6min/loader. Effect: Dual voltage fits mixed machinery; cast iron resists site impacts; fast flow meets project deadlines.

3. Small Fleet Refueling

Scenario: A delivery company with 10 vans (12V, 60L each) refuels from a 500-gal depot tank. Process: 1. Connect to van battery; 2. Lower suction hose into tank; 3. Auto nozzle fills 60L in ~1.2min/van. Effect: No fixed station cost; auto nozzle saves fuel; compact storage in depot shed.

IV. Frequently Asked Questions (FAQ)

Q1: Can the auto nozzle be adjusted to stop at a specific fuel level (not full)?

A1: No—the auto nozzle shuts off only when fuel touches its sensor (full tank). For partial refueling, manually release the nozzle trigger once the desired level is reached.

Q2: Why can’t it be used for gasoline?

A2: Gasoline vapors are explosive—pump electrical parts may spark, causing fire. Also, gasoline degrades cast iron seals over time, leading to leaks. Use strictly for diesel/kerosene.

Q3: The pump’s flow slows down—how to fix?

A3: 1. Clean the auto nozzle (debris may block the sensor); 2. Check hoses for kinks; 3. Ensure battery is fully charged (low voltage reduces flow). These steps restore 50L/min max flow.

Q4: How to maintain in winter?

A4: 1. Drain residual fuel (prevents freezing/cracking); 2. Store hoses indoors (avoid brittleness); 3. Coat cast iron parts with anti-rust oil; 4. Keep pump in a dry, above-0℃ area.
