YEEDA YD52-009A-E Trolley Grease Kits:50:1,800g/Min,for Workshops/Sites/Plants
YEEDA YD52-009A-E Trolley Grease Kits:50:1,800g/Min,for Workshops/Sites/Plants
YEEDA YD52-009A-E Trolley Grease Kits:50:1,800g/Min,for Workshops/Sites/Plants
YEEDA YD52-009A-E Trolley Grease Kits:50:1,800g/Min,for Workshops/Sites/Plants
Specifications
Brand Name :
YEEDA
Model Number :
YD52-009A-E
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Length Options :
410mm/480mm/730mm/940mm
Compression Ratio :
50:1 (handles high-viscosity grease up to SAE240)
Connections :
Air Inlet (F1/4"G), Oil Out (M1/2"G)
Pressure Ratings :
Working Pressure (8 Bar), Max. Flow Pressure (400 Bar)
Performance :
Air Consumption (120 L/Min)
Description

YEEDA YD52-009A-E Trolley-Mounted Grease Dispensing Kits Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

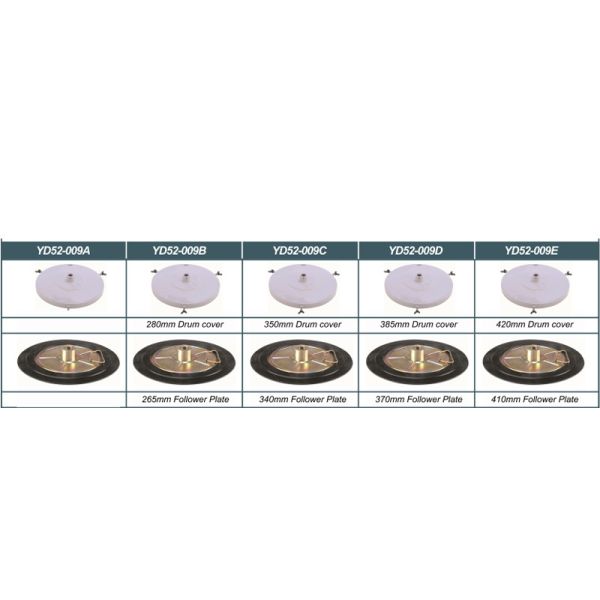

1. Core Parameter Summary Table (Model-Specific Drum Accessories)

Model Drum Cover Diameter Follower Plate Diameter Key Compatibility
YD52-009A - -(base model, no additional drum cover/follower plate) Fits standard 20-60kg drums with existing covers
YD52-009B 280mm 265mm Fits 20-30kg small-diameter drums
YD52-009C 350mm 340mm Fits 30-40kg medium-diameter drums
YD52-009D 385mm 370mm Fits 40-50kg large-diameter drums
YD52-009E 420mm 410mm Fits 50-60kg extra-large-diameter drums

2. Universal Component Specifications (All Models)

Component Category Specific Specification
Air-Operated Grease Pump 1. Length Options: 410mm/480mm/730mm/940mm (suits different drum heights);

2. Compression Ratio: 50:1 (handles high-viscosity grease up to SAE240);

3. Connections: Air Inlet (F1/4"G), Oil Out (M1/2"G);

4. Pressure Ratings: Working Pressure (8 Bar), Max. Flow Pressure (400 Bar);

5. Performance: Air Consumption (120 L/Min), Relative Capacity (800g/Min), Suction Tube Diameter (30mm)
Dispensing Hose 1. Length: 4m (enables long-distance greasing without trolley repositioning);

2. Inner Diameter (ID): 1/4” (ensures smooth grease flow);

3. Material: SAE 100R2AT (oil-resistant, wear-resistant, 400 Bar working pressure);

4. Connections: Inlet/Outlet (1/4") (compatible with pump and grease gun)
Grease Gun 1. Design: Rigid terminal, triple swivel joint (360° rotation for flexible use);

2. Inlet: 1/4"F (compatible with hose outlet);

3. Coupler: Special 4-jaw grease coupler (securely attaches to machinery lubrication ports, no leakage)
20-60kg Drum Trolley 1. Capacity: 20-60kg (fits all drum sizes for the 5 models);

2. Mobility: 2 high-quality fixed wheels + 2 casters (smooth movement on workshop/construction floors);

3. Finish: Zinc-plated (anti-rust, corrosion-resistant to grease and humidity);

4. Weight & Dimensions: N.W. 19kg (easy to maneuver); modular design for compact storage/transport

II. Product Details (PRODUCT DETAILS)

The YEEDA YD52-009A-E Trolley-Mounted Grease Dispensing Kits solve the pain points of mobile grease dispensing: "drum size mismatch, limited mobility, and inefficient greasing". With "5 model drum compatibility + 50:1 high-pressure pump + zinc-plated trolley" as core strengths, they deliver flexible, efficient greasing for diverse workplaces:

1. Model-Specific Drum Adaptability: No More Mismatches

  • 5 Drum Size Options: From YD52-009B (280mm cover for 20-30kg drums) to YD52-009E (420mm cover for 50-60kg drums), the series fits nearly all 20-60kg drum sizes. The follower plates (265mm-410mm) ensure tight sealing with drum interiors, preventing grease contamination and waste.
  • Base Model Flexibility: YD52-009A (no extra cover/plate) works with existing standard drum covers, ideal for users who already have compatible drums.

2. High-Pressure Pump & Long Hose: Power & Reach

  • 50:1 Pump for Thick Grease: The 400 Bar max flow pressure pushes high-viscosity grease (up to SAE240) into narrow machinery gaps (e.g., bearing races, hydraulic joints). The 800g/Min capacity cuts greasing time by 30% vs. manual guns.
  • 4m SAE 100R2AT Hose: The oil-resistant, high-pressure hose enables greasing from 4m away—no need to move the heavy trolley repeatedly. Its flexibility reaches hard-to-access points (e.g., under-carriage of construction vehicles).

3. Mobile Trolley & Ergonomic Grease Gun: Comfort & Efficiency

  • Zinc-Plated 20-60kg Trolley: The rust-resistant trolley rolls easily on wheels/casters, carrying both drum and pump. At 19kg, it’s light enough for one person to maneuver, saving labor vs. carrying drums manually. Modular design allows compact storage when not in use.
  • 4-Jaw Grease Gun: The triple swivel joint and 4-jaw coupler ensure easy attachment to machinery ports—no leakage during greasing. The rigid terminal reduces hand fatigue during long sessions (e.g., greasing a fleet of trucks).

III. Application Scenarios (APPLICATION SCENARIOS)

1. Automotive Workshop Small-Drum Greasing (YD52-009B)

Scenario Requirement: A car repair shop uses 25kg grease drums (280mm diameter) to lubricate 30 cars daily (each needing 150g engine grease). The shop needs a compact, mobile solution. Operation Process:
  1. Setup: Secure a 25kg drum to YD52-009B’s trolley; attach the 280mm drum cover and 265mm follower plate; connect the pump to the shop’s air compressor (8 Bar);

    2. Greasing: Use the 4m hose and grease gun to lubricate each car—150g grease takes ~11 seconds (800g/Min); the 4-jaw coupler ensures no leakage;

    3. Efficiency: 30 cars serviced in ~5.5 minutes; trolley moves easily between repair bays;

    4. Compatibility: Follower plate seals tightly with the 25kg drum, no grease contamination.

    Effect: Small-drum compatibility fits workshop needs; mobile design optimizes workflow.

2. Construction Site Medium-Drum Greasing (YD52-009D)

Scenario Requirement: A construction site uses 50kg grease drums (385mm diameter) to lubricate 8 excavators (each needing 4kg grease) weekly. The site requires high pressure for thick grease and outdoor durability. Operation Process:
  1. Setup: Load YD52-009D’s trolley with a 50kg drum; attach the 385mm cover and 370mm follower plate; connect to a portable air compressor;

    2. Greasing: Use the 4m hose to reach excavator hydraulic joints; 50:1 pump pushes thick grease (SAE240) into components—4kg takes ~5 minutes per excavator;

    3. Durability: Zinc-plated trolley resists outdoor rain/dust; 400 Bar hose withstands high pressure;

    4. Mobility: Trolley rolls on gravel paths, no need for forklift assistance.

    Effect: High pressure handles thick grease; outdoor-friendly build ensures reliability.

3. Industrial Plant Large-Drum Greasing (YD52-009E)

Scenario Requirement: A factory uses 60kg grease drums (420mm diameter) to maintain 12 industrial machines (each needing 2kg grease) monthly. The plant needs efficient long-distance greasing. Operation Process:
  1. Setup: Position YD52-009E near the machine area; attach the 420mm cover and 410mm follower plate; connect to the factory’s air supply;

    2. Greasing: Extend the 4m hose to each machine; 800g/Min capacity dispenses 2kg grease in ~2.5 minutes per machine;

    3. Safety: Max flow pressure (400 Bar) ensures thorough lubrication without over-greasing; 4-jaw coupler prevents spills;

    4. Storage: Modular trolley folds compactly when not in use, saving warehouse space.

    Effect: Long hose fits plant layouts; large-drum compatibility reduces refilling frequency.

IV. Frequently Asked Questions (FAQ)

Q1: The follower plate leaks grease from the drum. How to fix?

A1: Leaks are usually due to size mismatch or improper installation. Solutions: 1) Check Model Compatibility: Ensure the follower plate diameter matches the drum (e.g., YD52-009D’s 370mm plate for 385mm drum); 2) Install Correctly: Press the follower plate firmly into the drum to create a tight seal—avoid tilting, which leaves gaps; 3) Replace Worn Plates: If the plate’s rubber seal is cracked, replace it with a manufacturer-supplied seal (worn seals cause leaks).

Q2: Can the pump handle grease with viscosity higher than SAE240 (e.g., SAE300)?

A2: No. The pump’s 50:1 compression ratio is optimized for SAE240 or lower. Using SAE300+ grease will: 1) Reduce flow rate to 400-500g/Min (50% lower than rated); 2) Strain the pump’s internal components, shortening service life by 50%; 3) Clog the 30mm suction tube or 1/4” hose. For SAE300+, use a kit with a 65:1 pump (e.g., YEEDA YD52-008 series).

Q3: The grease gun’s 4-jaw coupler won’t attach to machinery ports. What’s wrong?

A3: Coupler issues are due to dirt or size mismatch. Fixes: 1) Clean the Coupler: Wipe the 4-jaw coupler with a cloth to remove grease/debris—buildup blocks attachment; 2) Check Port Size: The coupler fits standard machinery lubrication ports (M6-M12); if ports are non-standard, use a coupler adapter (available from the manufacturer); 3) Adjust Coupler Pressure: Squeeze the gun’s trigger slightly while attaching the coupler—this helps the jaws lock onto the port.

Q4: How to maintain the trolley’s zinc-plated finish and pump for long-term use?

A4: 1) Trolley Maintenance: Wipe the zinc-plated frame with a dry cloth after use to remove grease; touch up scratches with zinc-rich paint to prevent rust; lubricate wheels/casters quarterly; 2) Pump Maintenance: Flush the pump with low-viscosity oil after use to clear residual grease; clean the 30mm suction tube monthly; add air tool oil to the pump’s air inlet weekly to keep the motor running smoothly; 3) Storage: Empty the drum and hose before long-term storage; keep the kit in a dry, ventilated area to avoid humidity damage.
