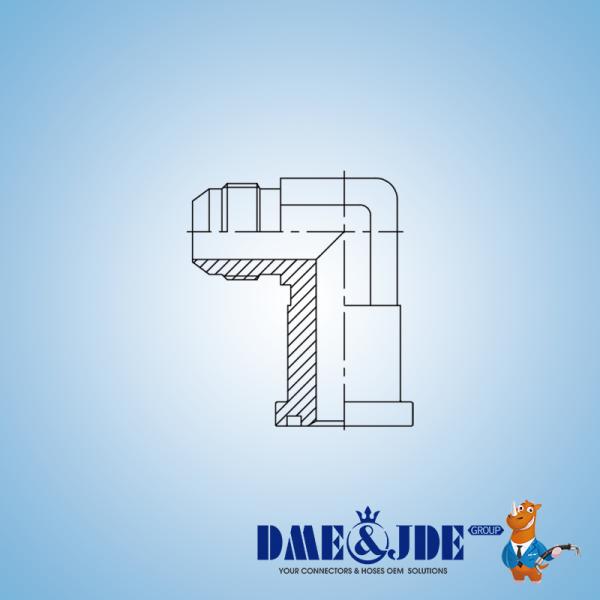

JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
JIC Male 74° Hydraulic Hose Flange 90° Forged Elbow DAJCM9334
Specifications
Brand Name :
DME&JDE
Model Number :
DAJCM9334
Certification :
MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA
Place of Origin :
China
MOQ :
500
Price :
$0.5-$10
Payment Terms :
T/T
Supply Ability :
6,000.000Pcs/Month
Delivery Time :
30 Days
Packaging Details :
Carton
Product Name :
DAJCM9334
Product Type :
hydraulic adaptor, flange
Standard :
JIC
Structure :
90° Forged Elbow
Thread Type :
JIC 74° Cone × SAE Code 61 Flange
Connection Types :
Male × Flange SAE Code 61
Description

DAJCM9334 90° Forged Elbow JIC Male 74° Hydraulic Flange

Hydraulic Flange Product Name

DME&JDE Code: DAJCM9334

Standard: JIC

Structure: 90° Forged Elbow

Connection Types: Male × Flange SAE Code 61

Thread Types: JIC 74° Cone × SAE Code 61 Flange

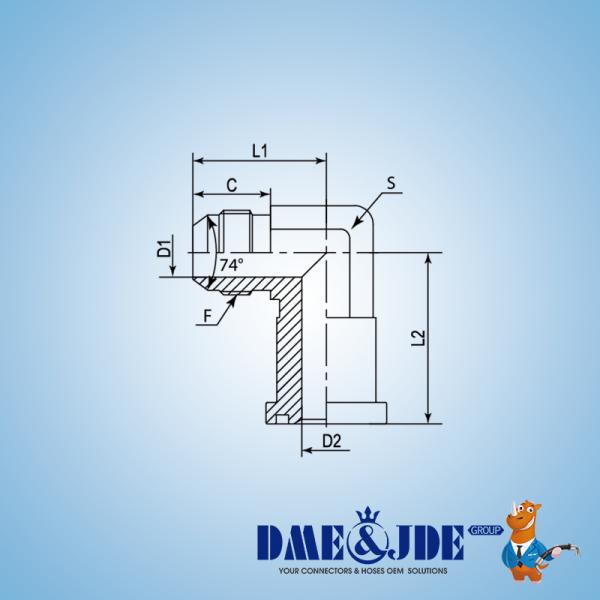

Hydraulic Flange Product Specification

Part Number

F (Thread)

C

D1

D2

L1

L2

S

UNF

mm

mm

mm

mm

mm

mm

-08

DAJCM9334-0808

3/4"-16

16.7

10

10

37.08

54.1

22.23

-08

DAJCM9334-0812

3/4"-16

24.5

10.01

15.52

42.16

54.1

27

-12

DAJCM9334-1212

1-1/16"-12

24.5

15.52

15.52

42.16

54.1

26.97

-12

DAJCM9334-1216

1-1/16"-12

24.5

15.52

21.44

46

60.2

33.33

-12

DAJCM9334-1220

1-1/16"-12

24.5

15.52

27.38

50.04

66.55

41.28

-12

DAJCM9334-1224

1-1/16"-12

29.5

15.52

33.48

59.2

80

47.63

-16

DAJCM9334-1612

1-5/16"-12

24.5

15.52

15.52

42.2

54.1

27

-16

DAJCM9334-1616

1-5/16"-12

24.33

21.44

21.44

45.97

60.2

33.33

-16

DAJCM9334-1620

1-5/16"-12

24.33

21.44

27.38

52.32

66.55

41.27

-16

DAJCM9334-1624

1-5/16"-12

25

21.44

33.48

59.18

80.01

47.63

-20

DAJCM9334-2016

1-5/8"-12

24.33

21.44

21.44

45.97

60.2

33.35

-20

DAJCM9334-2020

1-5/8"-12

25

27.38

27.38

52.32

66.55

41.28

-20

DAJCM9334-2024

1-5/8"-12

29.5

27.38

33.48

59.2

80

47.6

-24

DAJCM9334-2420

1-7/8"-12

27.5

27.38

27.38

52.3

66.6

41.27

-24

DAJCM9334-2424

1-7/8"-12

29.5

33.48

33.48

59.18

80

47.63

-24

DAJCM9334-2432

1-7/8"-12

35

33.48

45.24

77.7

107.95

63.5

-32

DAJCM9334-3224

2-1/2"-12

33.9

33.48

33.48

65.5

80

47.6

-32

DAJCM9334-3232

2-1/2"-12

35

45.24

45.24

77.72

107.95

63.5

-32

DAJCM9334-3240

2-1/2"-12

33.86

45.24

45.24

77.72

107.95

63.5
