Specifications
Brand Name :
DME&JDE
Model Number :
DAOF59334
Certification :
MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA
Place of Origin :
China
MOQ :
500
Price :
$0.5-$10
Payment Terms :
T/T
Supply Ability :
6,000.000Pcs/Month
Delivery Time :
30 Days
Packaging Details :
Carton
Product Name :
DAOF59334
Product Type :
hydraulic adaptor, flange
Standard :
ORFS
Structure :
90° Forged Elbow
Thread Type :
ORFS UNF × SAE Code 61 Flange
Connection Types :
Male × Flange SAE Code 61
Description

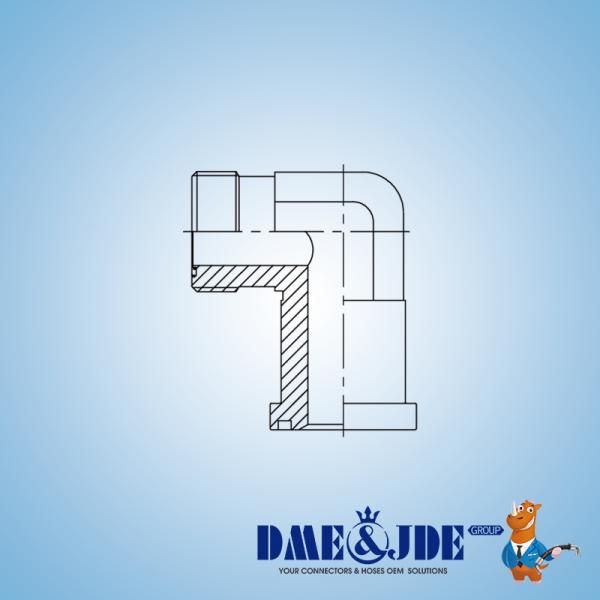

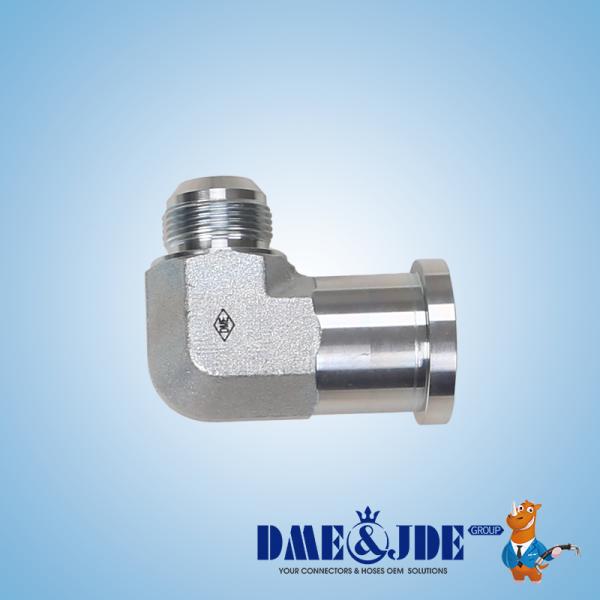

DAOF59334 90° Forged Elbow ORFS Male Hydraulic Flange Adaptor

Hydraulic Flange Product Name

Model: DAOF59334

Brand:DME&JDE

Product Type: hydraulic adaptor, flange

Standard: ORFS

Structure: 90° Forged Elbow

Connection Types: Male × Flange SAE Code 61

Thread types: ORFS UNF × SAE Code 61 Flange

Hydraulic Flange Advantages

Forged Strength: Superior durability and resistance to high pressure and impact.

Leak-Proof Seal: ORFS technology eliminates fluid leakage under harsh conditions.

Dual Connection: Combines ORFS UNF male thread and SAE Code 61 flange for versatile installation.

Space-Saving Design: 90° elbow allows efficient routing in tight spaces.

Standardized Compatibility: Meets ORFS and SAE Code 61 standards for broad interchangeability.

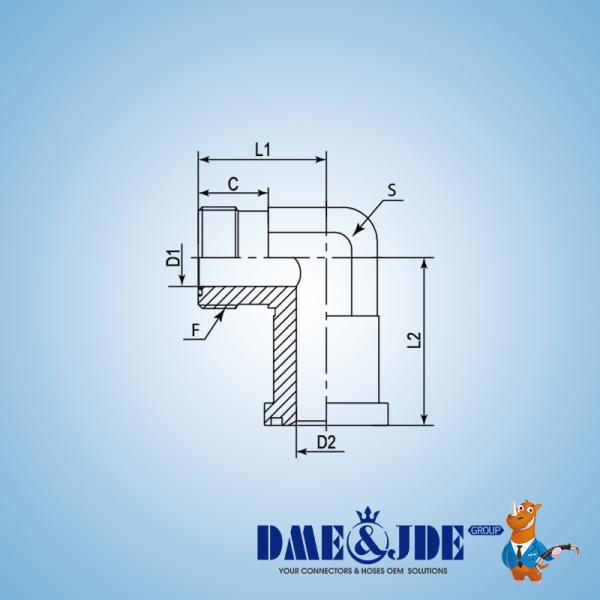

Hydraulic Flange Product specification

Technical Data of DAOF59334

Part Number

F (Thread)

C

D1

D2

L1

L2

S

UNF

mm

mm

mm

mm

mm

Inch

-12

DAOF59334-1212

1-3/16"-12

17.02

15.52

15.52

42.16

54.1

1-3/16''

-12

DAOF59334-1216

1-3/16"-12

24

15.5

20.6

46

60.2

1-5/16''

-16

DAOF59334-1612

1-7/16"-12

25.2

20.6

15.52

46

54.5

1-7/16''

-16

DAOF59334-1616

1-7/16"-12

25.2

20.6

20.6

46

60.2

1-7/16''

-16

DAOF59334-1620

1-7/16"-12

25.2

20.6

20.6

52.3

66.55

1-5/8''

-20

DAOF59334-2016

1-11/16"-12

25

21.44

21.44

52.3

65

1-5/8''

-20

DAOF59334-2020

1-11/16"-12

25

26

26

52.32

66.55

1-5/8''

-20

DAOF59334-2024

1-11/16"-12

25

26

26

59.2

80

1-7/8''

-24

DAOF59334-2420

2"-12

29.5

27.38

27.38

59.18

72.5

1-7/8''

-24

DAOF59334-2424

2"-12

29.5

32

33.48

59.18

80.01

1-7/8''

Quality Control

DAOF59334 90° Forged Elbow ORFS Male Hydraulic Flange Durability

Certificate

DAOF59334 90° Forged Elbow ORFS Male Hydraulic Flange Durability

Related Product

DAOF59334 90° Forged Elbow ORFS Male Hydraulic Flange Durability

Material Support

DAOF59334 90° Forged Elbow ORFS Male Hydraulic Flange Durability

FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.

2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.

3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.

4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.

5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.

6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.

7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
