DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange
Specifications
Brand Name :
DME&JDE
Model Number :
DFL3
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
10 (MOQ)
Price :
US$ 29.9-39.9
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hydraulic Hose Flange
Keyword :
Hydraulic Hose Assembly
Type :
DFL3
Product Type :
Flange
Connection Type :
Flange Code 61
Flange size :
0.5
Flange Type :
split flange
Package :
wooden
Description

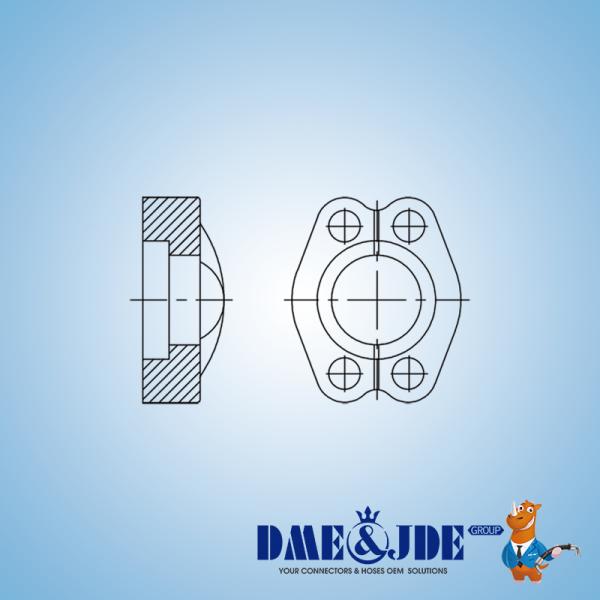

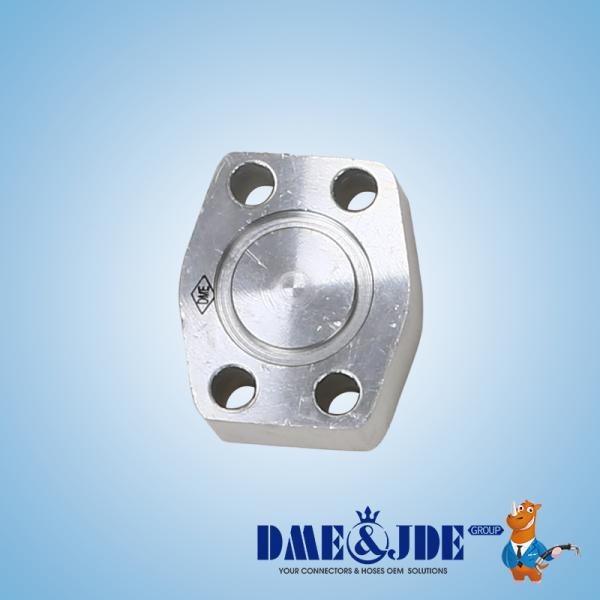

DFL3 Split Flange SAE Code 61 High Pressure Hydraulic Flange

Hydraulic Hose Flange product introduction

The DFL3 is a high-performance split flange designed for SAE Code 61 hydraulic systems. It features a two-piece split design that allows for easy installation and maintenance without disconnecting adjacent components, making it ideal for high-pressure fluid transfer in heavy machinery and industrial equipment.

Hydraulic Hose Flange spcification

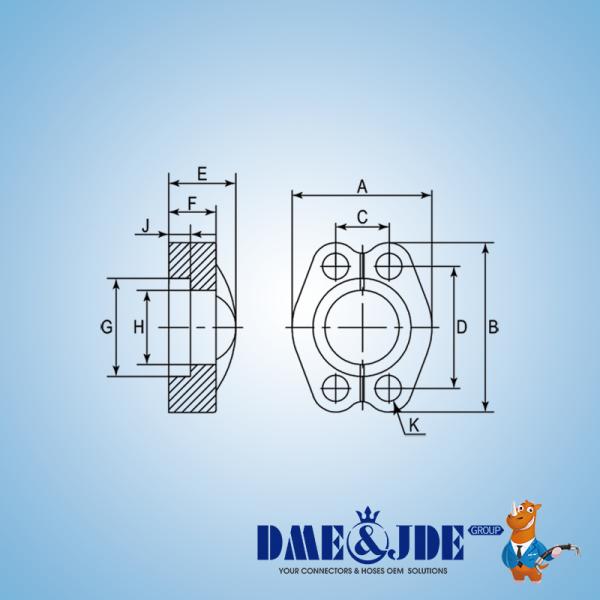

Technical Data of DFL3
Part Number Flange Size A B C D E F G H J K
- - mm mm mm mm mm mm mm mm mm mm
DFL3-08 0.5 45.97 5385.00 17.48 38.10 19.05 12.70 30.96 24.26 6.22 9.00

Hydraulic Hose Flange Advantages

Split Design: Allows quick installation and maintenance without removing adjacent components, ideal for confined spaces.
SAE Code 61 Standard: Fully interchangeable with global hydraulic components for wide compatibility.
Leak-Proof Sealing: Provides reliable metal-to-metal sealing under high pressure and vibration.
High Durability: Made from heavy-duty materials to resist fatigue, wear, and extreme operating conditions.
Cost Efficiency: Reduces downtime and simplifies inventory management with standardized design.
Flexible Installation: Enables retrofitting on existing pipelines without system reconfiguration.
Vibration Resistance: Maintains stable performance in heavy machinery and high-pulse applications.
Global Interchangeability: Meets international standards for seamless integration into hydraulic systems worldwide.
