DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange
Specifications
Brand Name :
DME&JDE
Model Number :
DFL3BP
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
10 (MOQ)
Price :
US$ 29.9-39.9
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hydraulic Hose Flange
Keyword :
Hydraulic Hose Assembly
BSP :
46
Inch :
54.1
BSPP :
1/2"-14
Flange Type :
4 bolt thread captive flange
Connection Type :
Flange Code 61
Thread Types :
BSPP female
Description

DFL3BP 4 Bolt Thread Captive Flange BSPP Female SAE Code 61 DFL3BP Hydraulic Flange

Hydraulic Hose Flange product introduction

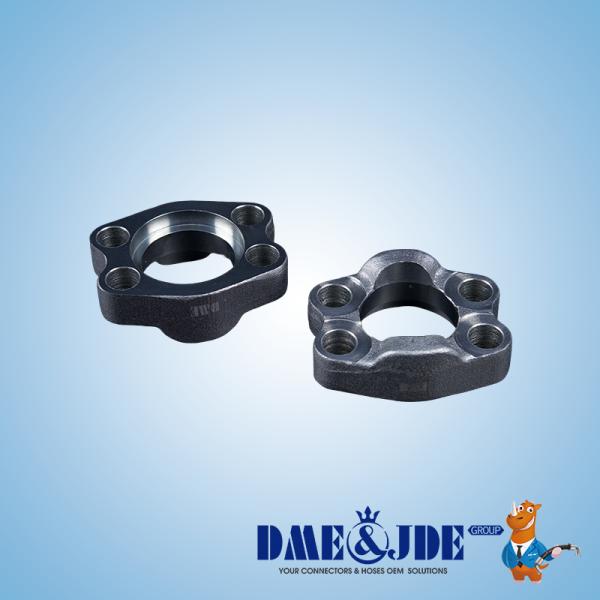

The DFL3BP is a heavy-duty 4-bolt thread captive flange designed for SAE Code 61 hydraulic systems, featuring a BSPP female thread connection. It combines the secure clamping of a 4-bolt flange with the convenience of a captive design and the compatibility of BSPP threads, making it ideal for European-standard hydraulic systems and heavy machinery applications.

Hydraulic Hose Flange spcification

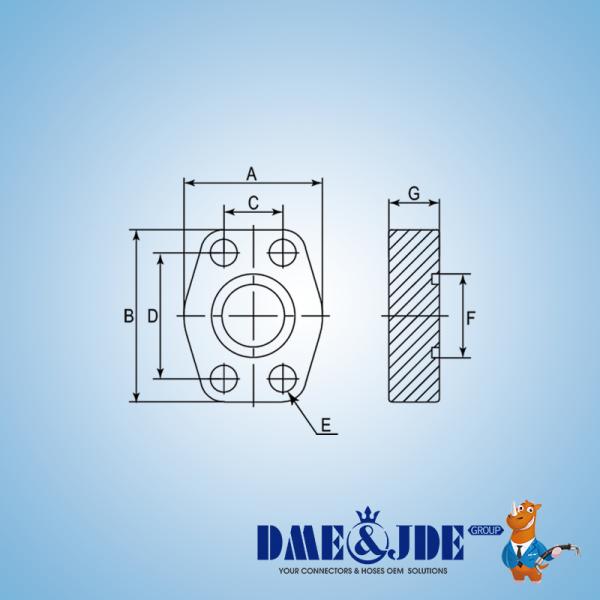

Part Number A B C D E F G H J (Thread)
- BSP Inch mm mm mm mm mm mm BSPP
DFL3BP-08 46 54.1 17.48 38.1 36.1 16 25.4 12.7 1/2"-14

Hydraulic Hose Flange Advantages

Captive Design: Prevents loose parts loss, simplifies installation, and reduces maintenance downtime.
BSPP Female Thread: Ensures reliable compatibility with European-standard hydraulic ports and systems.
4-Bolt Construction: Delivers superior clamping force and vibration resistance for high-pressure applications.
SAE Code 61 Standard: Fully interchangeable with global hydraulic components for wide market coverage.
Leak-Proof Sealing: Provides stable, long-term sealing performance under vibration and pressure fluctuations.
Easy Maintenance: Eliminates the need for extra fasteners, enabling quick assembly and disassembly in confined spaces.
High Durability: Made from heavy-duty alloy steel to resist fatigue, wear, and extreme operating conditions.
European Market Fit: Ideal for BSPP-threaded hydraulic systems, supporting expansion into European industrial markets.
