SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
SAE Code 62 Captive Flange Hydraulic Hose Flange Self Retaining Structure DFLC6
Specifications
Brand Name :
DME&JDE
Model Number :
DFLC6
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Hengshui City, Hebei Province, China
MOQ :
10 (MOQ)
Price :
US$ 29.9-39.9
Payment Terms :
T/T
Supply Ability :
10 (MOQ)US$ 29.9-39.9
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hydraulic Hose Flange
Keyword :
Hydraulic Hose Assembly
Type :
DFLC6
Product Type :
Flange
Connection Type :
SAE Code 62 Flange
Flange size :
0.5
Flange Type :
captive flange
Package :
wooden
Description

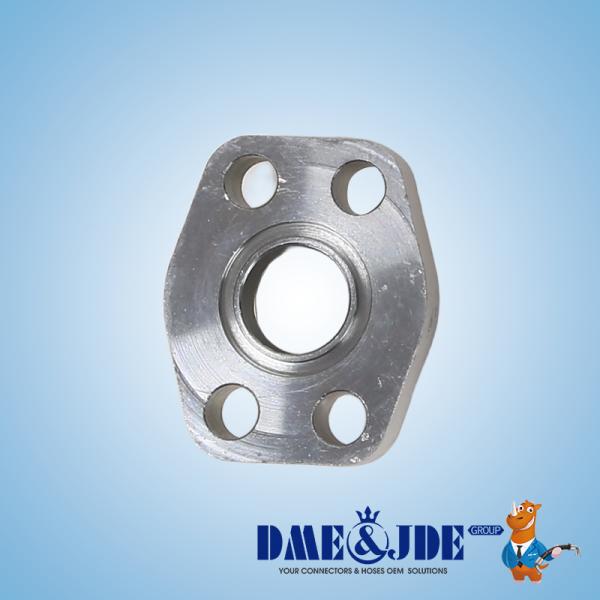

DFLC6 SAE Code 62 Captive Flange Hydraulic Hose Flange

Hydraulic Hose Flange product introduction

The DFLC6 is a high-performance captive flange designed for SAE Code 62 hydraulic systems. It features a self-retaining structure that prevents component loss during installation and maintenance, ensuring reliable, leak-free connections in high-pressure fluid transfer applications.

Hydraulic Hose Flange spcification

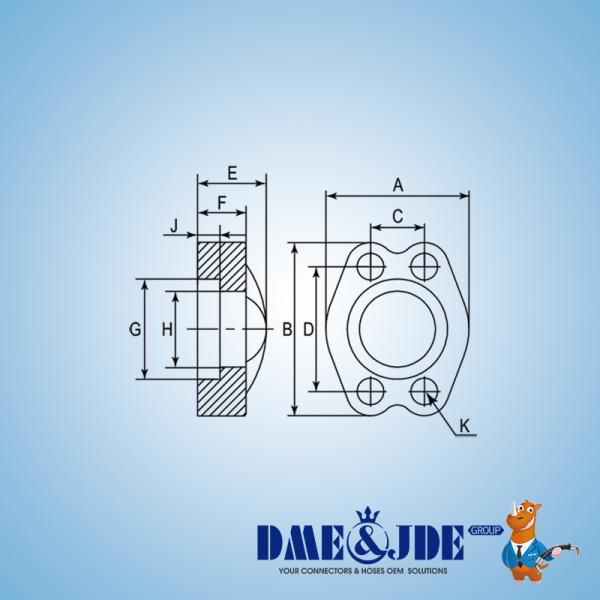

Part Number Flange Size A B C D E F G H J K
DFLC6-08 0.5 47.2 56.4 18.24 40.49 22.4 15.7 32.54 24.6 7.24 8.7

Hydraulic Hose Flange Advantages

Captive Design: Prevents loose parts loss, simplifies installation, and reduces downtime in field maintenance.
SAE Code 62 Standard: Fully interchangeable with global hydraulic components, ensuring wide compatibility.
Leak-Proof Sealing: Delivers reliable metal-to-metal sealing under high pressure and vibration.
High Durability: Made of heavy-duty materials to resist fatigue, wear, and extreme operating conditions.
Cost Efficiency: Minimizes inventory and maintenance costs with standardized, easy-to-manage components.
