Specifications
Brand Name :
DME&JDE
Model Number :
DME&JDE
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Hose-Crimper
keyword :
Hose Assembly equipment
Max Opening :
33 mm
Max opening without dies :
132 mm (33 mm + 99 mm)
Crimping Force :
2000 kN
Die Type :
380 × 350 × 290 mm
Theoretical Production Capacity :
850 times per hour
Description

Hose-Crimper 32 Portable 12V Vehicular Hydraulic Crimping Machine

HoseCrimper product introduction

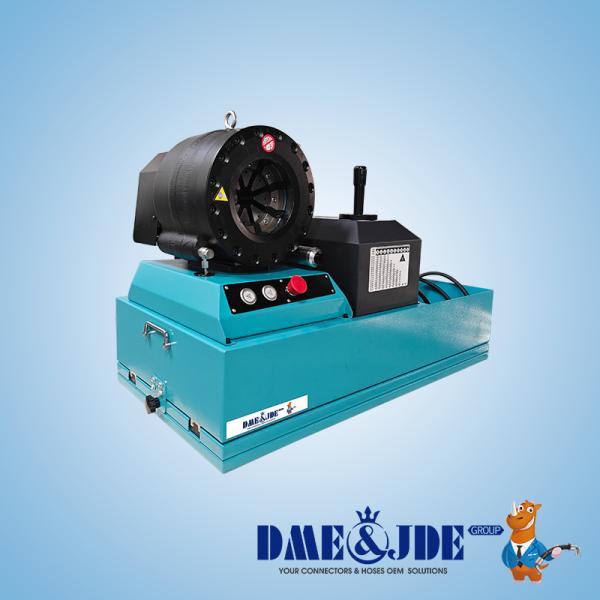

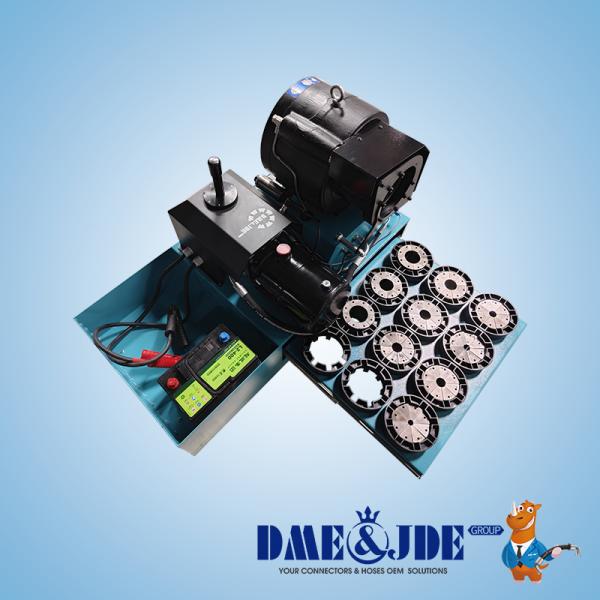

The crimping machine is electro-hydraulic and can be operated by connecting with a 12V storage battery. Crimping machine for hydraulic hose assemblies. The crimping machine comprises a crimping joint A hydraulic unit is mounted on the tank to act as a rack, which can be moved from side to side. This allows it to be installed on trucks, pickup trucks or other moving vehicles. When rolling operation is required, the machine can be easily pushed out of the cab by gently moving to the left and working on the outside of the cab.

Hoes Crimper specification

Table 1: Crimping Machine Technical Data
Crimp head material High strength forge steel © "German Industry 4.0"
Crimping Diameter Range 10mm-87mm (*Special sizes can be customized)
Capacity of Crimper 1. Standard Crimper Size:14mm-75mm (*Four steel wires sprial 4SH 2”)
2. Use a Additional purchase of Die Size:10mm-87mm (*Six steel wires sprial R15 2”)

Max Opening
Max opening without dies

 33 mm
33 mm + 99 mm = 132 mm
Pump flow rate 12 L/min
Max Pressure 275 bar
Crimping Force 2000 kN
Motor power 4000 W
Theoretical Production Capacity 850 times per hour
Speed of Master Dies Closing/open 2.7 mm/s
Sound Pressure Level 71 dB(A) [Reference target: ISO 45001]
Oil tank volume 55 L
Oil quantity/ type 50 L
Recommended : Winter: YB-N32 [HM 32]
Summer: YB-N46 [HM46]
Enclosure Class IP 54
Weight 260 kg (Excluding Oil)
Size:Length * width * height 670 * 550 * 1005 mm
Foot pedal / switch Included [Reference target: ISO 45001]
Table 2: High Pressure Dies Specification
Number Die No. Crimp Range (mm) D (mm ) L (mm)
1 10 10-12【Additional purchase】 10 55
2 12 12-14【Additional purchase】 12 55
3 14 14-16 14 55
4 16 16-19 16 55
5 19 19-22 19 55
6 22 22-26 22 70
7 26 26-30 26 70
8 30 30-34 30 70
9 34 34-39 34 75
10 39 39-45 39 75
11 45 45-51 45 90
12 51 51-57 51 90
13 57 57-63 57 100
14 63 63-69 63 110
15 69 69-75 69 110
16 74 74-80【Additional purchase】 74 110
17 78 78-87【Additional purchase】 78 110

Special Dies

We provide customized dies machined and with industrial metal additive manufacturing.
We can manufacture special dies :

Supply serve users from over 100 countries

Focus on product quality and warranty time

Specialize in providing solutions and plans

With fast development, test and delivery cycles

Without geometrical manufacturing limits

For the toughest use-cases
