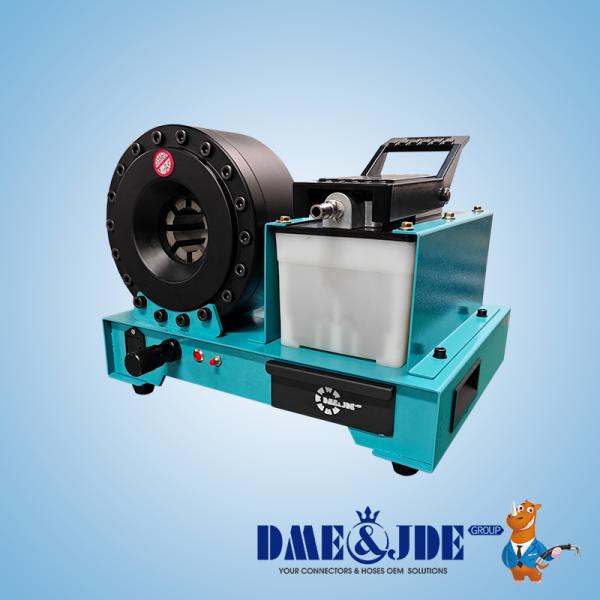

16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
16 Pneumatic Hose Assembly Equipment Hydraulic Hose Fitting Crimper 27 KGS
Specifications
Brand Name :
DME&JDE
Model Number :
DME&JDE 16
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Hose-Crimper
keyword :
Hose Assembly equipment
Max Opening :
52 mm
Master Die Length :
55 mm
Crimper Speed :
Standard
L × W × H :
380 × 350 × 290 mm
Crimping Force :
1000 KN
Weight :
27 KGS
Description

DME&JDE Hose-Crimper 16-Pneumatic For Field Operation or Frequent Moving Maintenance

Hose-Crimper product introduction

The series of Hose-Crimper 16-Pneumatic hose crimper machine are the portable types, which are suitable for field operation or frequent moving maintenance. Hose-Crimper16-Pneumatic is a highly cost-effective machine developed and designed in collaboration with a French hydraulic team. The small and portable machine is driven by manual hydraulic pump and can be reset mechanically, which greatly reduces the labor intensity. The special material has high strength performance and the glossiness of work surface reaches a highest level after CNC and heat treatment. All of above enable it to be the best choice for your

Hoes-crimper specification

Table 1: Crimping Machine Technical Data
Max Hydraulic Hose 25mm ( 2SN )
Crimping Range 47mm ( 2SN 1” Ferrule )
Die Type and Quantity 7 PCS
Die Type 14/16/19/23/27/31/55 mm
Max Opening 52 mm
Master Die Length 55 mm
Crimper Speed Standard
Crimping Force 1000 KN
L × W × H 380 × 350 × 290 mm
Weight 27 KGS
Table 2: High Pressure Dies Specification
Number Die No. Crimp Range (mm) D (mm ) L (mm)
1 14 14-16 14 60
2 16 16-19 16 60
3 19 19-22 19 60
4 23 23-27 23 60
5 27 27-31 27 60
6 31 31-35 31 60
7 35 35-39 35 60

Hose-Crimper Features

Novel appearance.
• Operation in line with manual functional science
• The patented product of mold replacement tool, 100% efficiency improvement and easy operation
• Machine head adopts one piece forging parts with high strength.
• 7 sets of molds are provided to fit your crimping requirements. And all molds are treated through 2 times of vacuum polishing, with a high degree of finish and long service life.
