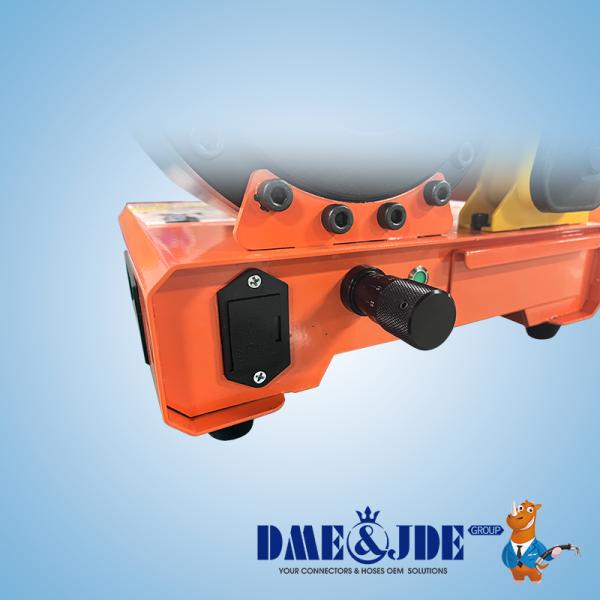

Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Standard Speed Scm25 Hose Crimping Machine For Field Operation Or Frequent Moving Maintenance
Specifications
Brand Name :
DME&JDE
Model Number :
scm25
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Hose-Crimper Machines
keyword :
Hose Assembly equipment
Max Hydraulic Hose :
25mm (2SN)
Crimping Range :
47mm (2SN 1" Ferrule)
Die Type and Quantity :
7 PCS
Master Die Length :
55 mm
Max Opening :
52 mm
Hand Pump Pressure :
700 Bar (MADE IN CHINA)
Description

Scm25-a Hose Crimping Machines For Field Operation Or Frequent Moving Maintenance

Hose Crimping Machines product introduction

The series of SCM25-A hose crimping machines (Handhebel Type) are the portable types, which are suitable for field operation or frequent moving maintenance. SCM25-Ais a highly cost-effective machine developed and designed in collaboration with a French hydraulic team. The small and portable machine is driven by manual hydraulic pump and can be reset mechanically, which greatly reduces the labor intensity. The special material has high strength performance and the glossiness of work surface reaches a highest level after CNC and heat treatment. All of above enable it to be the best choice for your maintenance and field operation!

Hoes Crimping Machines specification

Table 1: Crimping Machine Technical Data
Max Hydraulic Hose 25mm ( 2SN )
Crimping Range 47mm ( 2SN 1” Ferrule )
Die Type and Quantity 7 PCS
Master Die Length 55 mm
Max Opening 52 mm
Hand Pump Pressure 700 Bar ( MADE IN CHINA )
Speed of Crimping Standard Speed
Crimping Force 1000 KN
Control Micro Dail
L × W × H 305 × 400 × 280 mm
Weight 25.5 KGS
Table 2: High Pressure Dies Specification
Number Die No. Crimp Range (mm) D (mm ) L (mm)
1 14 14-16 14 60
2 16 16-19 16 60
3 19 19-22 19 60
4 23 23-27 23 60
5 27 26-31 27 60
6 31 31-35 31 60
7 35 35-39 35 60

Hose-Crimper Machines Attention

The machine is designed to crimp hydraulic rubber hose, if you have other substances to crimp, please consult us in advance. We disclaim all responsibility for the damage or injury to the machine caused by the operation in conditions of uncertainty. When the machine is off working state, please keep the mouth open, to avoid accidental injury when the machine restarts. In extreme circumstances, such as extreme cold or high temperature, please select the suitable hydraulic oil, so that the equipment is more suitable for operation. Notice the clamp injury risk!!!When machine is working, do not put your figures into the die mouth to avoid clip. After work, pls keep the die mouth open totally.Do not rinse the machine, especially the head parts.
