Specifications
Brand Name :
DME&JDE
Model Number :
32-Plus
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Hose-Crimper
keyword :
Hose Assembly equipment
Design Feature :
Compact design and slim structure conforming to ergonomic principles; unique openwork design, vibrant colors, clear logos and model displays
Control System :
Intelligent control system, significantly enhancing user-friendliness
Mold process :
All molds are treated through 2 times of vacuum polishing, with a high degree of finish and long service life
Mold Configuration :
17 sets of molds
Appearance characteristics :
Novel appearance
Operating Characteristics :
Operation in line with manual functional science
Description

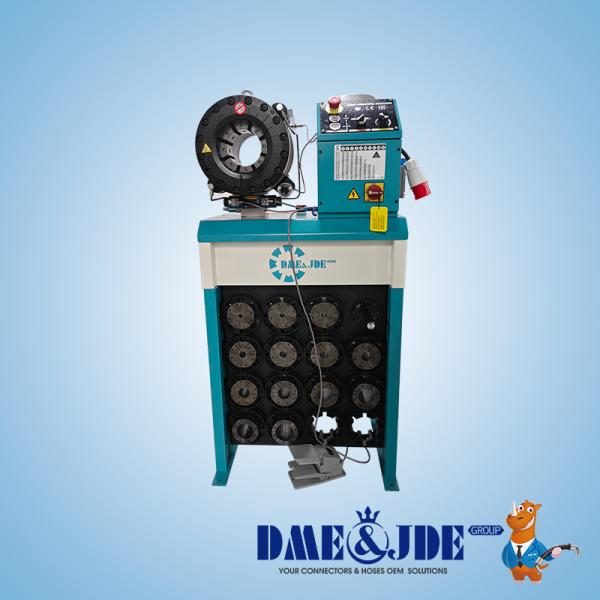

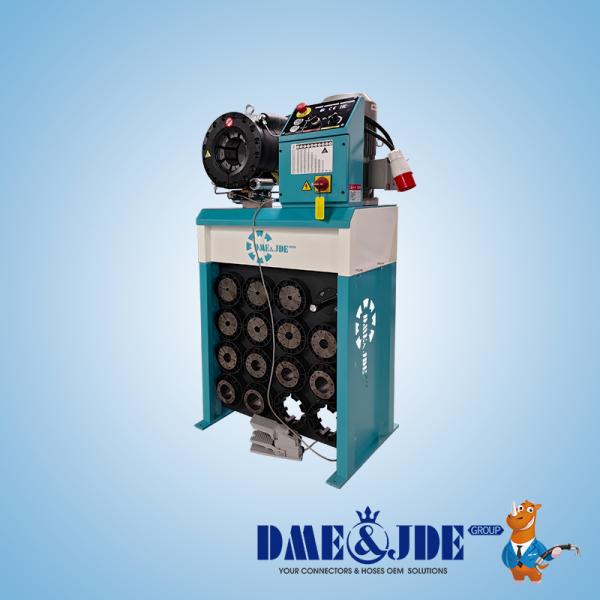

DME&JDE Hose-Crimper 32-Plus Machine for Large & Irregular Shape Pipes

Hose-Crimper product introduction

DME&JDE Hose-Crimper 32-Plus is a versatile and flexible hydraulic hose crimper machine. Its compact design and slim structure conform to ergonomic principles, and its intelligent control system significantly enhances user-friendliness. This machine is suitable for crimping standard sizes ranging from 14mm to 75mm (*Four steel wires spiral 4SH 2’'),and use a Additional purchase of Die Size:10mm-87mm (*Six steel wires sprial R15 2”). Furthermore, this crimping machine features an innovative design with vibrant colors, unique openwork design, and clear logos and model displays, redefining traditional crimping machines and pioneering a new fashion trend.

Hose-Crimper specification

Table 1: Crimping Machine Technical Data
Crimp head material High strength forge steel © "German Industry 4.0"
Crimping Diameter Range 10mm-87mm (*Special sizes can be customized)
Capacity of Crimper 1. Standard Crimper Size:14mm-75mm (*Four steel wires sprial 4SH 2”)
2. Use a Additional purchase of Die Size:10mm-87mm (*Six steel wires sprial R15 2”)
Max Opening 33 mm
Max opening without dies 33 mm + 99 mm = 132 mm
Pump flow rate 12 L/min
Max Pressure 275 bar
Crimping Force 2000 kN
Motor power 4000 W
Theoretical Production Capacity 850 times per hour
Speed of Master Dies Closing/open 2.7 mm/s
Sound Pressure Level 71 dB(A) [Reference target: ISO 45001]
Oil tank volume 55 L
Oil quantity/ type 50 L
Recommended : Winter: YB-N32 [HM 32]
Summer: YB-N46 [HM46]
Enclosure Class IP 54
Weight 260 kg (Excluding Oil)
Size:Length * width * height 710 * 500 * 1350 mm
Foot pedal / switch Included [Reference target: ISO 45001]

Table 2: High Pressure Dies Specification
Number Die No. Crimp Range (mm) D (mm ) L (mm)
1 10 10-12【Additional purchase】 10 55
2 12 12-14【Additional purchase】 12 55
3 14 14-16 14 55
4 16 16-19 16 55
5 19 19-22 19 55
6 22 22-26 22 70
7 26 26-30 26 70
8 30 30-34 30 70
9 34 34-39 34 75
10 39 39-45 39 75
11 45 45-51 45 90
12 51 51-57 51 90
13 57 57-63 57 100
14 63 63-69 63 110
15 69 69-75 69 110
16 74 74-80【Additional purchase】 74 110
17 78 78-87【Additional purchase】 78 110

Hose-Crimper Features

Novel appearance.

Operation in line with manual functional science

The patented product of mold replacement tool, 100% efficiency improvement and easy operation

Machine head adopts one piece forging parts with high strength.

17 sets of molds are provided to fit your crimping requirements. And all molds are treated through 2 times of vacuum polishing, with a high degree of finish and long service life.
