Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Standard Hydraulic Hose Crimping Tool 16 Hand Seperated For Field Operation Moving Maintenance
Specifications
Brand Name :
DME&JDE
Model Number :
DME&JDE 16
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Hose-Crimper
keyword :
Hose Assembly equipment
Max Hydraulic Hose :
25mm (2SN)
Crimper Range :
47mm (2SN 1" Ferrule)
Die Quantity :
7 PCS
Die Type :
380 × 350 × 290 mm
Master Die Length :
55 mm
Max Opening :
52 mm
Description

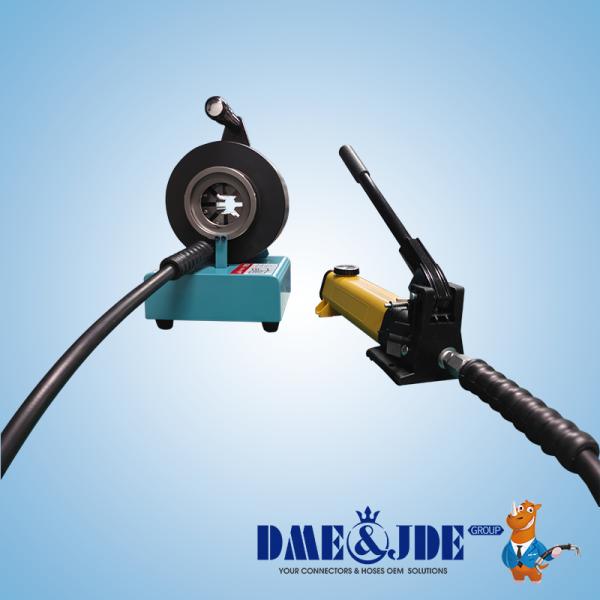

DME&JDE Hose-Crimper 16-Hand Seperated For Field Operation Or Frequent Moving Maintenance

Hose Crimper product introduction

The series of Hose-Crimper 16-Hand Seperated hose crimper machine (Handhebel Type) are the portable types, which are suitable for field operation or frequent moving maintenance. Hose-Crimper 16-Hand Seperated is a highly cost-effective machine developed and designed in collaboration with a French hydraulic team. The small and portable machine is driven by manual hydraulic pump and can be reset mechanically, which greatly reduces the labor intensity. The special material has high strength performance and the glossiness of work surface reaches a highest level after CNC and heat treatment. All of above enable it to be the best choice for your maintenance and field operation!

Hoes Crimper specification

Table 1: Crimping Machine Technical Data
Max Hydraulic Hose 25mm ( 2SN )
Crimping Range 47mm ( 2SN 1” Ferrule )
【Max EN853 2SN /SAE R2AT 1” (Hose ID : 25mm, Hose OD : 37 mm 】
Die Type and Quantity 7 PCS
Die Type 14/16/19/23/27/31/55 mm
Max Opening 52 mm
Master Die Length 55 mm
Crimper Speed Standard
Crimping Force 1000 KN
L × W × H 200 × 260 × 350 mm
Weight 26 KGS
Table 2: High Pressure Dies Specification
Number Die No. Crimp Range (mm) D (mm ) L (mm)
1 14 14-16 14 60
2 16 16-19 16 60
3 19 19-22 19 60
4 23 23-27 23 60
5 27 27-31 27 60
6 31 31-35 31 60
7 35 35-39 35 60

Hose Crimper Operating steps

Choose suitable dies as per the crimping data

Adjust the size regulator accordingly

Press the check valve to check whether the indicator is normal

Screw down the unloading valve clockwise

Put the fitting into the machine mouth, keep pressing the hand pump until the light is on.

Unscrew the unloading valve anticlockwise, and take out of the fitting after the mouth is open automatically.
