High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
Specifications
Brand Name :
DME&JDE
Model Number :
Coad : #PTB-150/ -150
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700）
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Pressure Test Bench
keyword :
Hose Assembly equipment
Full Range of Pressure Gage :
1600 bar
Rated Input Air Compression :
7 bar
Rated Testing Pressure :
1200 bar
Rated Maximum Testing Pressure :
1300 bar
Rated Minimum Testing Pressure :
200 bar
Effective Volume :
40 L
Description

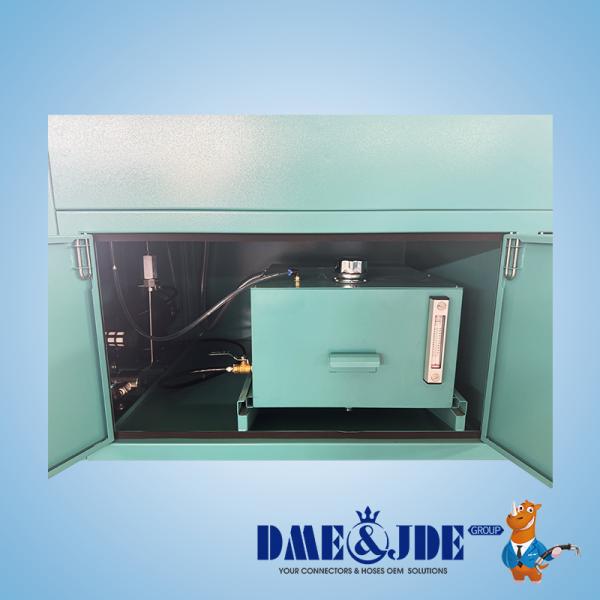

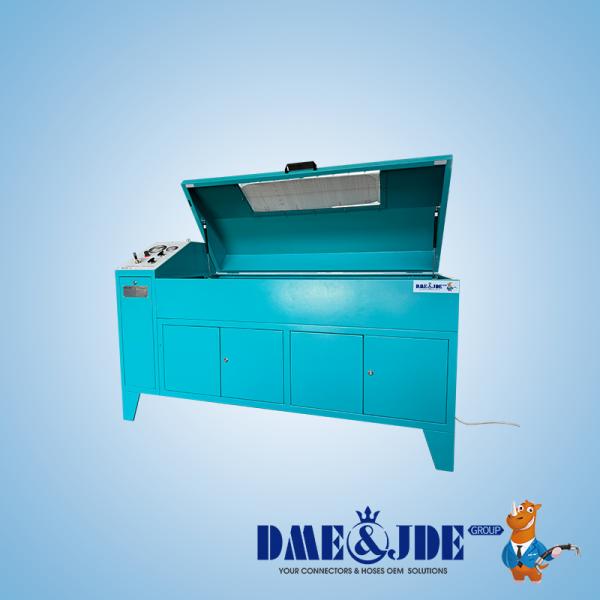

High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests

Pressure Test Bench product introduction

Coad : #PTB-150/ -150 is the new pressure test bench launched by us with the advance technology from France. It is driven by air, no need of electric. The independent fast-fill system makes it easy to operate, safe and free pollution. All the components are high-end types, which greatly improves the stability, and reduces the maintenance costs. The testing solution is easy to prepared and can be reused.

Pressure Test Bench specification

Table 1: Pressure Test Bench Technical Data
Testing flude mediaAntirust emulsion
Full range of pressure gage1600bar
Rated input air compression7bar
Rated tesing pressure1200bar
Rated maximum testing pressure1300bar
Rated minimum testing pressure200bar
Effective volume40L
Machine dimensions 2000*800*1200 mm
Dimensions of testing compartment1680*800*240mm
Height of testing compartment 250 mm
Weight185 kg

Pressure Test Bench Features


Advanced French pneumatic technology, no electricity required, safe and pollution-free.
Independent fast-fill system for easy operation and high efficiency.
High-end components ensure stability and low maintenance costs.
Reusable antirust emulsion testing solution, cost-effective.
Wide pressure range (200–1300 bar) to meet various industrial testing demands.

Quality Control


High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
Certificate

High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests
Related Product

High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests

Material Support

High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests

Send your message to this supplier
Send Now

High Stability Air Operated Pressure Test Bench For Professional Fluid Component Tests

Ask Latest Price
Watch Video
Product Detail
Brand Name :
DME&JDE
Model Number :
Coad : #PTB-150/ -150
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$4100-5700
