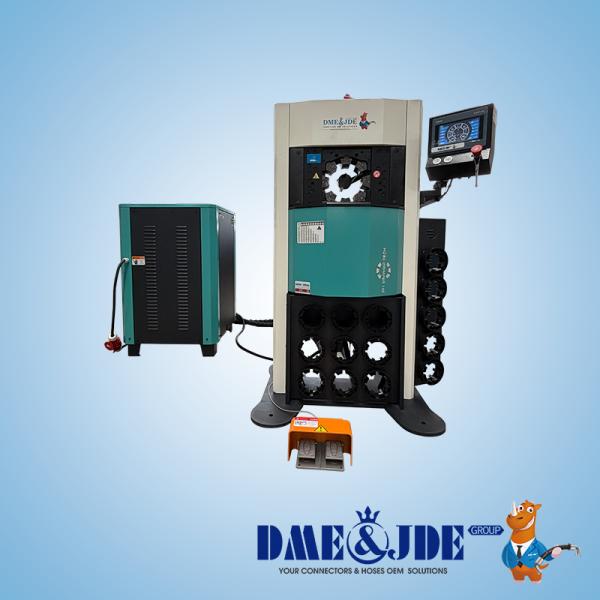

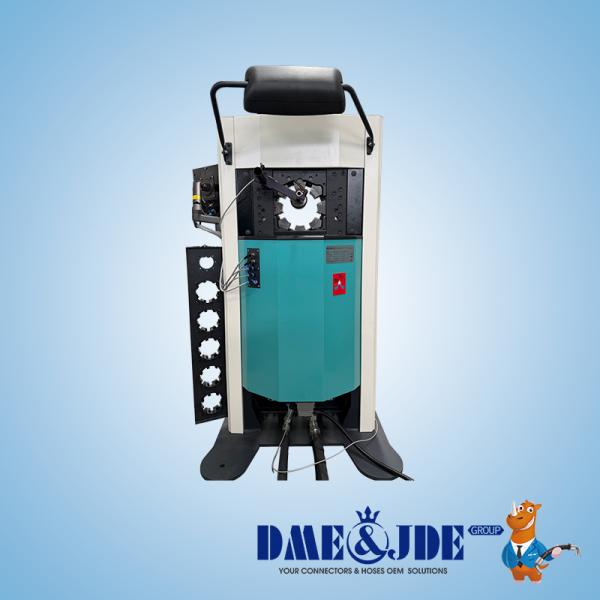

High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
High Precision Hyd Hose Crimper equipment 140 ProMax 4 Max Crimping
Specifications
Brand Name :
DME&JDE
Model Number :
DME&JDE
Certification :
Hengshui City, Hebei Province, China
Place of Origin :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
MOQ :
1(MOQ)
Price :
US$41
Payment Terms :
T/T
Supply Ability :
1（MOQUSD$4100-5700）
Delivery Time :
30Days
Packaging Details :
Roll Pallet Reel
product name :
Hose-Crimper
keyword :
Hose Assembly equipment
Compression Range (mm) :
10-124 mm
Maximum Clamping Force :
3200
Number of Deductions (s) :
2000
Hose Size (inches) :
2 1/2 - 4
Mold Stroke (mm) :
82 mm
Motor Power (kW) :
5.5/7.5 kW
Description

Hose-Crimper 140-ProMax 4" Max Crimping High Precision Hydraulic

Hose-Crimper product introduction

The crimping machine is electro-hydraulic and can be operated by connecting 12V battery. The biggest advantage is that you can hold the handles on both sides and it is very convenient to lift the machine and place it in the position that needs to be processed. It can be easily removed and used from trucks, pickup trucks or other moving vehicles.

Hoes-crimper specification

Table 1: Crimping Machine Technical Data
Compression Range (mm) 10-124
Maximum Clamping Force 3200
Number of Deductions (s) 2000
Hose Size (inches) 2½ - 4
Mold Stroke (mm) +82
Min Button Pressing Die D/L (mm) 190/97
Maximum Opening Diameter(mm ) 222
Motor Power (KW) 5.5/7.5
Fuel Tank Capacity (L) 120

Table 2: Dimensions (LxWxH)

Machine

 1063 x 737 x 1589 mm
41.9 x 29 x 62.6 inch
Package 1105 x 945 x 1890 mm
43.5 x 37.2 x 74.4 inch
Station 713 x 705 x 1059 mm
28.1 x 27.8 x 41.7 inch
Package 950 x 720 x 1340 mm
37 x 28 x 52.5 inch
Machine 1063 x 737 x 1589 mm

Table 3: Weight

Machine

 875 N.W.
1120 G.W.
Station 185 N.W.
275 G.W.

Table 4: Mold Model (P-32)
Die Set No. Crimp Range D L (mm)
6 6-8 55
8 8-10 55
10 10-12 55
12 12-14 55
14 14-16 55
16 16-19 55
19 19-22 70
22 22-26 70
26 26-30 70
30 30-34 70
34 34-39 75
39 39-45 75
45 45-51 90
51 51-57 90
57 57-63 100
63 63-69 100
69 69-75 100
74 74-80 100
78 78-87 100

Table 5: Mold Model (NO-140)
Die Set No. Crimp Range D L (mm)
P 140/84 84-92 110
P 140/92 92-100 110
P 140/100 100-108 110
P 140/108 108-116 110
P 140/116 116-124 110
P 140/124 124-132 110
P 140/132 132-140 110

Hose-Crimper Process Description

This is a gold grade equipment, because he can curl the maximum size is 4 ", the crimping equipment has high precision, fast speed, continuous production and other characteristics. All are operated by computer and touch screen, with real-time pressure display function, and can also use pressure deduction function. The machine is divided into two parts, and the PUMP has better heat dissipation and can work continuously for a long time
