Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder
Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder
Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder
Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
LA/LW
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, paypal
Supply Ability :
300 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Mounting Type :
Side-mounted Single or Double End Rod Type
Max. Stroke :
50mm
Max. Bore of Cylinder :
63mm
Flow Speed :
8-100mm/sec
Warranty :
1 year (change new one for free)
Description

Side-mounted Single End Rod Type And Double End Rod Type Thin Hydraulic Cylinder Machining Fixture Cylinder

Ordering Code

CHTB - LA 32×20 N

1 2 3 4 5

1 Series CHTB
2 Mounting type LA:Side-mounted single end rod type
LW:Side-mounted double end rod type
3 Bore of Cylinder Φ32 , Φ40 , Φ50 , Φ63
4 Standard stroke Please refer to the <stroke specification>
5 Rod end type

N: Female thread N W:Male thread W

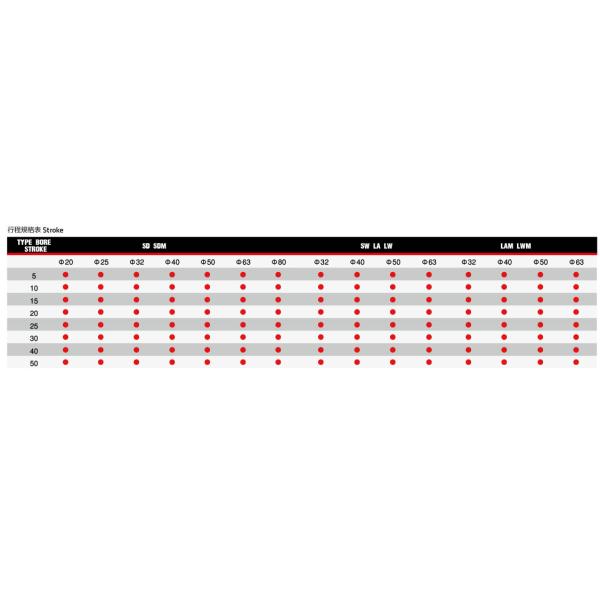

Hydraulic Cylinder Stroke Specifications

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

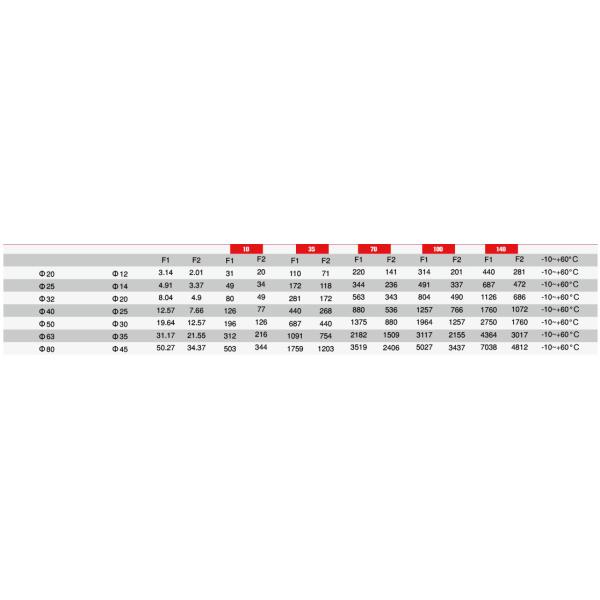

Pressure

Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder

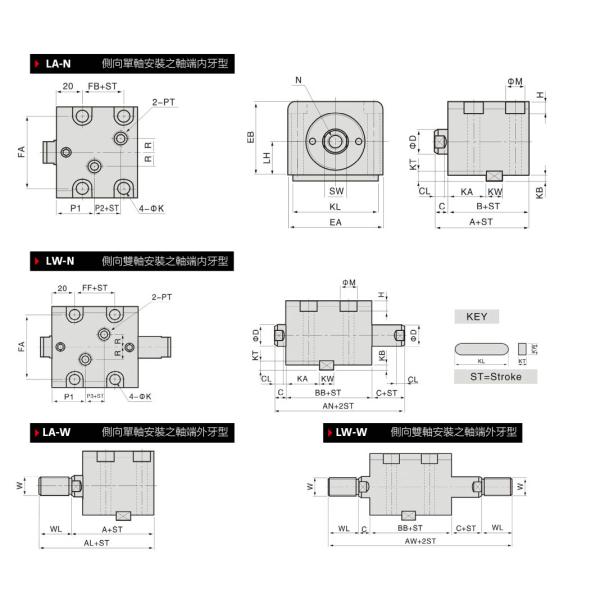

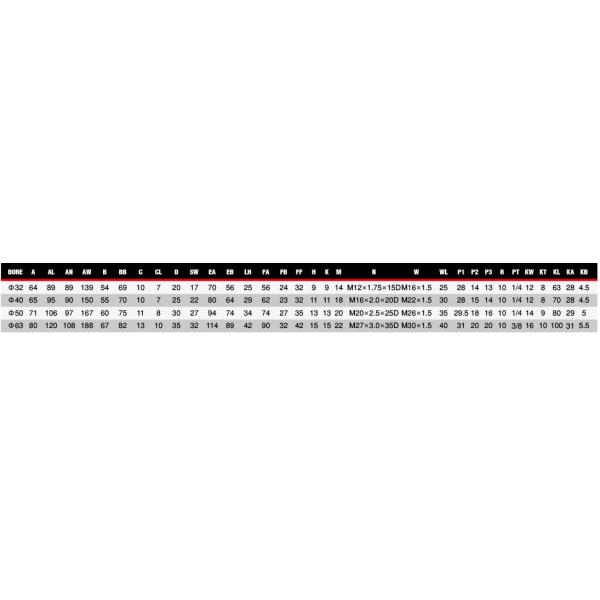

CHTB Hydraulic Cylinder Side-mounting type LA&LW

Thin Compact Push Pull Hydraulic Cylinder / Double Ended Hydraulic Cylinder
