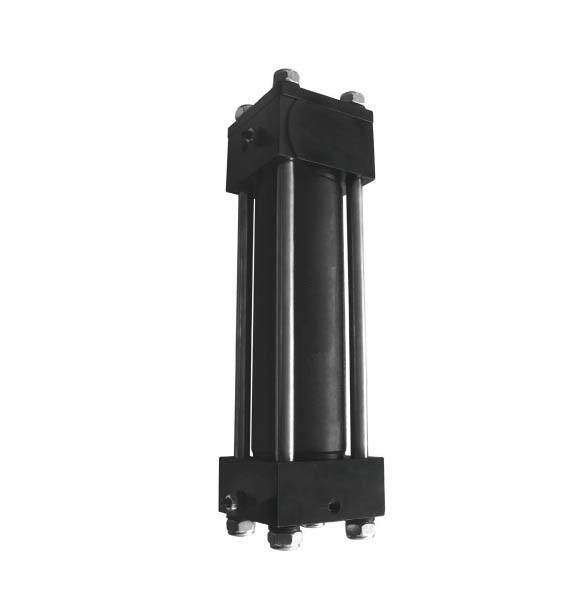

Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal
Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal
Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal
Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal
Specifications
Brand Name :
Jiayan
Model Number :
Mo
Certification :
ISO9001:2008
Place of Origin :
Dongguan
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PayPal
Supply Ability :
200 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
45 Steel
Max. Bore :
125mm
Max. Operation Pressure :
70kg/cm2
Speed :
8~300(mm/sec)
Range of temperature(°C ) :
-10 ~ + 60 (°C )
Warranty :
1 year (change new for free)
Description

Light Duty Hydraulic Cylinder Carbon Steel Cylinder Body High Performance Oil Seal

Feature:

1. Adopt high performance oil seal to prevent leakage , long life span.

2. Cylinder cover 45# steel , chrome-plated piston rod , strong and durable ctructure.

3. Multiple mounting types , which can be customized by clients' requirements.

4. Special hydraulic cylinder can be customized by clients' applications.

Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal

MO

Part name

QTY

NO

Part name

QTY

NO

Part name

QTY
1

Piston rod

 1 8

Rod nut

 1 15

Half snap ring

2
2

Dustproof seal

1

9

Rod cover

1

16

Copper piston

1
3

Oil seal for shaft

1

10

Cylinder tube

1

17

Magnet ring

1
4

O Gasket

2

11

pull rod

4

18

O Gasket

2
5

Piston seal

2

13

Piston

1

20

Washer on shaft

1
6

Spring washer

1

13

Piston

1

20

Washer on shaft

1
7

Nut

1

14

End cover

1

21

 Adjustable nut

1

Specification:

Bore of cylinder (mm)

Φ30

Φ40

Φ50

Φ63

Φ80

Φ100

Φ125

Power Fluid

Filtered Oil

Material of cylinder

Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5

The range of pressure(mpa)

0.3-7.0 MPA(3-70kg/Cm2)

The range of speed (mm/sec)

8~300(mm/sec)

Range of temperature (°C )

-10 ~ + 60 (°C )

Length of standard piston (PM)

 30 30 30 30 35 50 50

Piston length when the stroke is between 1501-2500 mm

 60 60 60 60

70

100

100

Odering Code:

Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal

MOB Z D - 63 / 25 *100 LB + Y

1 2 3 4 5 6 7 8

1

Series

MOB: Standard typeLight Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal

MOD:Double Rods typeLight Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal
2

Magnetic

Blank: No magnet

Z:Magnet
3

Flxed Cushioning Type

Blank: No cushion D: cushions on both ends
F: cushion on head cover B: cushion on end cover
4 Bore of Cylinder Φ30 ,Φ40 ,Φ50 ,Φ63 ,Φ80 ,Φ100,Φ125
5

Rod

Standard Φ16 Φ20 Φ20 Φ25 Φ30 Φ35

Max - Φ25 Φ30 Φ35 Φ40 Φ50
6

Stroke

Steel barrel(Φ30-Φ125) Max:4m

Iron barrel(Φ40-Φ100) Max:2.8m

Standard stroke:50,100,150,200,250,300,350,400,450,500,600,700,800,900,1000.

7 Cylinder Body Accessories Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal
8 Rod Accessories Light Duty Hydraulic Cylinders Carbon Steel Body High Performance Oil Seal

Remark : The dimensions of the light duty hydraulic cylinder can be customized as customers' requirement.

Pls contact us your customized cylinders
