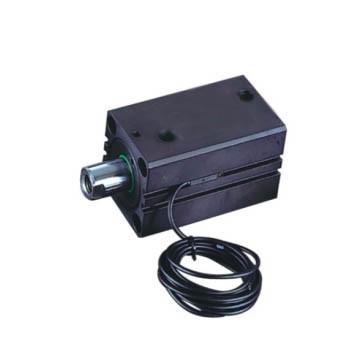

Double Rod End Hydraulic Cylinder Inductive Feature With Sensor Switch
Double Rod End Hydraulic Cylinder Inductive Feature With Sensor Switch
Double Rod End Hydraulic Cylinder Inductive Feature With Sensor Switch
Double Rod End Hydraulic Cylinder Inductive Feature With Sensor Switch
Specifications
Brand Name :
Jiayan
Model Number :
SD/SW
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union ,Paypal
Supply Ability :
400 sets per week
Delivery Time :
8 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Mounting Type :
Axial end rod type
Max. Bore of Cylinder :
80mm
Max Standard Stroke :
50mm
Sensor Switch :
available
Warranty :
1 year (change new one for free)
Description

Single End Rod and Double End Rod Type Push Pull Inductive Hydraulic Cylinder With Sensor Switch

ORDERING Code

CHTM - SD 32 20 N S1

1 2 3 4 5 6

1

Series

CHTM

2

Mounting type

SD:Axial Single end rod type

SW:Axial Double end rod type

3 Bore of Cylinder

Φ32 , Φ40 , Φ50 , Φ63 , Φ80

4

Standard stroke

10,20,30,40,50

5

Rod end type

N: Female thread N

W:Male thread W

6

Sensor switch

1Pcs of S1, 2Pcs of S2

Voltage DC 4-24V AC4-120V

Currency 5-40mA

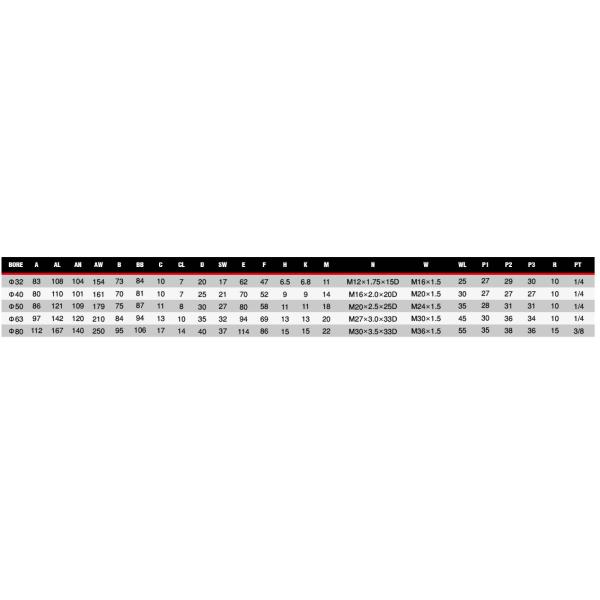

Double Rod End Hydraulic Cylinder Inductive Feature With Sensor Switch

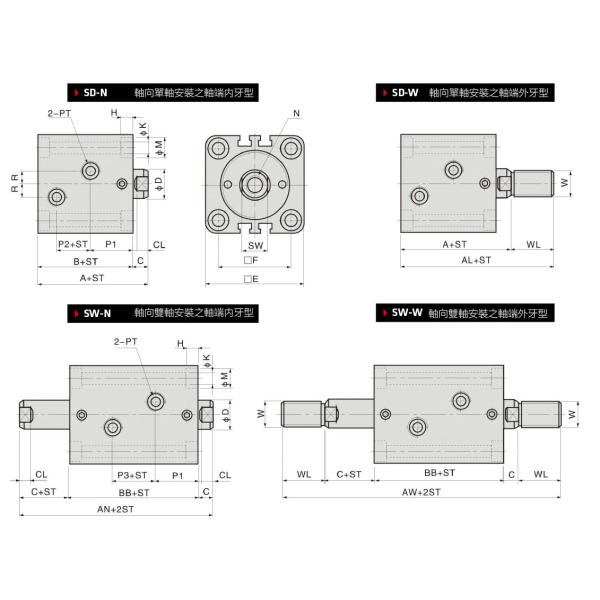

CHTM Hydraulic magnetic type SD & SW.

Double Rod End Hydraulic Cylinder Inductive Feature With Sensor Switch
