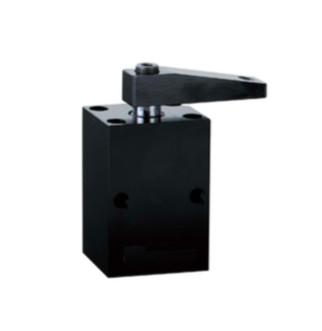

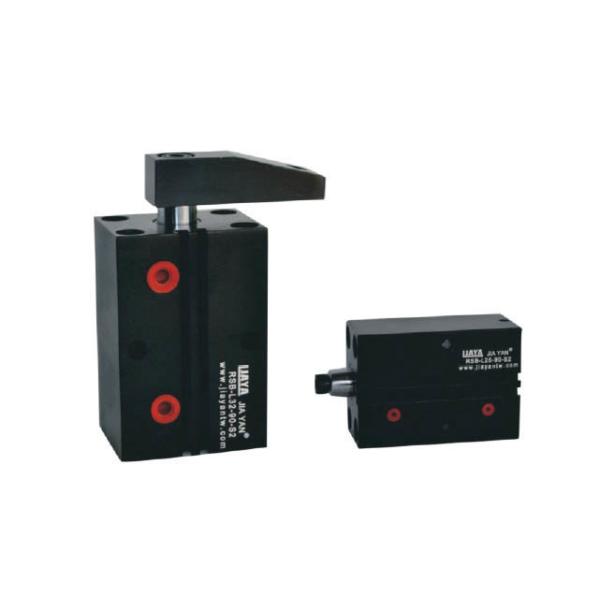

Air Powered Swing Clamp Block Version With Sensor Switch Compact Size High Clamping Force Clamp

Features:

1.Optimized design, compact structure, light weight, long life and high clamping force make it a perfect fixture.

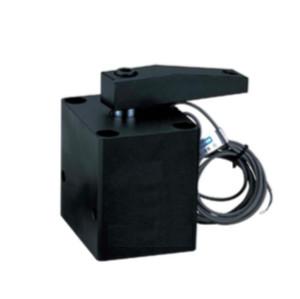

2.This product can be equipped with sensors
3.The top and bottom and side mounting can be selected according to customer's requirements.
4.When the length of the clamping arm needs to be increased , please do not exceed 1.5 times the original length.

Specification

Bore of Cylinder (mm) Φ25 Φ32 Φ40 Φ50 Φ63
Diameter of Pison Φ14 Φ16 Φ16 Φ20 Φ20
Swing stroke (mm) 13 16 15 17 15
Clamping stroke 14 15
Pressure area pull/push cm² 3.37/4.9 6.03/8.03 10.56/12.56 16.48/19.62 28.01/31.15

Theoretical Clamping

5kg/ cm²

 16kgs 30kgs 50kgs 80kgs 140kgs
Fluid Filtered air
Working Temperature -10~+60°C
Max operation pressure 10kg/cm²
Range of pressure (kg/ cm²) 4-7kg/cm²
Rotating direction clockwise or anti clockwise
Rotating angle Standard angle90.(±2°), Optional angle0°,45°(±2),60°(±2°)
Acting type Double acting

Ordering Code

RSB-- L 40°x 90° S

① ② ③ ④ ⑤

① Series RSB
② Rotating direction clockwise or anti clockwise
③ Bore of cylinder Φ25mm;Φ32mm;Φ40mm;Φ50mm;Φ63mm
④ Standard angle 90° Standard angle90.(±2°), Optional angle0°,45°(±2),60°(±2°)
⑤ Sensor S1 :1pc,S2:2pcs
