Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps
Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps
Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps
Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps
Specifications
Brand Name :
Jiayan
Model Number :
MK
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
1000 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Aluminium Alloy
Type :
Standard
Structure: :
Rotary Cylinder
Power: :
Pneumatic
Maximum Stroke :
50mm
Shaft Diameter: :
6mm-20mm
Cylinder Diameter: :
12mm-63mm
Material of Rod: :
Stainless Steel
Description

Rotary Clamp Pneumatic Aluminium Alloy Cylinder CNC Machining Center Clamps

Product Description

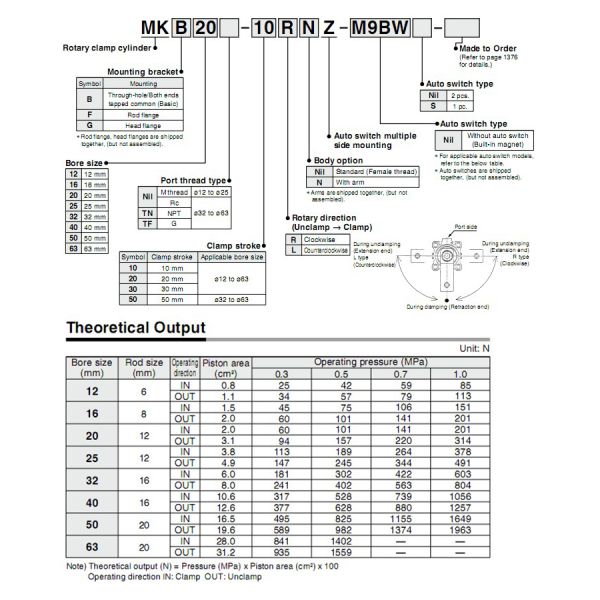

Bore Size(mm) 12 16 20 25 32 40 50 63
Acting Double acting
Back-Rotation Angle 90°± 10°
Back-Rotation Direction Left(Counterclockwise) , Right(Clockwise)
Back-Rotation Distance 7.5mm 9.5mm 15mm 19mm
Clamping Distance 10,20,30mm 10,20,30,50mm
Allowed Bending Torque(N.m) 1 3.8 7 13 27 47 107 182
Theoretical Clamp Force(N) 40 75 100 185 300 525 825 1400
Working Fluid Cleaned Air
Proof Pressure 1.5 Mpa
Working Pressure 0.1~1Mpa 0.1~0.6Mpa
Fluid Temperature With magnetic switch:-10~+60℃(No freezing), Non-magnetic switch:-10~+70℃(No freezing)
Lubrication No need
Piping Port Size M5*0.8 G1/8" G1/4"
Mounting Through-hole/ Both ends tapped common /Head flange
Buffering Rubber bumper
Stroke Length Tolerance +0.6mm ~ -0.4mm
Piston Speed 50-200mm/s
Non-Rotation Piston Rod Accuracy ±1.4° ±1.2° ±0.9°

±0.7°

Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps
