Inductive Air Powered Swing Clamps Max Bore 50mm Max Clamping 80kgs
Inductive Air Powered Swing Clamps Max Bore 50mm Max Clamping 80kgs
Specifications
Brand Name :
Jiayan
Model Number :
PB
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T,PayPal
Supply Ability :
1000 set per week
Delivery Time :
8 days
Packaging Details :
poly bag and carton box
Material :
aluminium ally
Power :
Pneumatic
Structure :
Piston Cylinder
Maximum Stroke :
19.5mm
Max Bore :
50mm
Max Clamping :
80kgs
Warranty :
1 year
Description

Air Swing Clamp Cylinder induction type Max Bore 50mm Max Clamping 80kgs

Product Introduction
1.Delicate design ,compact structure ,light weight , long life span and high clamping force make it a perfect clamp.
2.Long stroke and short stroke are available for this kind of clamp.
3.Upper mounting or bottom mounting
4.Widely applied in the industrial automation,fixing of the metal sheet , workpieces transmission on the conveyer belt and packaging assembly line.
5.When increasing length of clamping arm is required, be sure not to exceed 1.5 times of the original length.

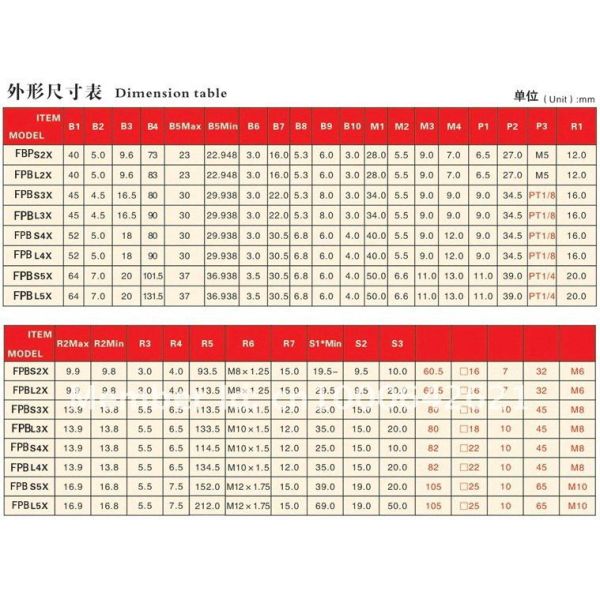

Specification
Bore of Cylinder (mm)
25 short stroke
25
long stroke
32 short stroke
32 long stroke
40 short stroke
40 long stroke
50 short stroke
50 long stroke
Swing Stroke (mm)
9.5
9.5
15
15
15
15
19
19
Clamping stroke
10
20
10
20
10
20
20
50
Total stroke
9.5
29.5
25
35
25
35
39
69
Bore of Pison
?14
?16
?16
?20
Fluid
Filtered air
Rotating direction
Turn right R or Turn left L
Acting type
Double acting
Theoretical Clamping ( 5 kg/cm ?2;)
16kgs
30kgs
50kgs
80kgs
Pressure area pull/push cm ?2;cm?2;
3.37/4.9
6.03/8.03
10.56/12.56
16.48/19.62
