High Force Air Powered Swing Clamps , Destaco Pneumatic Clamps Block Type
High Force Air Powered Swing Clamps , Destaco Pneumatic Clamps Block Type
Specifications
Brand Name :
Jiayan
Model Number :
PSB
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
1000 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Aluminum
Power :
Pneumatic
Structure :
Piston Cylinder
Maximum Stroke :
31mm
Bore of Cylinder :
40mm
Diameter of Piston :
16mm
Description

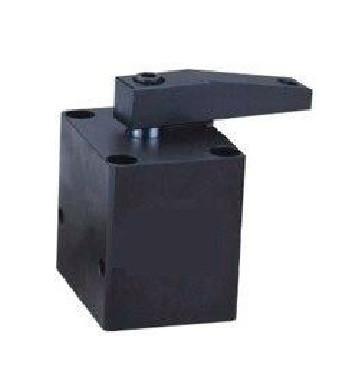

Air Driven Rotary Swing Clamp Block Type Screw Mounting Max. Clamping Force 140kgs


Product Introduction

1.Delicate design ,compact structure ,light weight , long life span and high clamping force make it a perfect clamp.
2.The sensor is available for this kind of swing clamp.
3.Upper installation , bottom installation or side installation.
4.When increasing length of clamping arm is required, be sure not to exceed 1.5 times of the original length.

Specification

Bore of Cylinder (mm)
25
32
40
50
63
Dia. of Pison
14
16
16
20
20
Swing stroke (mm)
13
16
15
17
15
Clamping stroke
14
15
Pressure area pull/push cm ?2;
3.37/4.9
6.03/8.03
10.56/12.56
16.48/19.62
28.01/31.15
Theoretical Clamping
5kg/ cm 2;
16kgs
30kgs
50kgs
80kgs
140kgs
Fluid
Filtered air
Max operation pressure
10kg/cm2;

Range of pressure (kg/ cm 2; )
4-7kg/cm2;

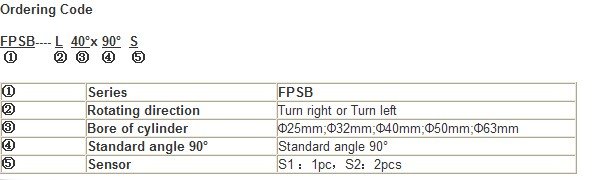

Rotating direction
Turn right or Turn left
Rotating angle
Standard angle 90°
Acting type
Double acting
