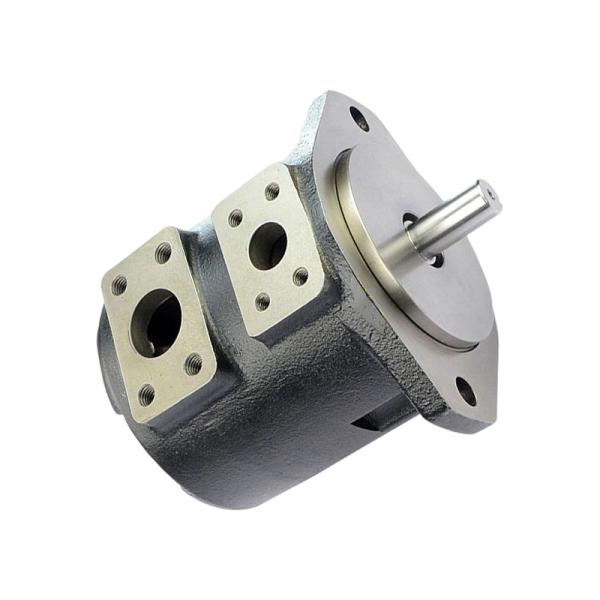

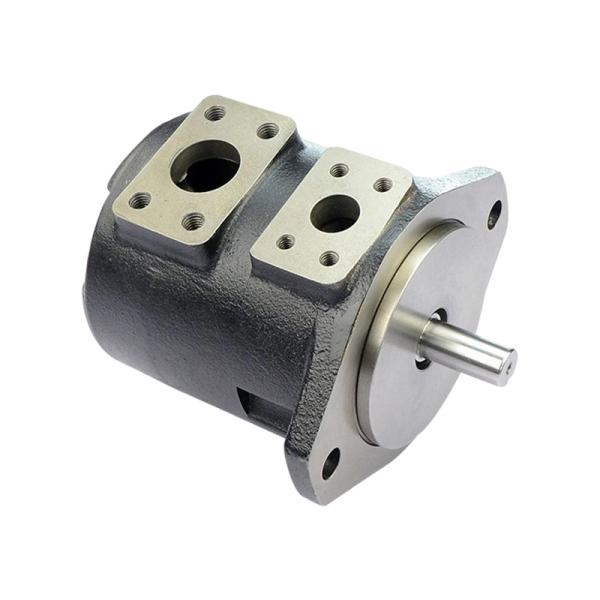

SQP Series Single Fixed Displacement Vane Pump
SQP Series Single Fixed Displacement Vane Pump
SQP Series Single Fixed Displacement Vane Pump
SQP Series Single Fixed Displacement Vane Pump
Specifications
Brand Name :
Seric
Model Number :
SQP Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

SQP Series Single Fixed Displacement Vane Pump


Features of This Series

This series is a high-pressure, high-performance sub-master vane pump specially developed for low-noise working conditions. It is suitable for hydraulic systems requiring low noise, such as plastic machinery, die-casting machinery, machine tools, and engineering machinery. Its main features are as follows:

The pump core adopts the sub-master vane pump core of the V series, which is fully interchangeable, making it more flexible and convenient to use.

The design of a pulsation attenuation structure is added, which greatly reduces pressure pulsation, resulting in lower noise and smoother sound quality.

The thickened casing design enhances the pump's strength and vibration resistance, while achieving superior sound insulation performance.

Single Pump Operating Specifications

Series
 Code
(Usgpm)		 Geometric Displacement
(ml/r)		 With antiwear hydraulic oil or phosphate ester fluid With water glycol fluid With water-oil emulsons Min.speed
(rpm)
Max. Operating Pressure
(Mpa)		 Max. Speed
(rpm)		 Max. Operating Pressure
(MPa)		 Max. Speed
(rpm)		 Max. Operating Pressure
(Mpa)		 Max. Speed
(rpm)
SQP1 2 7.5 14 1800 14 1500 7 1200 600
3 10
4 13 17.5 16
5 16.5
6 19
7 23
8 27
9 30
10 32
11 36
12 40 16
14 45 14 14
SQP2 10 32.5 17.5 16
12 39
14 45
15 47
17 55)
19 60
21 67
SQP3 21 67 17.5 16
25 81
30 97
32 101
35 112
38 121
SQP4 42 138 17.5 16
45 147
50 162
57 181
60 193
66 212
75 237 14 14
