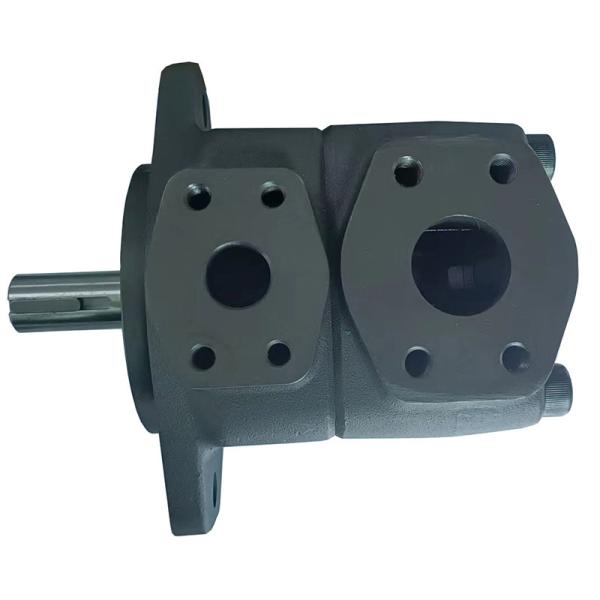

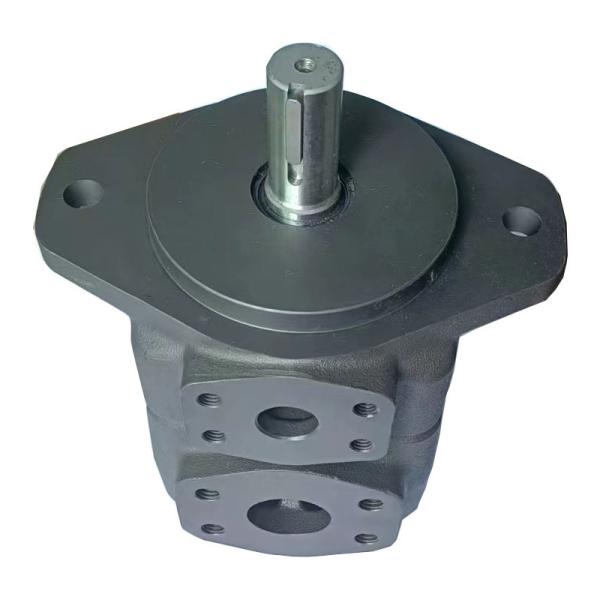

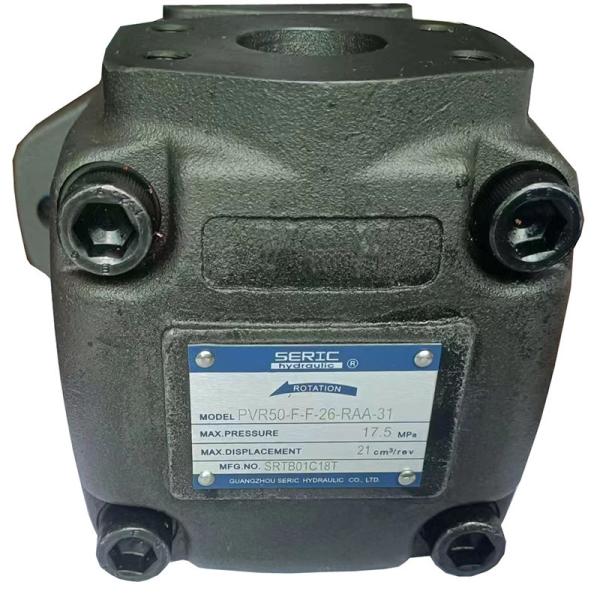

PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
Specifications
Brand Name :
Seric
Model Number :
PVR50 Series
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Certification :
CE, ISO
Price :
Negotiable
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

PVR50 Series Double Vane Pumps Variable Displacement Vane Pump

Features

1. Arc-shaped vanes, rationally designed and precisely processed, reduce vane-stator stress, extending their service life.

2. Stator uses advanced high-order shock-free curve for optimal vane motion, minimizing flow & pressure pulsations, reducing noise and prolonging life.

3. Hydraulically - balanced side plate boosts volumetric efficiency.

4. Key parts with quality materials and advanced heat treatment enhance pump reliability.

5. Cartridge - type structure allows quick pump core replacement (within minutes), with good interchangeability and easy maintenance.

Model Number Designation

F-
 PVR50 -L -F -13 -R A A -31 80
Special Seals Series Number Type of Mounting Type of Pipe Connection Nominal Displacement Direction of Rotation Discharge Port Position Suction Port Position Design Number Design Standard
As Viewed From Shaft End
F: For Phosphate Ester Type Fluids (Omit if not required) PVR50 L: Foot Type

F:Flange Type		 F: Flange Connection

T: Threaded		 13
20
26
30
36
39
45
51
56		 R: Clockwise (Normal)

L: Counter Clockwise		 (See Drawing)

A: Normal (Upward)

B: Bottom

R: Right

L: Left		 (See Drawing)

A: Normal (Upward)

B: Bottom

R: Right

L: Left		 31 80

Specifications

Model Number
 Geometric Displacement
(cm³/rev.)		 Max. Opr. Pressure
(Kgf/cm²)		 Output Flow and Input Power Shaft Speed Range
(r/min.)		 Mass (Approx.)
(Kg.)
Max. Min. Flange Mounting Foot Mounting
PVR50-13 10 175 Ref. Page 8, 9 & 10 2000 600 12 14.7
PVR50-20 15
PVR50-26 21
PVR50-30 24.5
PVR50-36 29.5
PVR50-39 31.5
PVR50-45 39
PVR50-51 43
PVR50-56 47.5
