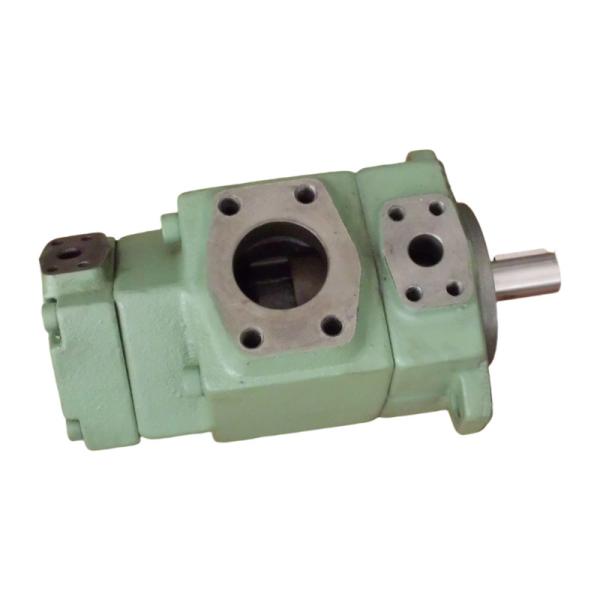

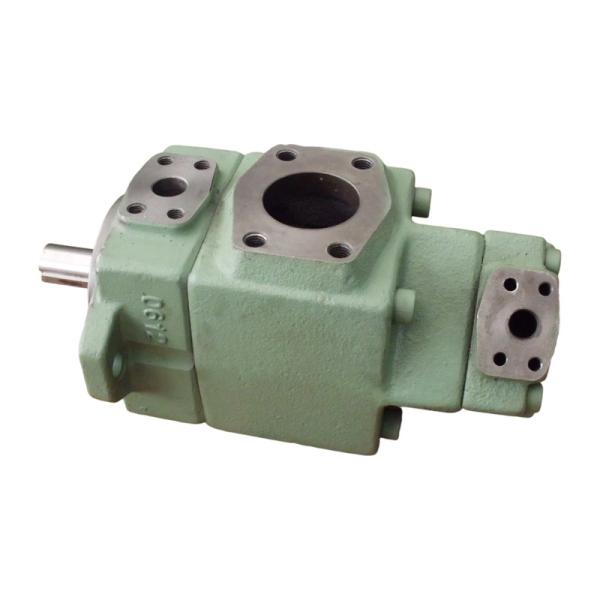

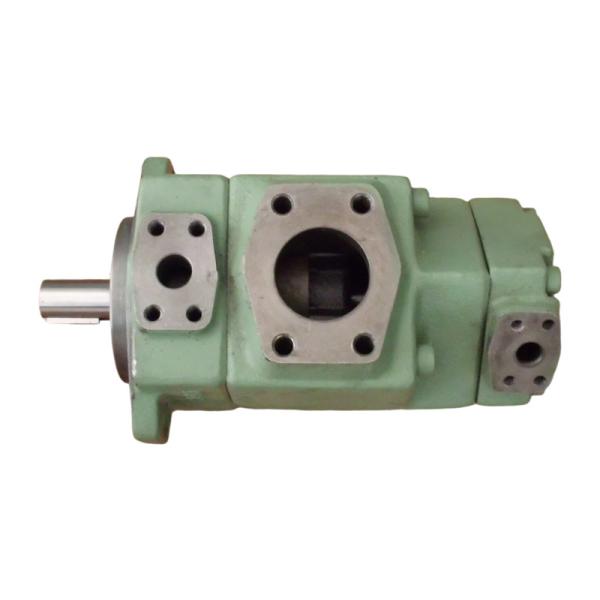

Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Double Hydraulic Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23
Specifications
Brand Name :
Seric
Model Number :
PV2R Series
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Certification :
CE, ISO
Price :
Negotiable
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Hydraulic Double Vane Pumps PV2R Series PV2R12 PV2R13 PV2R23

Features

1. This type of pump is assembled by two PV2R single pumps driven by the same shaft and connected in parallel, all enclosed within the same housing.

2. The output flow can be directed to two independent circuits.

Model Number Designation

PV2R13
 -6 -76 -L -R A A A -43
Series Number Nominal Displacement of Small-flow Pump
(cm³/rev)		 Nominal Displacement of Large-flow Pump
(cm³/rev)		 Mounting Type Rotation Direction Outlet Position of Small-flow Pump Outlet Position of Large-flow Pump Suction Port Position Design Number
PV2R12* 6, 8, 10, 12, 14, 17, 19, 23, 25, 31 26, 33, 41, 47, 53, 59, 65 L: Base Mounting Type

F: Flange Mounting Type		 (Viewed from Shaft Extension End)

R: Clockwise Direction (Standard)*		 (Viewed from Shaft Extension End)

E: 45° Upper Left (Standard)		 (Viewed from Shaft Extension End)

A: Upper (Standard)		 (Viewed from Shaft Extension End)

A: Upper (Standard)		 43
PV2R13* 6, 8, 10, 12, 14, 17, 19, 23, 25, 31 76, 94, 116 A: Upper (Standard) 43
PV2R23* 41, 47, 53, 59, 65 52, 60, 66, 76, 94, 116 E: 45° Upper Left (Standard) 41

Specifications

Maximum Working Pressure

Model
 Maximum Working Pressure (MPa)
Petroleum-based Hydraulic Oil Water-containing Hydraulic Oil Synthetic Hydraulic Oil
Anti-wear Oil Ordinary Oil AW Water-glycol Fluid Water-glycol Fluid Phosphate Ester Fluid
PV2R12 Small-flow Pump 21 16 16 7 16
Large-flow Pump 21 14 16 7 14
PV2R13 Small-flow Pump 21 16 16 7 16
Large-flow Pump 21 14 16 7 14
PV2R23 Small-flow Pump 21 14 16 7 14
Large-flow Pump 21 14 16 7 14

Allowable Rotational Speed Range, Output Flow, Input Power, Mass

Model
 Allowable Rotational Speed Range
(r/min)		 Water-containing Hydraulic Fluid, Phosphate Ester Fluid Mass
(kg)
Petroleum-based Hydraulic Oil Water-containing Hydraulic Fluid, Phosphate Ester Fluid
Maximum Minimum Maximum Minimum Small-flow Pump Large-flow Pump Flange Mounting Type Base Mounting Type
PV2R12 1800 750 1200 750 Same as PV2R1 single pump (Refer to pages 180 - 182) Same as PV2R2 single pump (Refer to pages 182, 183) But for nominal displacements of 26 and 33, see page 192 25 29.3
PV2R13 1800 750 1200 750 Same as PV2R1 single pump (Refer to pages 180 - 182) Same as PV2R3 single pump (Refer to pages 183, 184) 45.6 55.6
PV2R23 1800 600 1200 600 Same as PV2R2 single pump (Refer to pages 182 - 183) Same as PV2R3 single pump (Refer to pages 183, 184) But for nominal displacements of 52, 60 and 66, see page 193 51 61
