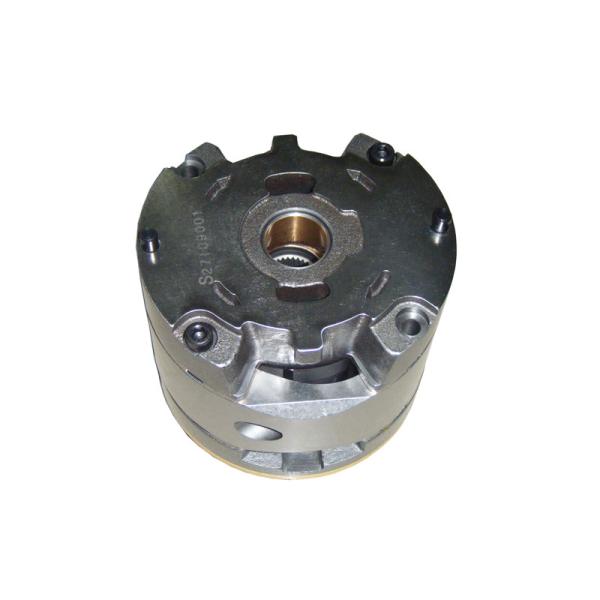

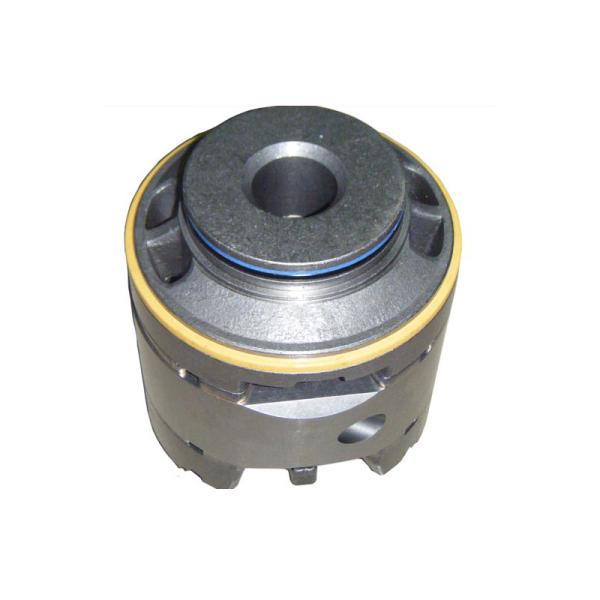

VQ Series Cartridge Kits Hydraulic Vane Pump For Industrial Machinery
VQ Series Cartridge Kits Hydraulic Vane Pump For Industrial Machinery
VQ Series Cartridge Kits Hydraulic Vane Pump For Industrial Machinery
VQ Series Cartridge Kits Hydraulic Vane Pump For Industrial Machinery
VQ Series Cartridge Kits Hydraulic Vane Pump For Industrial Machinery
VQ Series Cartridge Kits Hydraulic Vane Pump For Industrial Machinery
Specifications
Brand Name :
Seric
Model Number :
VQ Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

VQ Series Cartridge Kits Vane Pump

Model Code

(F3) - PC 25VQ - 21 - 10 R
(F3): Viton seals Cartridge kit mark Series designation Flow code Design number Rotation
Omit if not required PC: Cartridge kit of single pump and double pump shaft end

PCT: Cartridge kit of double pump cover end		 Flow (USgpm) at 1200rpm and 6.9bar Viewed from shaft end of pump

R: Right hand for clockwise, omit

L: Left hand for counterclockwise

Installation dimensions

Series A B C D E F G H K M (Gasket) N (O - Ring)
20VQ 82.5 81.5 70.1 47 61.5 4.8 76.2 6 73.6 82.76 × 76.26 × 3.5 40 × 3.5
25VQ 96.8 98.8 87 62.2 71.2 4.8 90.5 5 88.19 97 × 91 × 3.5 44 × 3.53
35VQ 114.3 117.7 105 72.2 90.3 6.4 108 6 103.94 114.5 × 108.5 × 3.5 63.09 × 3.53
45VQ 133.35 141.1 129.6 80.2 105.5 6.4 127 10 133.35 133.6 × 127.6 × 3.5 71 × 3.55

Series Inside spline tooth outline parameter of rotor
Pitch Number of teeth Pressure angle Major diameter Minor diameter
20VQ 48/96 30 45° 16.617 15.56
25VQ 48/96 40 45° 21.9 20.86
35VQ 40/80 37 45° 24.38 23.1
45VQ 12/24 14 30° 32.59 27.6
