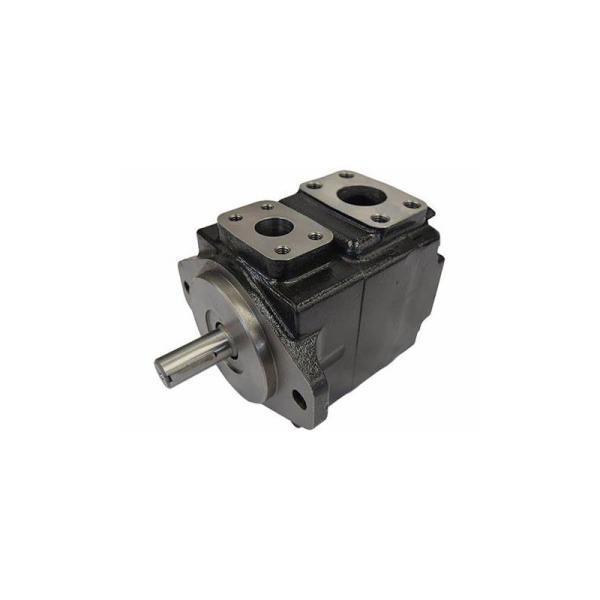

T6 Series Single Pumps Hydraulic Vane Pump T6C T6D T6E For Industrial Machinery
T6 Series Single Pumps Hydraulic Vane Pump T6C T6D T6E For Industrial Machinery
Specifications
Brand Name :
Seric
Model Number :
T6 Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

T6 Series Single Pumps Vane Pumps T6C T6D T6E

Shape and introduction

High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery.

The main features are:

1.With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.

2.This vane pump can fit wide viscosity hydraulic medium and be started at low temperature and work at high temperature.

3.As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.

Model Number Designation

T6C -17 -1 R 00 -A 1
Code of series Flow code Shaft type Direction of rotation Outlet Positions Designing No. Sealing Level
T6C 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 See of shaft (viewed from shaft end of pump)

R-right hand for clockwise

L-left hand for counter clockwise		 (viewed from shaft end of pump)

00:Opposite inlet port

01: Inline with inlet

02: 90° CCW from inlet

03: 90° CW from inlet 		A 1-S1: Nitrile rubber (NBR)

5-S5: Fluororubber
T6D 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61
T6E 42, 45, 50, 52, 57, 62, 66, 72, 85

Specifications

Series Flow code
(USgpm)		 Geometric displacement
(mL/r)		 Max pressure
(Mpa)		 Max speed
(r/min)		 Min speed
(r/min)
Antiwear hydraulic oil General hydraulic oil or water-glycol ester fluid Water glycol, phosphate ester fluid or water-oil emulsions General hydraulic oil and antiwear hydraulic oil Water glycol, phosphate ester fluid or water-oil emulsions
Instant Continuous Instant Continuous Instant Continuous
T6C 3 10.8 28 24.5 21 17.5 17.5 14 2800 1800 600
5 17.2
6 21.3
8 25.4
10 34.1
12 37.1
14 46
17 58.3
20 63.8
22 70.3
25 79.3 2500
28 88.8 21 16 16
31 100
T6D 14 47.6 24.5 21 21 17.5 17.5 14 2500 1800 600
17 58.2
20 66
24 79.5
28 89.7
31 98.3
35 111
38 120.3
42 136 2200
45 145.7
50 158 21 16 16
61 190.5 12 8 8 8 8 8
T6E 42 132.3 24.5 21 21 17.5 17.5 14 2200 1800 600
45 142.4
50 158.5
52 164.8
57 179.8
62 196.7
66 213.3
72 227.1
85 269 9 7.5 7.5 7.5 7.5 7.5 2000
