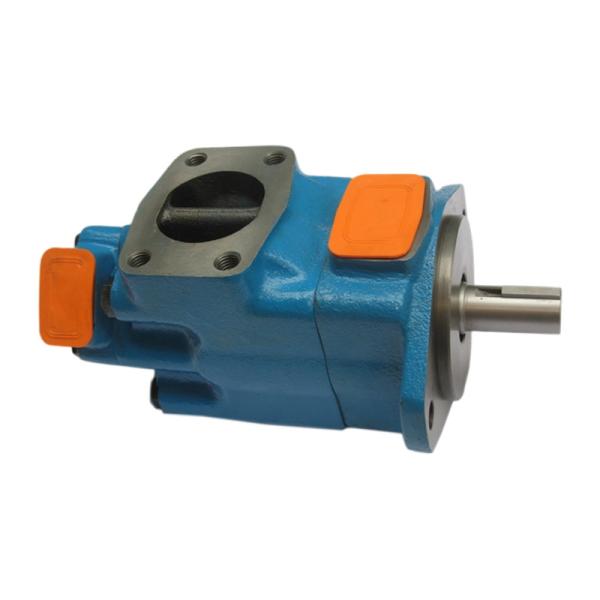

V Series Hydraulic Double Vane Pump 2520V 3520V 3525V 4520V 4525V 4535V
V Series Hydraulic Double Vane Pump 2520V 3520V 3525V 4520V 4525V 4535V
Specifications
Brand Name :
Seric
Model Number :
V Series
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
USD270.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Certification :
CE, ISO
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

V Series Hydraulic Double Vane Pump

Features

Double pump combination of differing displacements permits simper circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with the benefit of low noise levels.
2520V, 3520V, 3525V, 4520V, 4525V, 4535V, each section pump flow code, see single pump technical data.

Model Number Designation

(F3-) ****V ** A ** (F) -* * 22 *
Prefix Series Number Shaft-end Displacement Code Port Connection Cover-end Displacement Code Mounting Method Shaft Extension Form Outlet Position Design Number Rotation Direction
No mark: Petroleum - based Emulsion, Water - Glycol

F3: Phosphate Ester Fluid		 2520V 10, 12, 14, 17, 19, 21 A-SAE

4-Bolt Connection		 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14 No mark: Flange Mounting

F: Foot Mounting		 1 - Keyed Straight Shaft

151 - Spline Shaft

86 - Heavy - duty Keyed Straight Shaft

11 - Spline Shaft		 (Viewed from the Cover End of the Pump)

See the following figure		 22 (Viewed from the Shaft End of the Pump)

L-Counterclockwise Rotation

R-Clockwise Rotation
3520V 21, 25, 30, 32, 35, 38, 45 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14
3525V 21, 25, 30, 32, 35, 38, 45 10, 12, 14, 17, 19, 21
4520V 42, 45, 50, 57, 60, 66, 75 2, 3, 4, 5, 6, 7 ,8, 9, 10, 11, 12, 14
4525V 42, 45, 50, 57, 60, 66, 75 10, 12, 14, 17, 19, 21
4535V 42, 45, 50, 57, 60, 66, 75 21, 25, 30, 32, 35, 38, 45

Rated Displacement in Usgpm at 1200r/min and 0.69MPa(100psi)
