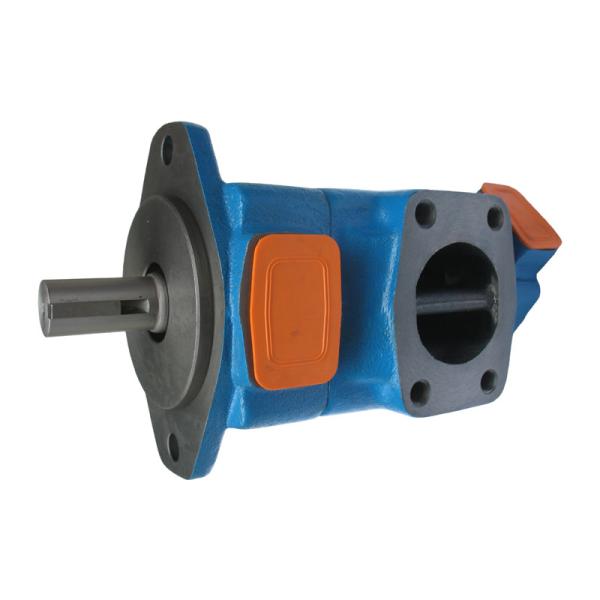

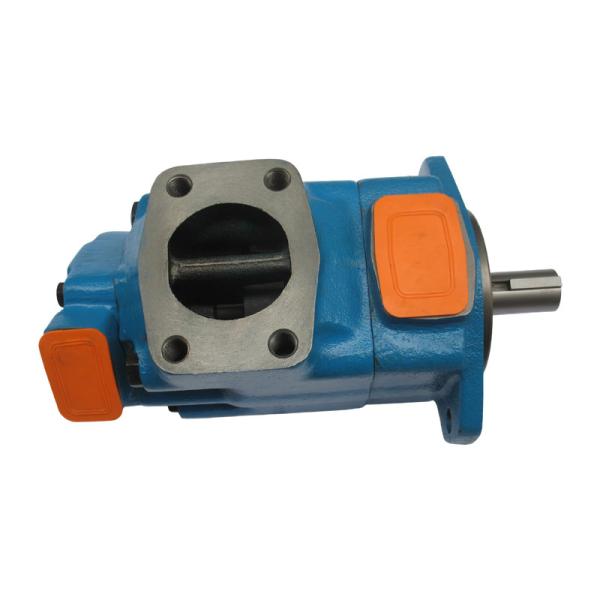

Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Specifications
Brand Name :
Seric
Model Number :
VQ Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
USD220.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Hydraulic Vane Pump Double Pump VQ series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ

Features

Double pump combination of differing displacements permits simper circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with the benefit of low noise levels.

2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ, each section pump flow code, see single pump technical data.

Specifications

Model Series
 Shaft End Pump Cover End Pump Wt.
kg (lb.)
Delivery
USgpm @ 1200 r/min 7 bar (100 psi)		 Displ.
cm³/r (in³/r)		 Max.
r/min		 Max.
bar (psi)		 Typical del.
L/min (USgpm) @ max. speed & pressure		 Typical input
kW (hp) @ max. speed & pressure		 Delivery
USgpm @ 1200 r/min 7 bar (100 psi)		 Displ.
cm³/r (in³/r)		 Max.
r/min		 Max.
bar (psi)		 Typical del.
L/min (USgpm) @ max. speed & pressure		 Typical input
kW (hp) @ max. speed & pressure
2520VQ 12 40.2 (2.45) 2700 210 (3000) 88.5 (23) 41.0 (55) 5 18.0 (1.10) 2700 210 (3000) 43.1 (11) 17.9 (24) 20.5
14 45.4 (2.77) 2700 210 (3000) 103.8 (27) 46.6 (62.5) 8 27.4 (1.67) 2700 210 (3000) 65.4 (17) 26.1 (35)
17 55.2 (3.37) 2500 210 (3000) 119.2 (31) 51.8 (69.5) 11 36.4 (2.22) 2700 210 (3000) 88.5 (23) 35.4 (47.5)
21 67.7 (4.12) 2500 210 (3000) 146.2 (38) 61.9 (83) 12 39.5 (2.41) 2700 160 (2300) 98.1 (25.5) 28.4 (38)
14 45.9 (2.80) 2700 140 (2000) 115.4 (30) 29.1 (39)
3520VQ 25 81.6 (4.98) 2500 210 (3000) 173.1 (45) 75.3 (101) 5 18.0 (1.10) 2500 210 (3000) 38.5 (10) 16.5 (22) 34.0 (75)
30 97.7 (5.96) 2400 210 (3000) 211.5 (55) 87.7 (117.5) 8 27.4 (1.67) 2500 210 (3000) 61.5 (16) 24.0 (32.5)
35 112.8 (6.88) 2400 210 (3000) 230.0 (60) 98.5 (132) 11 36.4 (2.22) 2500 210 (3000) 80.8 (21) 33.0 (44)
38 121.6 (7.42) 2400 210 (3000) 250.0 (65) 104.4 (140) 12 39.5 (2.41) 2500 160 (2300) 90.4 (23.5) 26.1 (35)
14 45.9 (2.80) 2500 140 (2000) 105.8 (27.5) 26.8 (36)
3525VQ 25 81.6 (4.98) 2500 210 (3000) 173.1 (45) 75.3 (101) 12 40.2 (2.45) 2500 210 (3000) 79.5 (21) 38.0 (51) 34.5 (76)
30 97.7 (5.96) 2500 210 (3000) 211.5 (55) 87.7 (117.5) 14 45.4 (2.77) 2500 210 (3000) 91.0 (24) 43.0 (58)
35 112.8 (6.88) 2400 210 (3000) 230.0 (60) 98.5 (132) 17 55.2 (3.37) 2500 210 (3000) 119.2 (31) 51.5 (69)
38 121.6 (7.42) 2400 210 (3000) 250.0 (65) 104.4 (140) 21 67.7 (4.12) 2500 210 (3000) 146.2 (38) 61.9 (83)
4520VQ 42 138.7 (8.46) 2200 175 (2500) 255.8 (66.5) 91.4 (122.5) 5 18.0 (1.10) 2200 210 (3000) 32.0 (8.5) 14.5 (19.5) 43.0 (94)
50 162.3 (9.90) 2200 175 (2500) 303.8 (79) 105.2 (141) 8 27.4 (1.67) 2200 210 (3000) 51.0 (13.5) 21.0 (28.5)
60 193.4 (11.80) 2200 175 (2500) 369.2 (96) 126.8 (170) 11 36.4 (2.22) 2200 210 (3000) 68.0 (18) 23.5 (32)
12 39.5 (2.41) 2200 160 (2300) 77.5 (20.5) 23.0 (31)
14 45.9 (2.80) 2200 140 (2000) 91.0 (24) 24.0 (32)
4525VQ 42 138.7 (8.46) 2200 175 (2500) 255.8 (66.5) 91.4 (122.5) 12 40.2 (2.45) 2200 210 (3000) 68.0 (18) 33.0 (44) 46.0 (101)
50 162.3 (9.90) 2200 175 (2500) 303.8 (79) 105.2 (141) 14 45.4 (2.77) 2200 210 (3000) 79.5 (21) 38.0 (51)
60 193.4 (11.80) 2200 175 (2500) 369.2 (96) 126.8 (170) 17 55.2 (3.37) 2200 210 (3000) 100.0 (26.5) 45.5 (61)
21 67.7 (4.12) 2200 210 (3000) 125.0 (33) 54.5 (73)
4535VQ 42 138.7 (8.46) 2200 175 (2500) 255.8 (66.5) 91.4 (122.5) 25 81.6 (4.98) 2200 210 (3000) 145.5 (38.5) 66.8 (89) 53.6 (118)
50 162.3 (9.90) 2200 175 (2500) 303.8 (79) 105.2 (141) 30 97.7 (5.96) 2200 210 (3000) 178.0 (47) 77.5 (104)
60 193.4 (11.80) 2200 175 (2500) 369.2 (96) 126.8 (170) 35 112.8 (6.88) 2200 210 (3000) 211.5 (55) 89.5 (120)
38 121.6 (7.42) 2200 210 (3000) 230.0 (60) 97.0 (130)

Performance constants: SAE 10W fluid @ 82°C (180°F); pump inlet @ 0 PSIG (14.7 PSIA)

Note: Outlet pressure must always be higher than inlet pressure. See page 5 for details.
