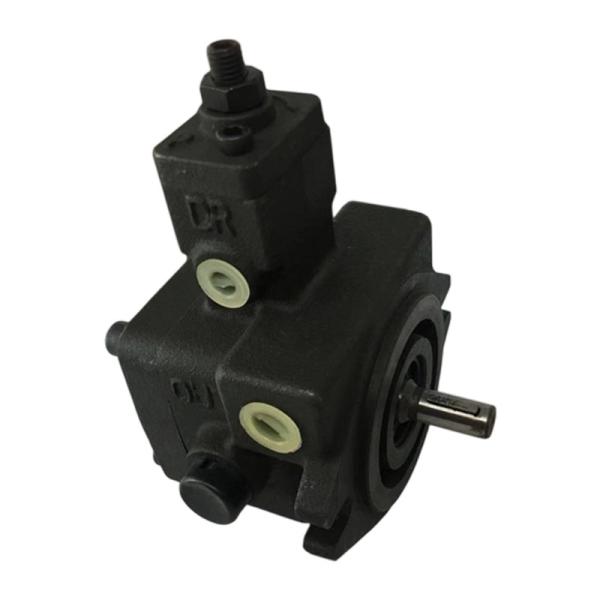

VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40
VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40
VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40
VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40
VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40
VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40
Specifications
Brand Name :
Seric
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
Model Number :
VP Series
Certification :
CE, ISO
Price :
Negotiable
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

VP Series Variable Displacement Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40

Features

  • Adopting the tehcnology of Finish Machining, With the function of displacement-control automatically and compensation under the setting pressure. High efficiency, low heat, energy-saving.
  • Low noise, quick reaction, working with high efficiency and good stability.
  • Not complex structure, convinient for operating and maintenance.
  • With Adjusting mechanism, the Flow and the Pressure of the Vane Pump can be adjusted freely, which are quite suitable for the industry of CNC lathe machine and shoe-making machine.
  • Long service life, robust structure, small body, space-saving, economic and durable, and it can be connected with Electric Motors directly.

Specifications

Model
 Flow
0.35Mpa 1800rpm
(L/min)		 Adjusting Pressure
(Mpa)		 Speed
(r/min)		 Rotation
(View from shaft)		 Input power
KW(HP)
1800r/min 1500r/min
VP-12-20 12 0.8-2.0 800-1800 Clockwise 0.37(0.5) 0.37(0.5)
VP-12-35 1.5-3.5 0.75(1) 0.55(1)
VP-12-55 3.0-5.5 1.1(1.5) 0.75(1)
VP-12-70 5.0-7.0 1.5(2) 1.5(2)
VP-15-20 15 0.8-2.0 0.5(1) 0.55(1)
VP-15-35 1.5-3.5 1.1(1.5) 0.75(1)
VP-15-55 3.0-5.5 1.5(2) 1.1(2)
VP-15-70 5.0-7.0 1.5(2) 1.5(2)
VP-20-20 20 0.8-2.0 0.75(1) 0.55(1)
VP-20-35 1.5-3.5 1.1(1.5) 1.1(2)
VP-20-55 3.0-5.5 1.5(2) 1.5(2)
VP-20-70 5.0-7.0 2.2(3) 2.2(3)
VP-30-20 30 0.8-2.0 1.1(2) 0.75(1)
VP-30-35 1.5-3.5 1.5(2) 1.5(2)
VP-30-55 3.0-5.5 2.2(3) 2.2(3)
VP-30-70 5.0-7.0 3.75(5) 3.0(5)
VP-40-20 40 0.8-2.0 1.5(2) 1.1(2)
VP-40-35 1.5-3.5 2.2(3) 2.0(3)
VP-40-55 3.0-5.5 3.75(5) 3.0(5)
VP-40-70 5.0-7.0 5.5(7.5) 4.0(5)
