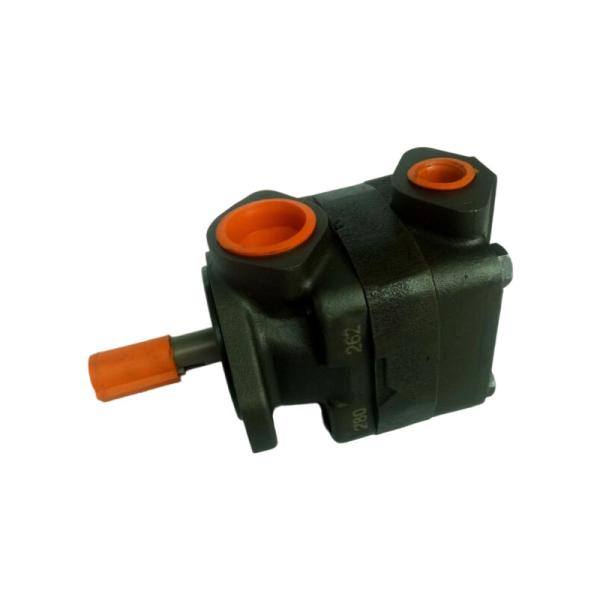

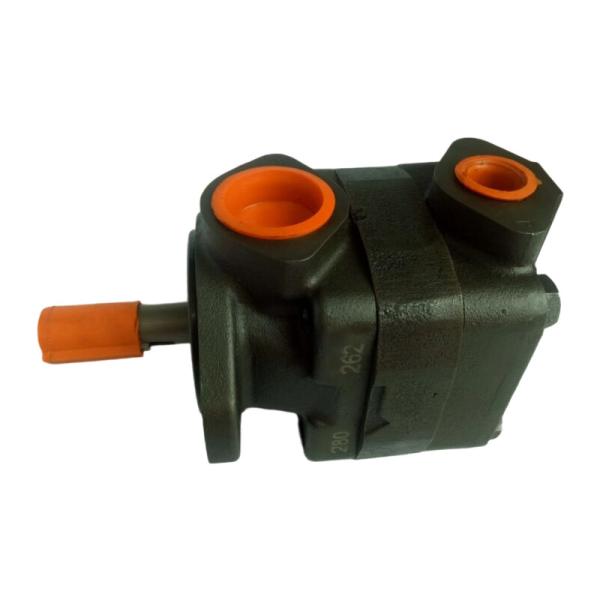

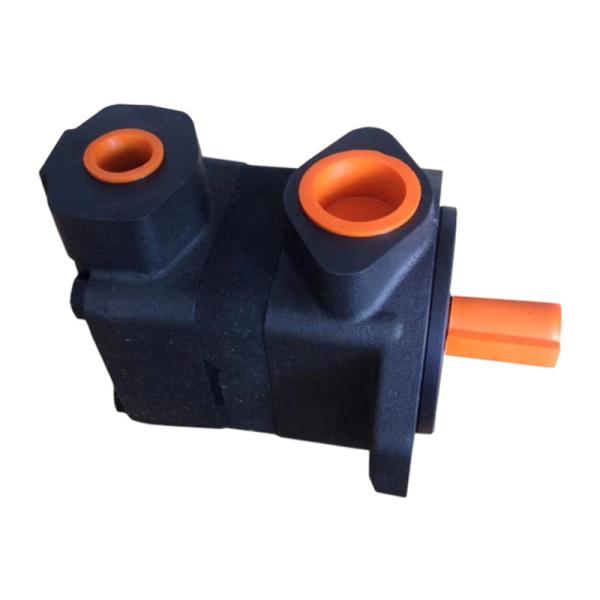

V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
Specifications
Brand Name :
Seric
Model Number :
V Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
USD50.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

V20 Series Hydraulic Vane Pump Single Pump

Features

Seric offers the most complete line of hydraulic pumps and motors for mobile and industrial applications.

V20 Type Single Pump Operating Specifications

Series U.S. GPM Displ.
(cm³/r)		 Max. Operating Pressure
(MPa)		 Max. Speed
(rpm)		 Min. Speed
(rpm)
V20 6 19.5 17.5 3400 600
7 22.8 17.5 3000
8 26.5 17.5 2800
9 29.7 17.5 2800
11 36.4 17.5 2500
12 39 16 2400
13 42.4 16 2400

V20 Type Single Pump-Model Code

V20
 -1 P 11 P -1 C 11 R
Series Mounting Inlet Port Connections U.S. GPM Outlet Port Connections Shafts Outlet Positions Design Number Rotaiton
V20 1-2 bolt flange

6-2 bolt flange
(SAE"B")		 P-1 1/4" NPT thd.
S-st. thd.		 6,7,8,
9,11,
12,13,		 P-1/2
NPT thd.
S-st.thd.		 1-str key
11-spline
38-spline 62-SAE A spline		 (viewed from cover end of pump)

A-Opposite inlet

B-900CCW from inlet

C-In line with inlet

D-900CW from inlet		 11 (Viewed from shaft end of pump)

R-Right hand for clockwise, omit

L-left hand for counterclockwise
