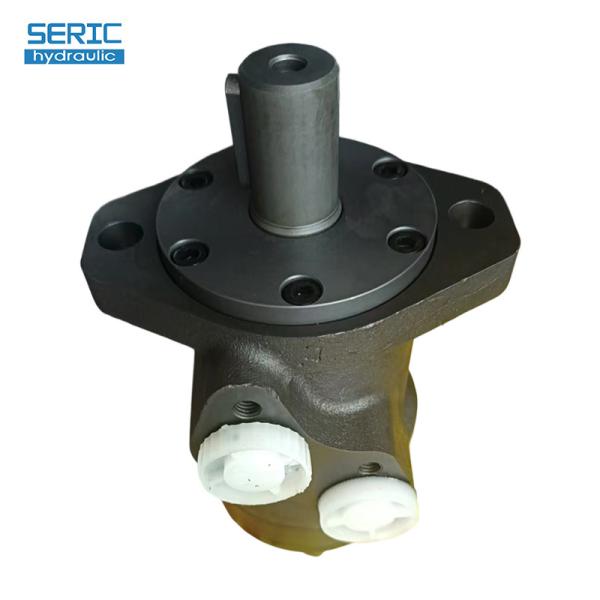

BM1 series cycloid hydraulic motor (can interchange with OMP series)
BM1 series cycloid hydraulic motor (can interchange with OMP series)
BM1 series cycloid hydraulic motor (can interchange with OMP series)
BM1 series cycloid hydraulic motor (can interchange with OMP series)
BM1 series cycloid hydraulic motor (can interchange with OMP series)
BM1 series cycloid hydraulic motor (can interchange with OMP series)
Specifications
Brand Name :
Seric
Model Number :
BM1 Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description
BM1 series cycloid hydraulic motor (can interchange with OMP series)

Features

BM1 motor is a small volume spool valve type motor.

Characteristic features:

  • Smooth running over the entire speed range
  • Constant operating torque over a wide speed range
  • Long life under extreme operating conditions
  • High return pressure without the use of drain line (High pressure shaft seal)
  • High efficiency
  • High starting torque
  • Robust and compact design
  • High radial and axial bearing capacity
  • For applications in both open and closed loop hydraulic systems
  • Suitable for a wide variety of hydraulics fluids

Specifications

Displacement (ml/r) 50 63 80 100 125 160 200 250 315 400
Flow
(LPM) 		Continuous 38 45 58 58 58 58 58 58 58 58
Intermittent 45 53 69 69 69 69 69 69 69 69
Speed
(RPM) 		Continuous 698 663 685 560 456 356 285 236 176 145
Intermittent 853 775 820 671 548 426 341 282 210 173
Pressure
(Mpa)		 Continuous 12.5 12.5 12.5 12.5 12.5 12.5 11 10 9 9
Intermittent 14 14 14 14 14 12.5 12.5 12.5 12.5 11
Torque
(N·m)
Continuous
 74 87 124 155 194 227 282 302 365 456
Intermittent 86 98 141 176 221 260 318 383 406 521


1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. The maximum working temperature is 80°.
5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa. A leaking pipe is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
