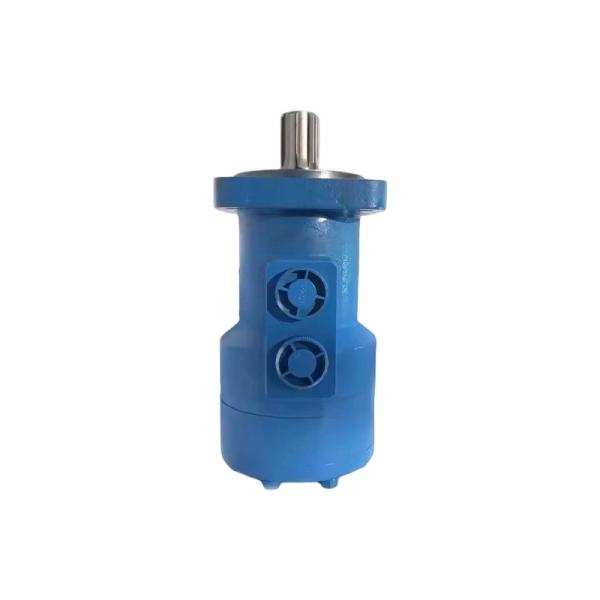

BM4 Series Cycloid Orbit Hydraulic Motor Interchangeable With OMH Series
BM4 Series Cycloid Orbit Hydraulic Motor Interchangeable With OMH Series
Specifications
Brand Name :
Seric
Model Number :
BM4 Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

BM4 Series Orbit Hydraulic Motor Interchangeable with OMH Series Cycloid Hydraulic Motor

Features

1. It adapts the gerolor design, which has a higher distribution accuracy and mechanical efficiency.

2. Double-rolling bearing design, which has a greater lateral load capacity.

3. Credible design of shaft seal, which can bear higher pressure and be used in parallel or in series.

4. Direction of shaft rotation and speed can be controlled easily and smoothly.

5. A variety of connection types of flange, output shaft and oil port.

Specifications

Displacement (ml/r)
 245 310 390 500 630 800
Flow
(LPM)		 Continuous 80 80 80 80 80 80
Intermittent 100 100 100 100 100 100
Speed
(RPM)		 Continuous 320 250 200 156 120 106
Intermittent 390 300 240 200 150 120
Pressure
(Mpa)		 Continuous 14 14 14 14 12.5 10
Intermittent 15 15 15 15 13 12
Torque
(N·m)		 Continuous 435 556 698 870 997 1024
Intermittent 502 664 798 1058 1178 1380

1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.

2. Motor should not work under the highest pressure and the maximum speed.

3. The running time should not exceed 10% under intermittent working conditions.

4. The maximum working temperature is 80°.

5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa. A leaking pipe is needed when exceeding.

6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.

7. Recommending N68anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
