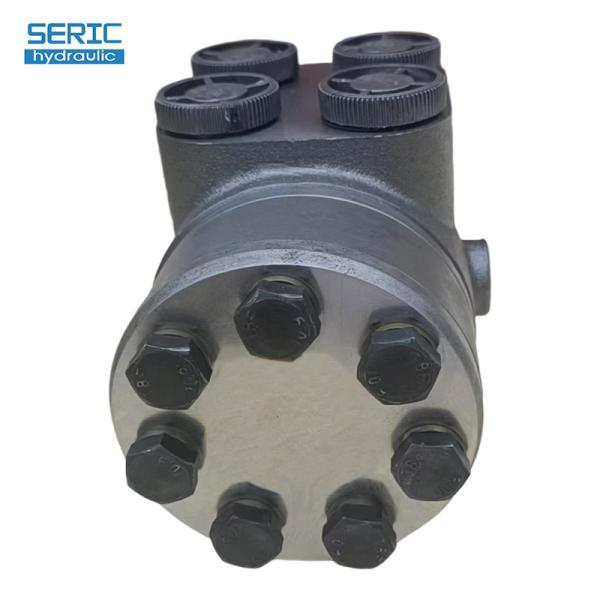

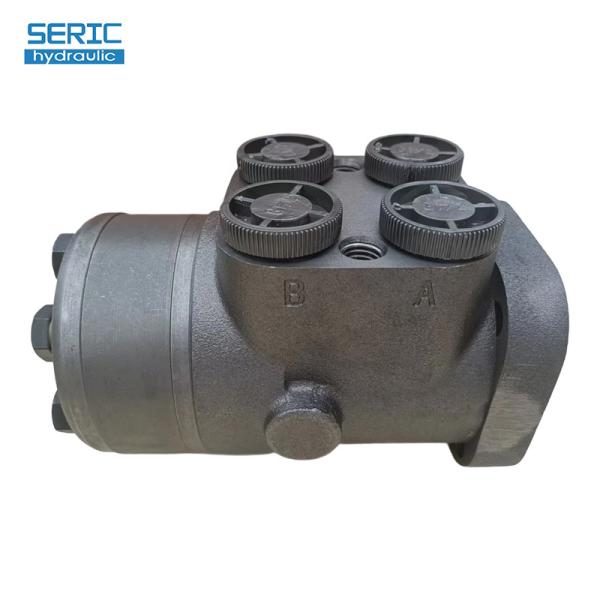

BZZ Series Cycloid Hydraulic Motor Orbital Motor
BZZ Series Cycloid Hydraulic Motor Orbital Motor
BZZ Series Cycloid Hydraulic Motor Orbital Motor
BZZ Series Cycloid Hydraulic Motor Orbital Motor
Specifications
Brand Name :
Seric
Model Number :
BZZ Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

BZZ Series Cycloid Hydraulic Motor Orbital Motor

Features

The BZZ1, BZZ2, and BZZ3 series of SCUs come with the following advantages:

Eliminating the need for mechanical linkage devices, these SCU series help reduce machinery costs while providing a reliable and lightweight structure.

These SCU series offer more flexible operation with low steering torque.

In the event of engine failure, these SCU series support emergency manual steering.

These SCU series allow for continuous-speed steering with reduced steering torque.

These SCU series are compatible with various hydraulic systems and offer diverse mounting options.

These SCU series can connect to a range of steering pumps and hydraulic steering systems.

Main Specification

Type Displacement
(mL/r)		 Flow
(L/min)		 Max.input pressure
(MPa)		 Max. cont. back pressure
(MPa)		 Weight
(kg)
BZZ□ - E50 * 50 4 16 2.5 4.72
BZZ□ - E63 * 63 5 4.85
BZZ□ - E80 * 80 6 5
BZZ□ - E100 * 100 7.5 5.27
BZZ□ - E125 * 125 9.5 5.43
BZZ□ - E160 * 160 12 5.75
BZZ□ - E200 * 200 15 6.08
BZZ□ - E250 * 250 19 6.48
BZZ□ - E280 * 280 21 6.78
BZZ□ - E315 * 315 24 7.13
BZZ□ - E400 * 400 30 7.78
BZZ□ - E500 * 500 38 8.67
BZZ□ - E630 * 630 48 9.72
BZZ□ - E800 * 800 60 11.18
BZZ□ - E1000 * 1000 75 12.8


Note 1: □Prepresents Function Code, BZZ2 can be chosen for SCU with the displacement of 50-200mL/r. BZZ1 or BZZ3 can be chosen for SCU with the dispplacement of 50-1000mL/r.

Note 2: "Flow" that we suggest to use is the flow of 1.25 times as much as that at the steering wheel's rotation speed of 60 r/min. If the design of the system can't meet the requirements, the flow is allowed to be adjusted a little bit.

Order Code

BZZ Series Cycloid Hydraulic Motor Orbital Motor

BZZ Series Cycloid Hydraulic Motor Orbital Motor
