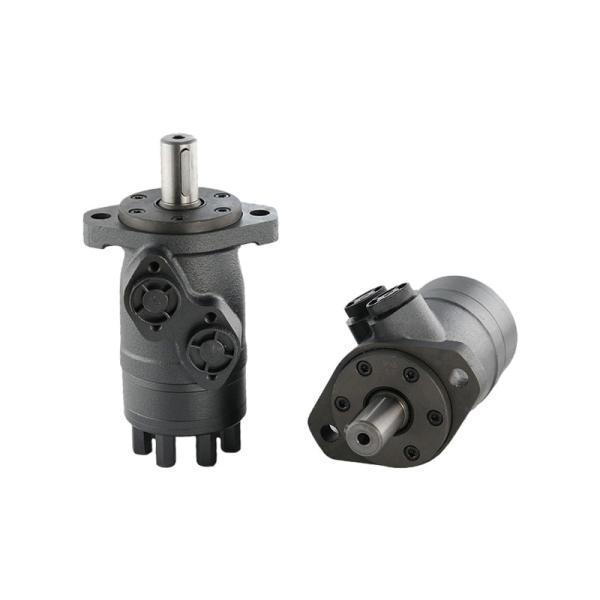

BM1 Series Cycloid Hydraulic Orbit Motor Interchangeable With OMP Series
BM1 Series Cycloid Hydraulic Orbit Motor Interchangeable With OMP Series
Specifications
Brand Name :
Seric
Model Number :
BM1 Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description
BM1 series cycloid hydraulic motor (can interchange with OMP series)

Features

BM1 motor is a small volume spool valve type motor.
Characteristic features:
1.Compact design,which provide small volume,high power and low weight.
2.Credible design for shaft seal, which can bear high pressure and be used in parallel or in series.
3.Direction of shaft rotation and speed can be controlled easily and smoothly.
4.Best combination of efficiency and economy in medium load applications.

Specifications

Displacement (ml/r) 50 63 80 100 125 160 200 250 315 400
Flow
(LPM) 		Continuous 38 45 58 58 58 58 58 58 58 58
Intermittent 45 53 69 69 69 69 69 69 69 69
Speed
(RPM) 		Continuous 698 663 685 560 456 356 285 236 176 145
Intermittent 853 775 820 671 548 426 341 282 210 173
Pressure
(Mpa)		 Continuous 12.5 12.5 12.5 12.5 12.5 12.5 11 10 9 9
Intermittent 14 14 14 14 14 12.5 12.5 12.5 12.5 11
Torque
(N·m)
Continuous
 74 87 124 155 194 227 282 302 365 456
Intermittent 86 98 141 176 221 260 318 383 406 521

1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. The maximum working temperature is 80°.
5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa. A leaking pipe is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
