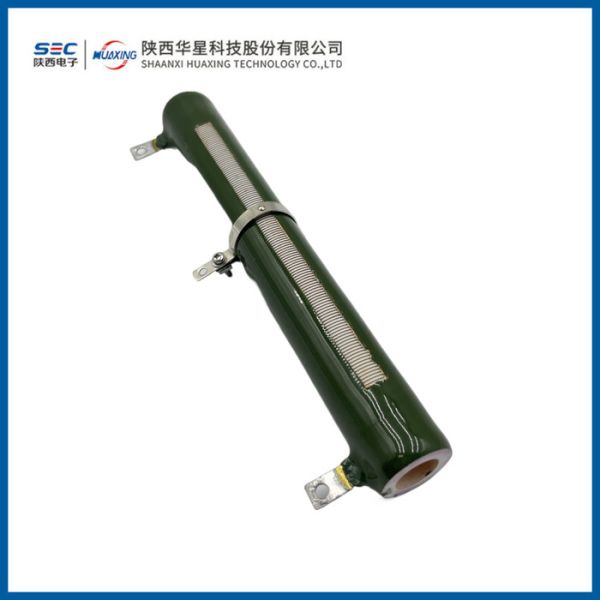

RXG20T Enamelled Wirewound Resistor

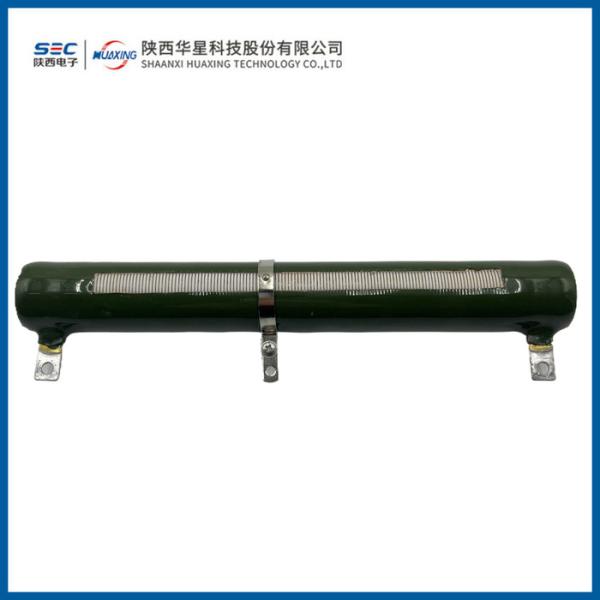

RXG20T Enamelled Wirewound Resistor

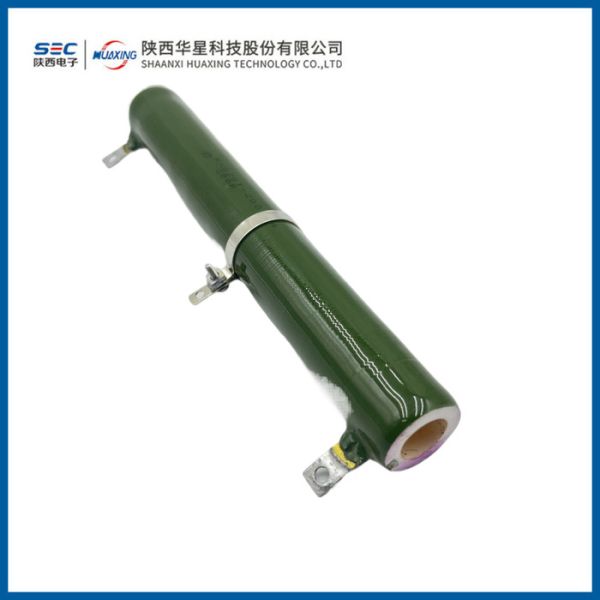

RXG20T Enamelled Wirewound Resistor
RXG20T Enamelled Wirewound Resistor
RXG20T Enamelled Wirewound Resistor
RXG20T Enamelled Wirewound Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXG20T
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T
Description

RXG20T enamelled wirewound resistor

Product Introduction

■ Product Features: Equipped with dedicated accessories (optional), easy to install. Excellent high-temperature load characteristics. Enamel-coated surface, strong pollution resistance, moisture-resistant, chemically inert, and high-temperature resistant.

■ Application Area: Used in direct current or low-frequency alternating current circuits for voltage division, current division, and load purposes.

■ Product Standard: Detailed specifications for RXG20(T) Enamel Power Wirewound Resistor according to Q/RW324-1992.

■ Capable of producing products compliant with RoHS, REACH, and three-proof requirements.

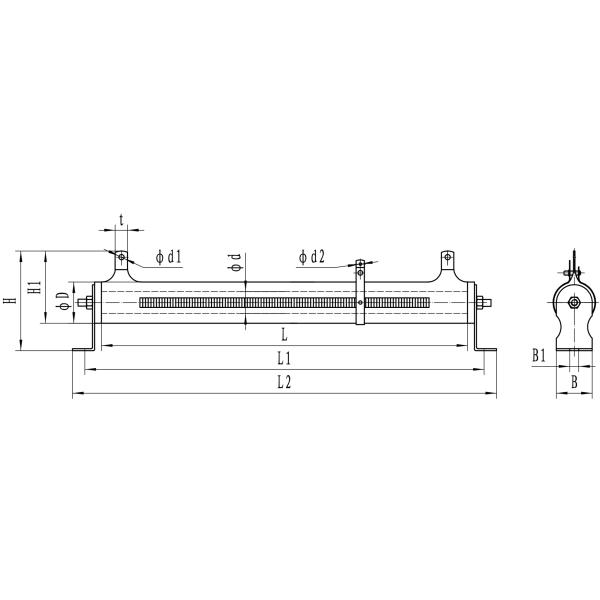

Size:

RXG20T Enamelled Wirewound Resistor

specifications and models rated power(W) resistance range(Q) Size ( m m )
L L1 L2 D d H H1 d1 t d2 B B1
RXG20T-200W 200 5.1～3K 215±3 247±4 259±4 38±3 25±1.5 84±3 58±2

4

9

 3 35 6.5
RXG20T-250W 250 5.1~3K 266±3 296±4 308±4 30±2 16±0.8 71±2 50±2 2 26 6.5
RXG20T-300W 300 5.1～3K 266±3 298±4 310±4 36±2 22±1.2 82±3 58±2 35 6.5
RXG20T-400W 400 6.2~3K 250±2 280±3 298±4 54±2 30±2 98±3 79±3 8 16 3 50 6.5
RXG20T-500W 500 6.2~3K 300±2 330±3 348±4 54±2 30±2 98±3 79±3 50 6.5

Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Insulation Resistance Voltage: (500±50)Vdc, 1min, foil method 1GΩ GB/T 5729-1985 Section 4.6
Dielectric Strength Voltage: 3500Vdc, 1min, between lead-out end and mounting component No breakdown, no arcing GB/T 5729-1985 Section 4.7
Shock Acceleration: 147m/s², Time: 11ms, half-sine wave 18 times △R ≤ ±(2%R + 0.05Ω) GB/T 2423.05-1981
Vibration Frequency: (10-500)Hz, Amplitude 0.75mm or Acceleration 98m/s², 6h △R ≤ ±(2%R + 0.05Ω) GB/T 2423.10-1981
Temperature Rapid Change Temperature Range: (-55+200)℃, 5 cycles △R ≤ ±(2%R + 0.05Ω) GB/T 2423.22-1981
Steady-state Damp Heat Temperature: (40±2)℃, Relative Humidity: (93±3)%, 96h △R ≤ ±(5%R + 0.1Ω) GB/T 2423.03-1981
Room Temperature Durability Ambient Temperature: (15~35)℃, rated power, 1.5h powered; 0.5h unpowered, 96h △R ≤ ±(5%R + 0.1Ω) GB/T 5729-1985 Section 4.25

Power dissipation curve

RXG20T Enamelled Wirewound Resistor

Temperature rise curve

RXG20T Enamelled Wirewound Resistor

Ordering Example:

Model Number :RXG20T

Rated Power:200W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
