RXYMB Enamelled Wirewound Resistor
RXYMB Enamelled Wirewound Resistor
RXYMB Enamelled Wirewound Resistor
RXYMB Enamelled Wirewound Resistor
RXYMB Enamelled Wirewound Resistor
RXYMB Enamelled Wirewound Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RXYMB
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T
Description

RXYMB enamelled wirewound resistor

Product Introduction

  • Product Features: Axial threaded hole for bolt installation. Strong overload capacity, good thermal stability. Glazed surface, strong anti-pollution ability, resistant to moisture, chemical gas erosion, high temperatures.
  • Application Areas: Used in the equalizing, current-sharing, and discharge circuits of metallurgy and large high-voltage power equipment.
  • Non-inductive products can be provided through negotiation, with "N" added before the model number.
  • Products meeting RoHS and REACH requirements can be produced.

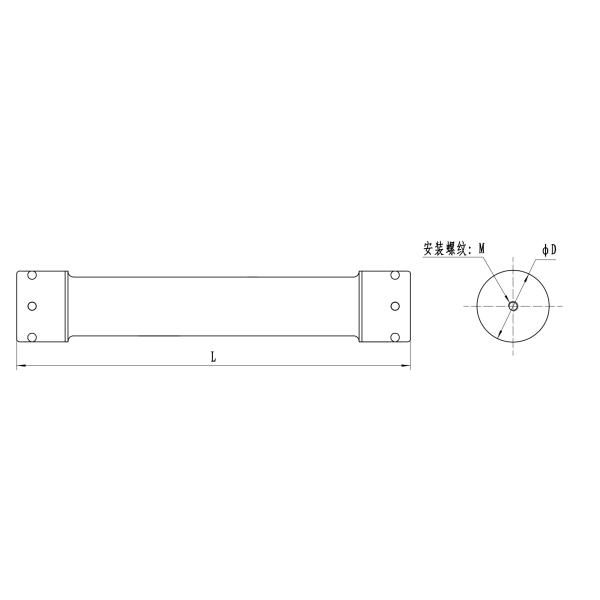

Size:

RXYMB Enamelled Wirewound Resistor

specifications and models rated power(W) resistance range(Q) Size ( m m )
L D M
RXYMB-75W 75 20R～2K 135±2 25±1 M4
RXYMB-100W 100 20R～2.7K 205±2
RXYMB-150W 150 20R～3K 225±2
RXYMB-200W 200 20R～3.6K 245±2
RXYMB-300W 300 20R～3.9K 265±2
RXYMB-Ⅰ-300W 300 20R～5.6K 288±3 38±2 M5

Ordering Example:

Model Number :RXYMB

Rated Power:100W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
